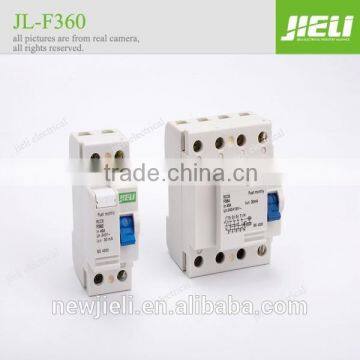

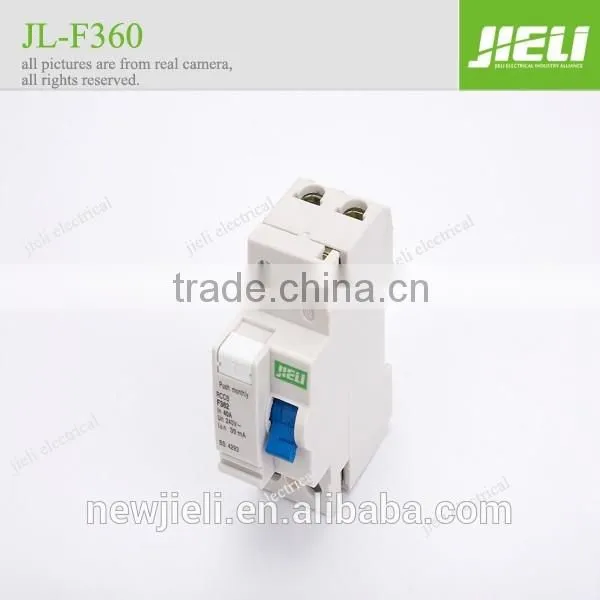

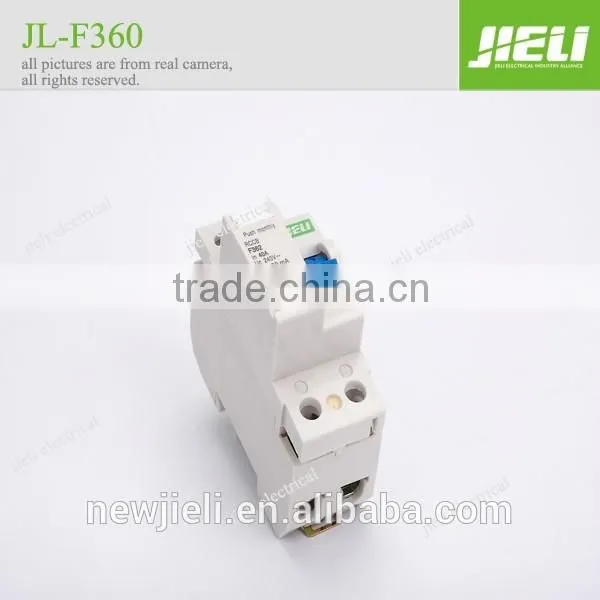

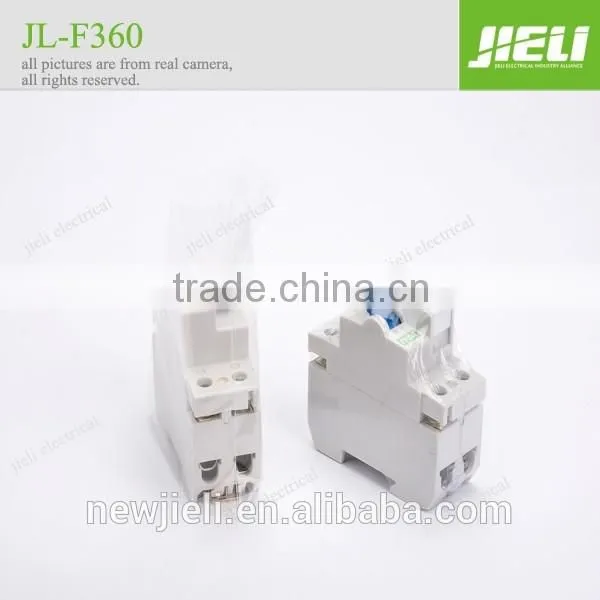

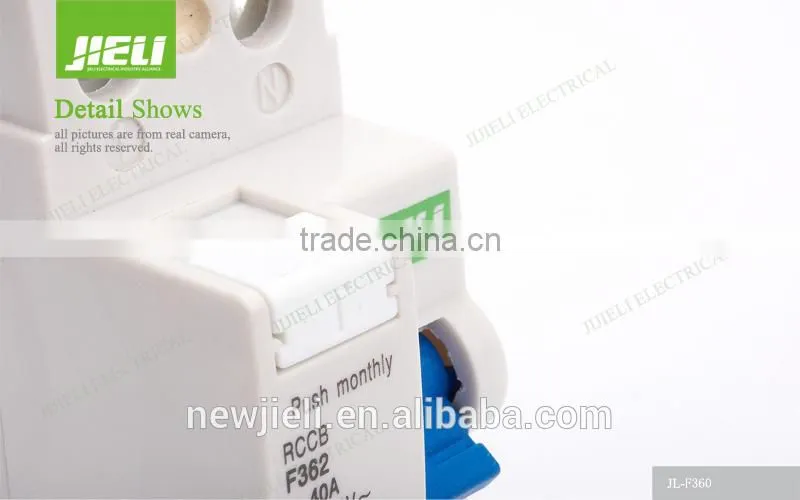

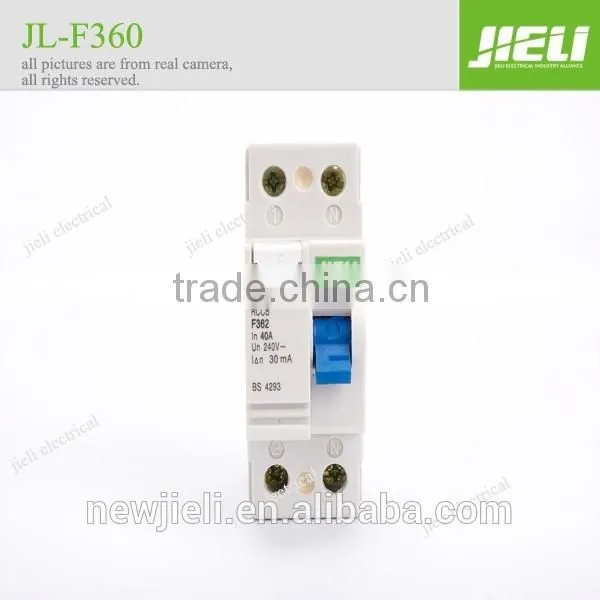

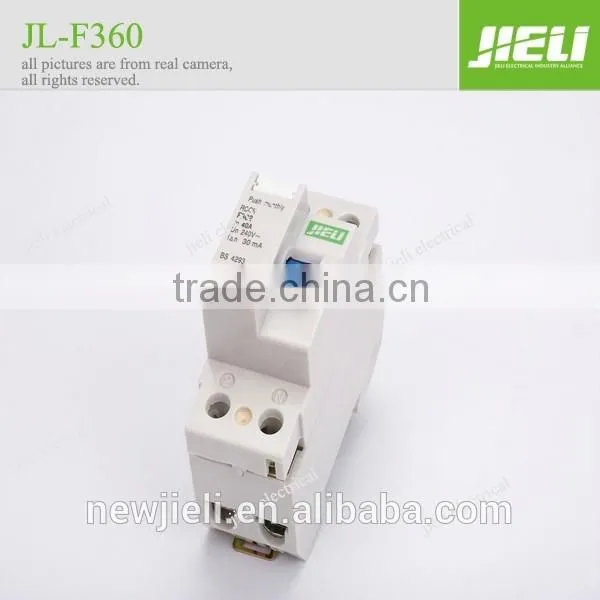

F360 Earth Leakage Circuit Breaker ELCB

Name: F360 Earth Leakage Circuit Breaker ELCB
Brand: Jieli
SKU: 117777313
Availability: InStock

US$ 0.32 - 1.2 MOQ: 1200 Poles

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Jieli

Model Number:

Jl- F360

Zhejiang Jieli Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Jieli

Model Number Jl- F360

Type Earth Leakage

Poles Number 2

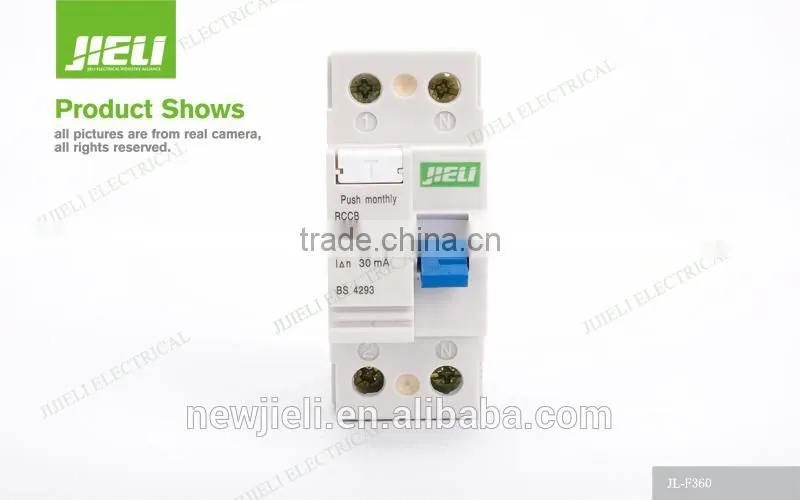

F360 earth leakage circuit breaker ELCB

Product Description

Construction and Feature
1)Provides protection against earth fault/leakage current and function of isolation.
2)High short-circuit current withstand capacity
3)Applicable to terminal and pin/fork type busbar connection
4)Fire resistant plastic parts eeendures abnormal heating and strong impact.
5)Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
6)Independent of power supply and line voltage , and free from external interference, voltage fluctuation.
Technical Data
7)Mode :Electro-magnetic type , electronic type
8)Residual current characteristics : A , AC

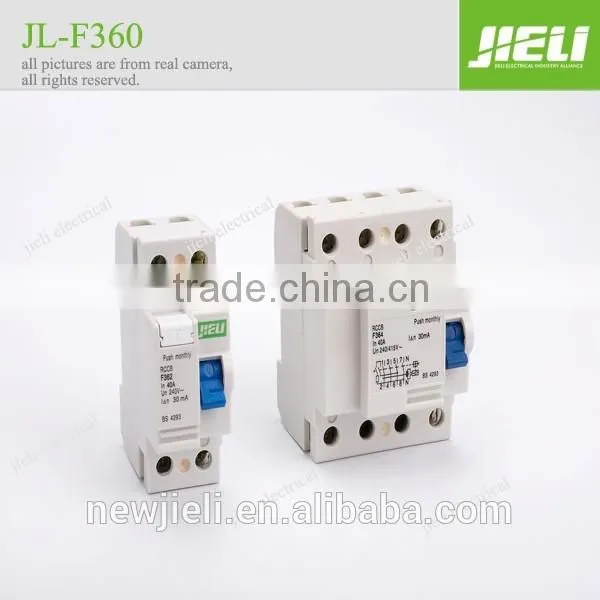

9)Pole No. : 2,4
10)Rated making and breaking capacity : 630A
11)Rated current(A) : 1-63A
12)Rated Voltage : 230/415V AC
13)Rated frequency : 50/60Hz
14)Rated residual operating current IΔn(A) : 0.03,0.1,0.3,0.5
15)Rated residual non operating current IΔno: 0.5IΔn
16)Rated conditional short-circuit current Inc : 6KA
17)Rated conditional residual short -circuit Current I Δ c : 6KA
18)Tripping duration : Instantaneous tripping≤0.1s
19)Residual tripping current range : 0.5I Δ n~IΔn
20)Electro-mechanical enduarance : 4000 cycles
21)Connection capacity : Rigid conductor 25mm2
22)Terminal connection Height : 12mm

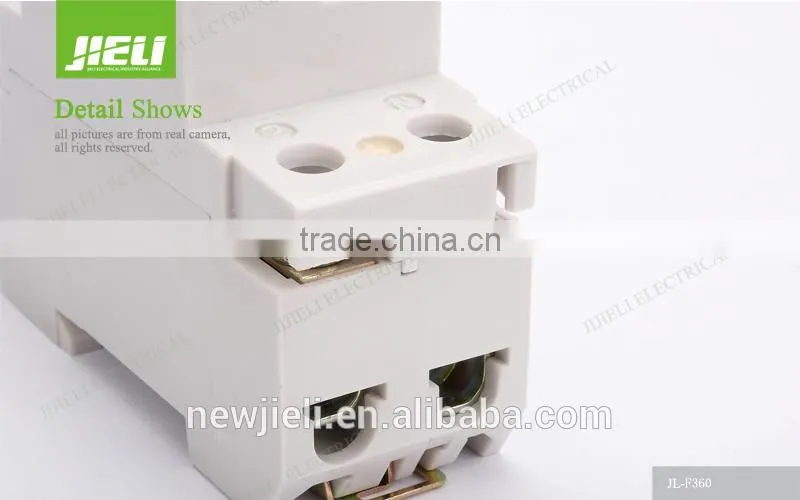

23)Connection terminal : Screw terminal, Pillar terminal with clamp .
24)Fastening torque : 2.0Nm

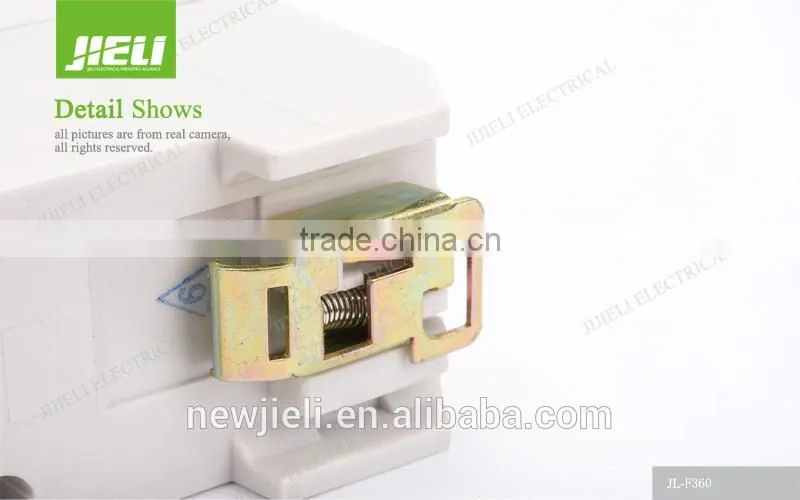

25)Installation : On symmetrical DIN rail 35mm, Panel mounting .

Packaging & Shipping

Packaging	12pcs/inner box, 120pcs/carton
Samples	1) Hand sample time: within 7-15 days
	2) sample charge: according to product details 3) sample refund: Negotiable
	4) send sample: Via TNT, UPS,FedEx,DHL Express
	sample free provide if you need our stock for check the quality.
Payment	T/T, Western Union
Delivery Time	7-30 days according to quantity
Shipping Port	Ningbo/Shanghai Port
