Help CenterF130,F133 RAIL FISHPLATE
US$ 5 - 30
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Type:
Other, RAIL FISHPLATE
Material:
GRADE 700
Dimensions (L x W x H) (mm):
ACCORDING TO STANDARDS AND CUSTOMERS' REQUIREMENTS
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Other, RAIL FISHPLATE
Material
GRADE 700
Dimensions (L x W x H) (mm)
ACCORDING TO STANDARDS AND CUSTOMERS' REQUIREMENTS
Place of Origin
Henan, China
Brand Name
LT
Model Number
F130 RAIL FISHPLATE,F133 RAIL FISHPLATE,F141 RAIL FISHPLATE
Specifications
DIN RAIL FISHPLATE STANDARD:DIN5902:1995.MODEL:F130 RAIL FISHPLATE,F133 RAIL FISHPLATE,F141 RAIL FISHPLATE,F149 RAIL FISHPLATE
We specialize in producing all kinds of railway products such as rail fishplates,fish bolts,gauge aprons,screw spikes,elastic clips,rubber tie plates,gauge ties,etc.
We are always keeping providing better products and higher-class service to satisfy our customers.

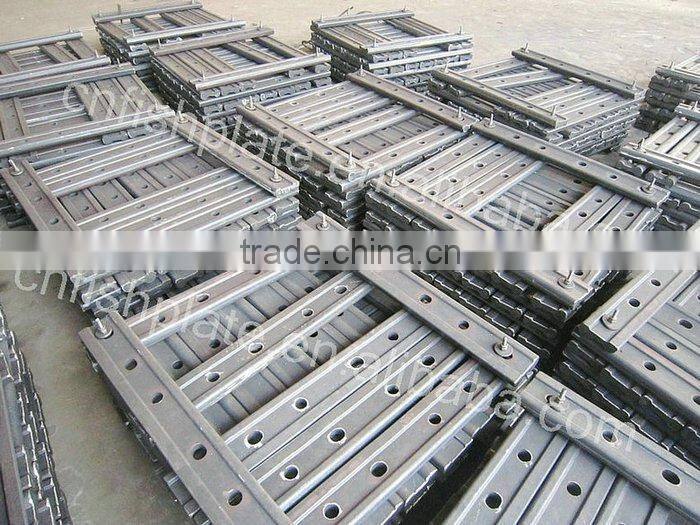

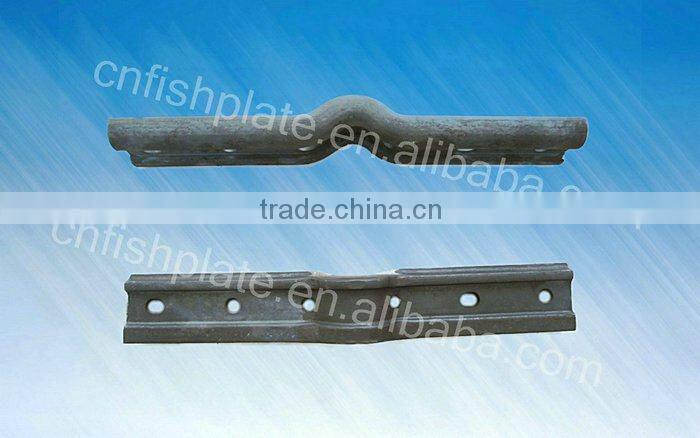

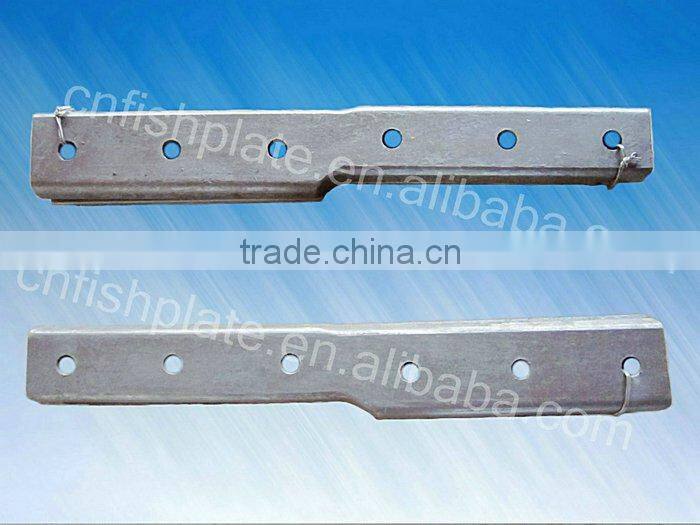

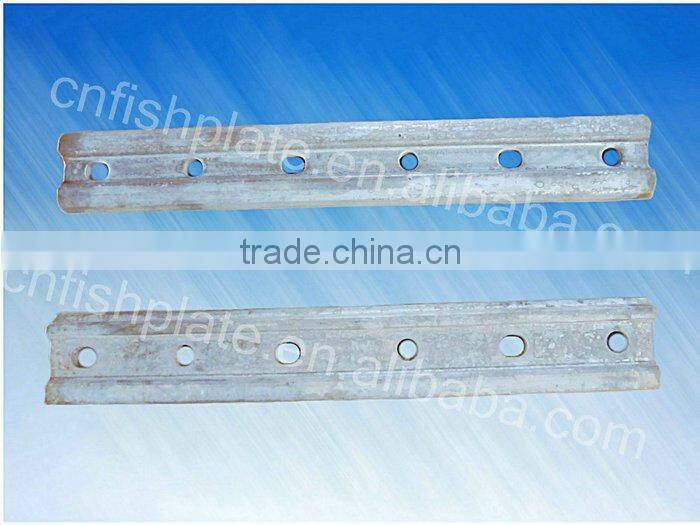

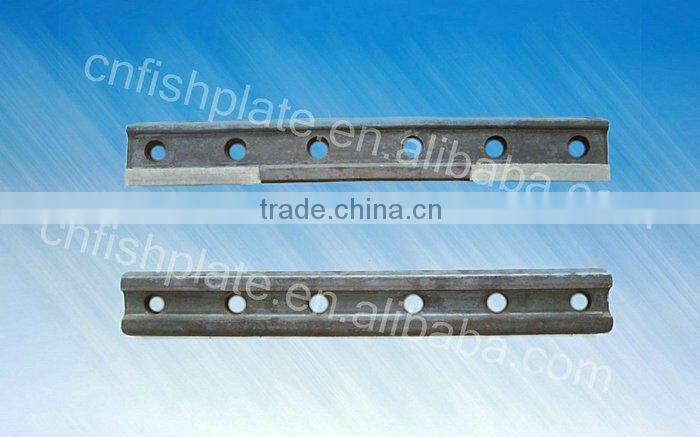

Rail fishplates are used to joint or connect two rails together, and rail fishplates are also called as rail fishplates or rail rail fishplates.
Rail fishplates we can provided as below:
DIN standard RAIL FISHPLATE:F130 RAIL FISHPLATE,F133 RAIL FISHPLATE,F141 RAIL FISHPLATE,F149 RAIL FISHPLATE.
| CHINESE STANDARD RAIL FISHPLATE | |||||||||
| SIZE | STANDARD | MATERIAL | |||||||
| 43KG | TB/T2345-2008 | B7 | |||||||
| 50KG | |||||||||
| 60KG | |||||||||
| 75KG | |||||||||
| BS STANDARD RAIL FISHPLATE | |||||||||
| SIZE | STANDARD | MATERAIL | |||||||
| BS75R | BS47-1 | EUROPEAN GRADE 700 | |||||||
| BS80A | |||||||||
| BS90A | |||||||||
| BS100A | |||||||||
| BS113A | |||||||||
| RAIL FISHPLATE FOR JIS E STANDARD RAIL | |||||||||
| RAIL SIZE | RAIL FISHPLATE STANDARD | RAIL FISHPLATE MATERIAL | |||||||
| 37A | JIS E 1102-2001 | SS490,S20C | |||||||
| 50N | |||||||||
| CR73 | |||||||||
| CR100 | |||||||||
| RAIL FISHPLATE FOR AREMA 2007 STANDARD STEEL RAIL | |||||||||
| T-RAIL | STANDARD | MATERIAL | HOLE DIAMETER | ||||||
| 100LB.ASCE | AREMA 2007 | AREMA GRADE/STEEL GRADE 55# | 1.1875" | ||||||
| 115RE | 1.1876" | ||||||||
| 132RE | 1.13125" | ||||||||
| 136RE | 1.13126" | ||||||||
| RAIL FISHPLATE FOR CRANE RAIL | |||||||||
| 104LB.CR | AREMA 2007 | AREMA GRADE/STEEL GRADE 55# | 1.0625" | ||||||
| 105LB.CR | 1.3125" | ||||||||
| 135LB.CR | 1.1875" | ||||||||
| 171LB.CR | 1.1875" | ||||||||
| 175LB.CR | 1.1875" | ||||||||
| STANDARD LENGTH:914.4MM | |||||||||
| THE BOLT HOLES ARE EITHER DRILLED OR PUNCHED,WITH 4 AND 6 HOLES AVAILABLE. | |||||||||
| RAIL FISHPLATE FOR UIC STANDARD STEEL RAIL | CORRESPONDING RAIL | ||||||||
| SIZE | WEIGHT(KG/M) | DIMENSION(MM) | MATERAIL | SIZE | WEIGHT(KG/M) | STANDARD | |||
| a | b | c | X | ||||||
| U79 | 23.92 | 109 | 27 | 41 | 2.75 | GRADE 700 | UIC54 | 54.43 | UIC |
| 2.75 | |||||||||
| U85 | 29.68 | 121 | 24 | 45 | 2.75 | GRADE 700 | UIC60 | 60.34 | UIC |
| 2.75 | |||||||||
| FISHED JOINT STANDARD:UIC864-4 STANDARD,UIC864-8 STANDARD | |||||||||
| RAIL FISHPLATE FOR DIN STANDARD STEEL RAIL | CORRESPONDING RAIL | ||||||||
| SIZE | WEIGTH(KG/M) | DIMENSION(MM) | MATERAIL | SIZE | WEIGHT(KG/M) | STANDARD | |||
| a | b | c | x | ||||||
| y | |||||||||
| F130 | 9.6 | 70 | 16 | 21 | 4.33 | GRADE 700 | S30 | 30.03 | DIN5901 |
| 4.33 | |||||||||
| F133 | 12.7 | 91 | 18 | 20 | 4 | GRADE 700 | S33 | 33.47 | DIN5901 |
| 4 | |||||||||
| F141 | 15.7 | 94 | 20 | 31 | 3 | GRADE 700 | S41 | 41.38 | DIN5901 |
| F149 | 3 | S49 | 49.43 | ||||||
| RAIL FISHPLATE STANDARD:DIN5902:1995 | |||||||||
