Specifications
Multifunction Piping Fitting Up MachineSuitable for pipe-various of fittings to fit up
labor cost reduction input,high effici
Piping Fabrication Fast Fitting-up Machine (Multifunctional Piping Fitting Up Machine)
Model: PPFUM-16A2; PPFUM-24A2; PPFUM-32A2
Applicable Industry: Oil & Gas, Refinery, Petrochemical, Petroleum, Chemical Industy, Onshore & Offshore, Marine Engg, Shipbuilding & Shipyard, Thermal & Nuclear Power Plant, Boiler, Heat Exchanger Refrigeration, Medical, Voyage, Pressure Vessel, Foodstuff Machinery, Atomic Power, Beverage etc.
Reference List: L & T, KSS, TECHNIP, KEPPEL, CCC, TYCO, CHIYODA, DYNA-MAC, CSCEC, CNPC, SINOPEC, CNOOC, CNCEC, CSIC, CSSC, ASL etc.
Performance features
Fit-up and tack welding the straight pipe with fittings such as flange, elbow, tee etc directly
Increasing the efficiency and quality of pipe to fittings such as flange, elbow, tee etc fitting-up
Needing fewer skills for fitting up pipes and flanges and reducing work difficulty for the operators
Application Range: Used for standard wall thickness pipes & fittings OR heavy wall thickness pipe & fittings ( As per request)
Technical parameters
Pipe diameter applicable: DN50-400 (2-16 inch; DN150~600mm (6~24 inch); DN200-800mm (8-32 inch); or custom made acc to requirements
The longest pipe: 12m or 6M (or depend on the situation)
Fitting-up system: 2 sets
Moving up/down: with screw lifter, driven electrically
Moving left/right: linear guiding rail, driven & movement electrically
Vertical turnover: with screw lifter, driven electrically
Lengthwise moving: motorized driving Hexagonal steel track
Max loading capability: 750KG/1000KGS/1500KGS (or depend on the situation)
Bracket system: 2 sets
Max loading capability: 2,500KGS; 3500KGS; 5000KGS (or depend on the situation)
Lengthwise moving: manually driving
Track system: 1 set
Track length: 7.5M or 10M (or depend on the situation)
Track type: Hexagonal steel track
Welcome to you contact with us to get more informations.
Learn more informations pls ref to website:

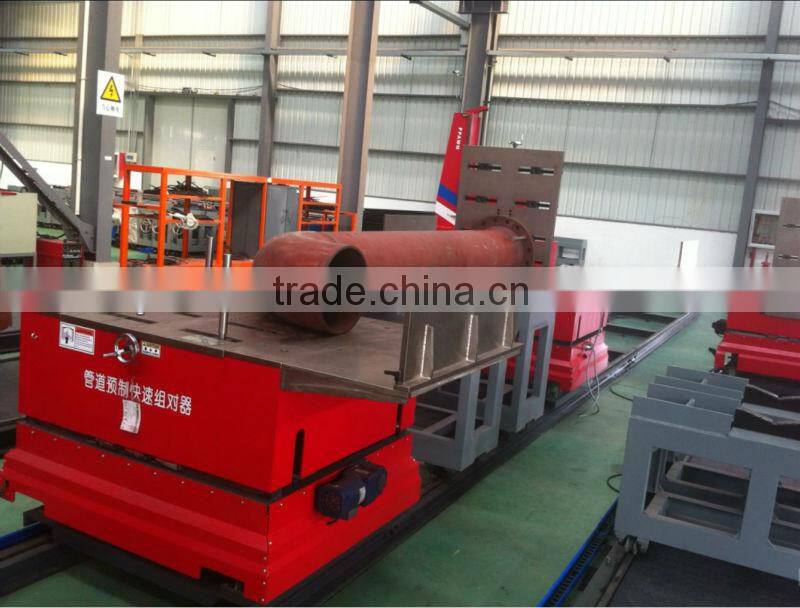

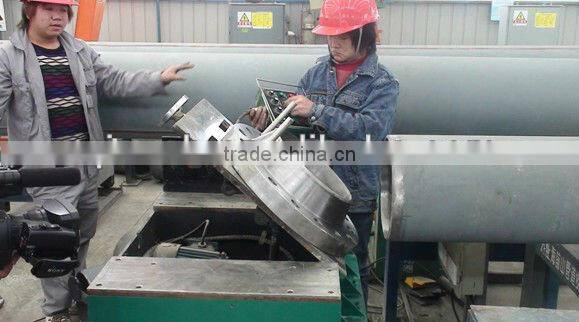

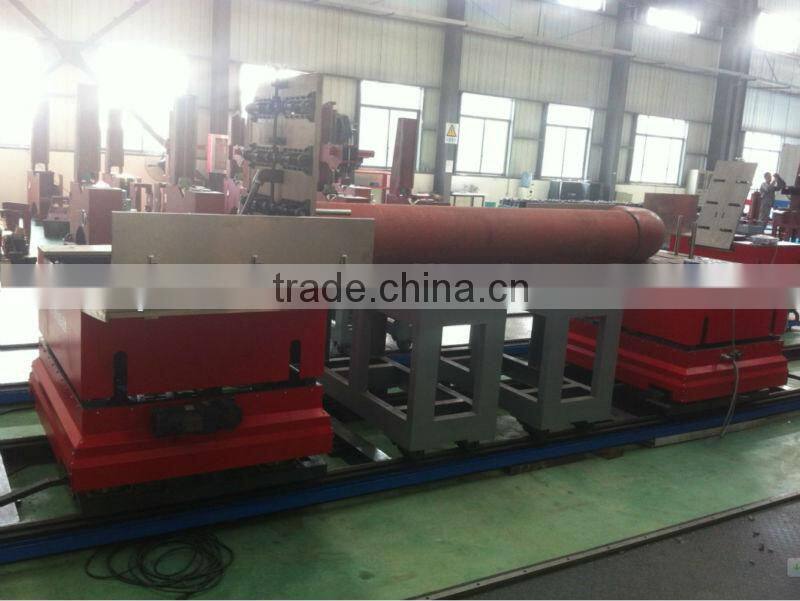

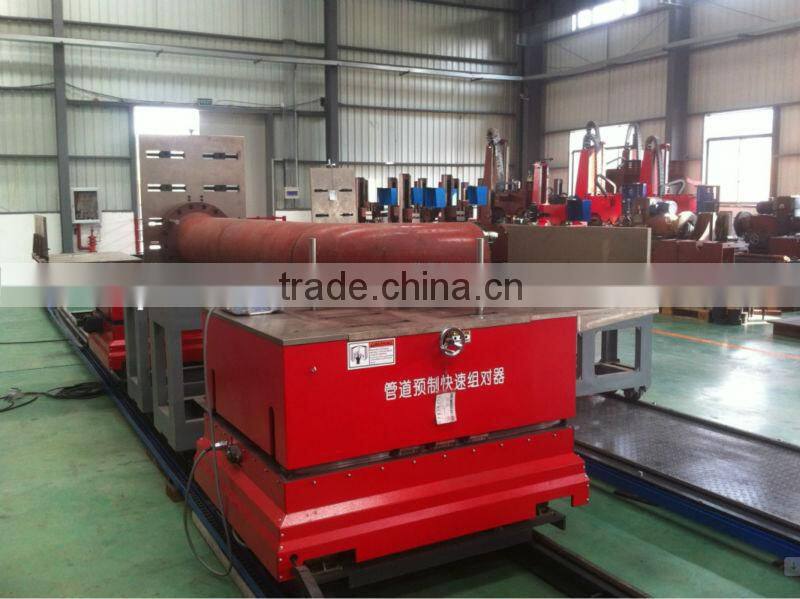

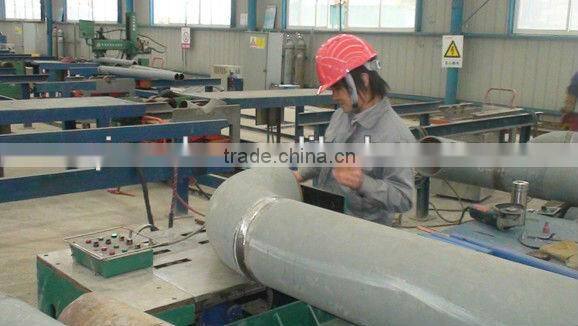

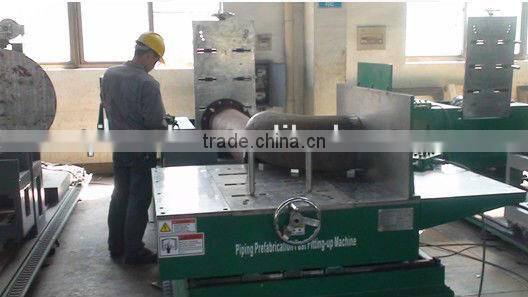

Reference Photos:
