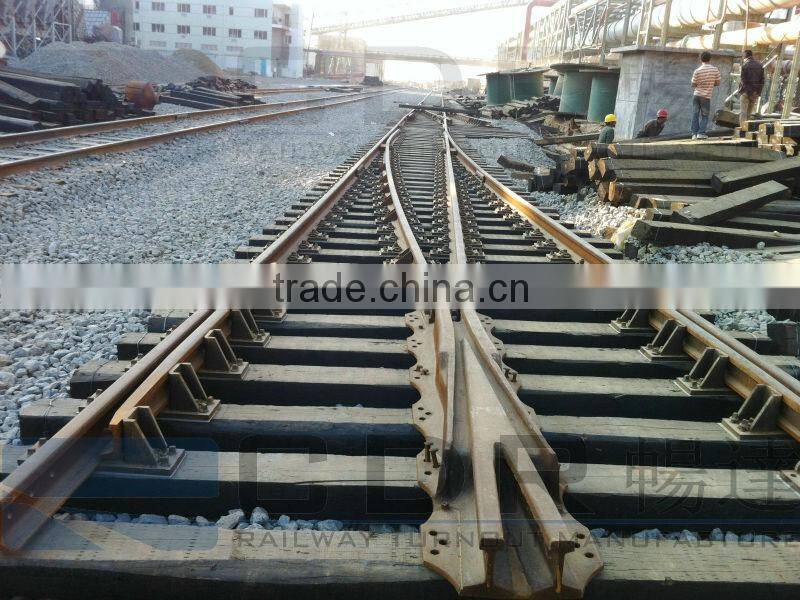

We can provide one-stop railway switch manufacture service including design, manufacture, field installation, after-sale serviceWe, Linzhou Changda railway Material Co., Ltd., can produce and customize railway switches widely used for railway, mining, tunneling project, industrial special rails, coke plant, port etc. And standard railway switches are available as below:
1. The types of railway switches :
simple switch
lateral switch
left hand switch
right hand switch
bilateral switch
Symmetrical switch
symmetrical double curve switch
symmetrical double switch
symmetrical three throw switch
three-way switch
two-sided double switch
scissors crossover
scissors crossing
double crossover
double slip switches
diamond crossing
unsymmetrical double switch
unsymmetrical three throw switch
unsymmetrical three-way switch
one-sided double switch
2. The specifications of railway switches:608, 612, 615, 715, 915, 618, 718, 918, 622, 722, 922, 624, 724, 924, 630, 730, 930, 938, 643 and other non-standard ones.
3. railway guage:600mm,762mm,900mm,1435mm and other foreign ones.
4. Rail:
Light rail: 8kg / m, 12kg / m, 15kg / m, 18kg / m, 22kg / m, 24kg / m, 30kg / m
Heavy rail: 38kg / m, 43kg / m, 50kg / m, 60kg / m, 75kg / m.
Crane rail: QU70, QU80, QU100, QU120.
5. Frog number : 2,3,4,5,6,7,8,9,12
6. curve radius: 4,6,9,12,15,20,25,30,40,50,70 and all other radiuses.
7. Center spacing:1200mm,1300mm,1400mm,1500mm,1600mm,1700mm,1800mm,1900mm,2200mm,2500mm and all other spacings.
And we can design and manufacture the railway switches according to the different requirements of production site and construction site, and if you can give the requirements as below:
1. What rail
2. Rail gauge
3. Center spacing
4. Frog type (solid manganese steel frog or bolted rigid frog) and frog angle
5. The radius of lead curve
6. The required total length
7. The axle load and the speed of the locomotive
Then we can design and customize the railway switches to your special requirements.
