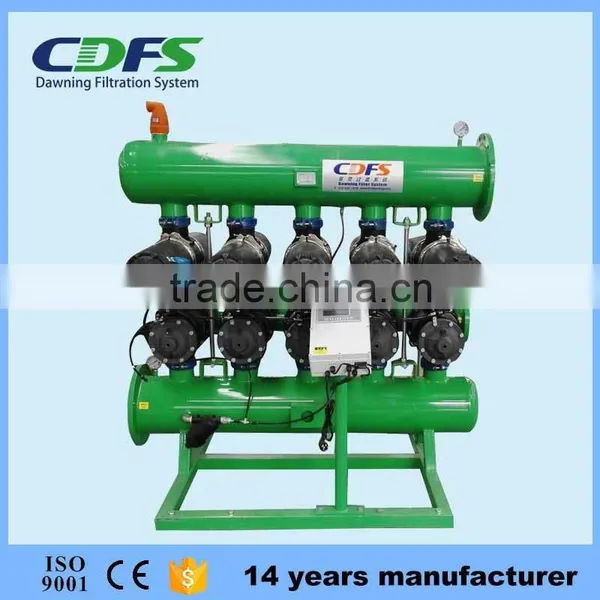

OEM/ODM100 micron automatic back washing disc filters aquarium water filter
Product General
Principle descriptions (The video of principle)
Technical parameters
| Model | DLLF-4-7 |
| Design pressure | 1.0Mpa |
| Backwash pressure | 0.2Mpa(min) |
| Flow | 300m3/h |
| Filtration units | 7 |
| Size of filtration units | 4" |
| Filtration range | 100 micron |
| Power supply | 240 v / 50 Hz , AC24V |
| Control modes | Pressure difference/time/manual/PLC |
| Pipe material | Carbon steel(304 stainless steel/316L/plastic are also available) |
| Filtration units material | Nylon |
| Main accessories | Pipeline;filtration units;differential pressure transducer ;triple backwash valve;air release valve;control box etc. |
Product model selecting
When you are choosing automatic screen filters, please consider the following parameters:
1. Flow capacity( Pipe diameter)
2. Filtration range
3. Shell material
4. Pipeline pressure
5. Chemical properties of the filter medium
6. Suspended solids(SS) concentration of filter medium
Filtration range selecting
| Main application | Filtration precision(micron) |
| Pretreatment of good quality | 20 |
| Pretreatment of drinking water; production process;protecting nozzle |
50
|
| Circulating water; |
100
|
| Agricultural irrigation | 120 |
| Wastewater treatment; reclaimed water treatment | 200 |
Picture show
Actual case:
1.Dawning Environmental Protection Technology Co., LTD.is a emerging technology company specialized in environmental water treatment. Our factory covers an area of 13000 square which is domestic largest water filter production base.
2. The main products have self-cleaning filter,disc filter,sand filter etc.
3. We have a few professional engineers with over ten years experience in water filtration technology.
4. Our products have been widely used in circulating water,Ro pretreatment,agriculture irrigation,wastewater treatment and so on.
