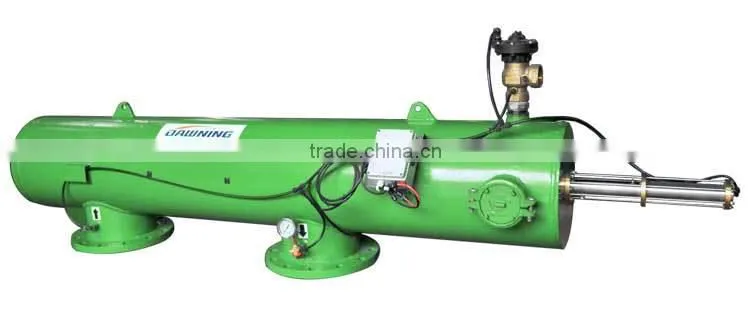

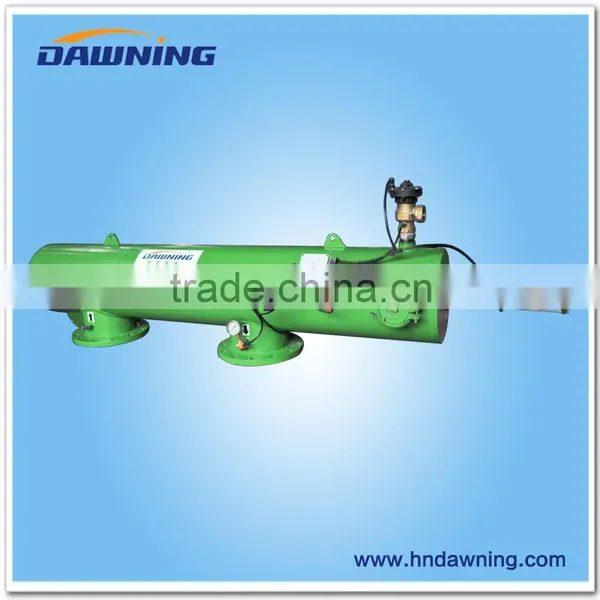

Product structure

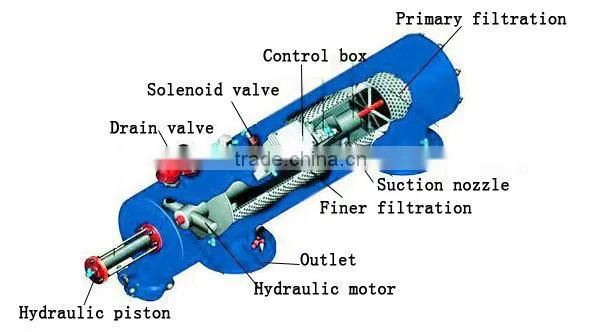

Principle descriptions
The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet.
When the pressure differential increases to the pre-determined level, the flushing cycle starts. A automatic valve is opened on the drainage outlet then hydraulic piston release pressure.
Hydraulic motor activate suck scanner system which generates an helical movement along the screen to vacuum up the captures particles from the screen. The captured solids are expelled through the drain valve.
Filters continue to supply filtered water even during the flushing cycle.The whole working system is controlled by a smart box which has several control modes: pressure differential, time, manual or PLC.
Technical parameters
| Single filter flow(max) | 1500m3/h |
| Filtration range | 25-400 micron |
| Working pressure(Min) | 0.2Mpa |
| Working pressure(Max) |
1.6Mpa(customized is available) |
| Adjustable flushing time | 10-200 seconds |
| Power supply | 220 v / 50 Hz ,DC12V |
| Control modes | Pressure difference/time/manual/PLC(optional) |
| Shell material | Carbon steel/304 stainless steel/316L(optional) |

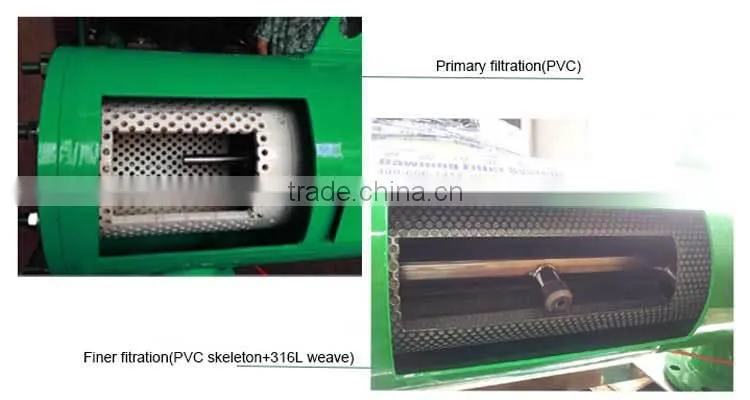

| Screen material | PCV+316L(primary filtration+finer filtration two grade filtration) |
Product selecting
When you are choosing automatic screen filters, please consider the following parameters:
1. Flow capacity( Pipe diameter)
2. Filtration range
3. Shell materai
4. Pipeline pressure
5. Chemical properties of the filter medium
6. Suspended solids(SS) concentration of filter medium
Filtration range table
Micron(μm) |
10 |
25 |
30 |
40 |
50 |
80 |
100 |
120 |
150 |
200 |
400 |
800 |
1500 |
3000 |
mesh |
1500 |
650 |
550 |
400 |
300 |
200 |
150 |
120 |
100 |
80 |
40 |
20 |
10 |
5 |
The dimension figure
|
Models
|
Inlet/out ØD |
Screen area |
ØD1 |
ØD2 |
L |
L1 |
L2 |
L3 |
H |
Weight |
Flow |
Backwash |
inch |
cm2 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
m³/h |
m³/h |
|
DLAF803LOPR |
3 |
3220 |
250 |
100 |
450 |
1135 |
1635 |
1975 |
580 |
140 |
50 |
25 |
DLAF804LOPR |
4 |
5780 |
250 |
100 |
900 |
1530 |
2020 |
2720 |
580 |
170 |
100 |
25 |
DLAF806LOPR |
6 |
5780 |
300 |
100 |
900 |
1600 |
2100 |
2700 |
640 |
183 |
150 |
25 |
DLAF806XLP |
6 |
8410 |
250 |
100 |
900 |
1990 |
2500 |
3600 |
590 |
205 |
160 |
25 |
DLAF808PR |
8 |
5780 |
300 |
100 |
900 |
1790 |
2300 |
3000 |
640 |
195 |
250 |
25 |
DLAF808LOPR |
8 |
8410 |
300 |
100 |
900 |
2190 |
2690 |
3790 |
640 |
235 |
300 |
25 |
DLAF810PR |
10 |
8090 |
400 |
100 |
1100 |
1980 |
2480 |
3270 |
720 |
250 |
350 |
50 |
DLAF810LOPR |
10 |
8410 |
350 |
100 |
900 |
2190 |
2690 |
3790 |
670 |
270 |
400 |
25 |
DLAF810XLP |
10 |
11710 |
400 |
100 |
1100 |
2720 |
3220 |
5430 |
720 |
430 |
450 |
75 |
DLAF812PR |
12 |
11710 |
400 |
100 |
1100 |
2720 |
3220 |
5430 |
720 |
435 |
600 |
75 |
DLAF814PR |
14 |
12990 |
450 |
100 |
1270 |
2720 |
3220 |
5430 |
770 |
455 |
1000 |
75 |
DLAF816PR |
16 |
12990 |
450 |
100 |
1270 |
2720 |
3220 |
5430 |
770 |
480 |
1200 |
75 |
DLAF816XLP |
16 |
17020 |
600 |
100 |
1270 |
2720 |
3220 |
5430 |
920 |
680 |
1500 |
75 |
Note:Getting bigger flow by multi-paralle | ||||||||||||
Installation and connection
Please keep the drain valve’s outlet direction horizontal position or down position to ensure the sewage is discharged completely.(More filters in parallel could get bigger flow)

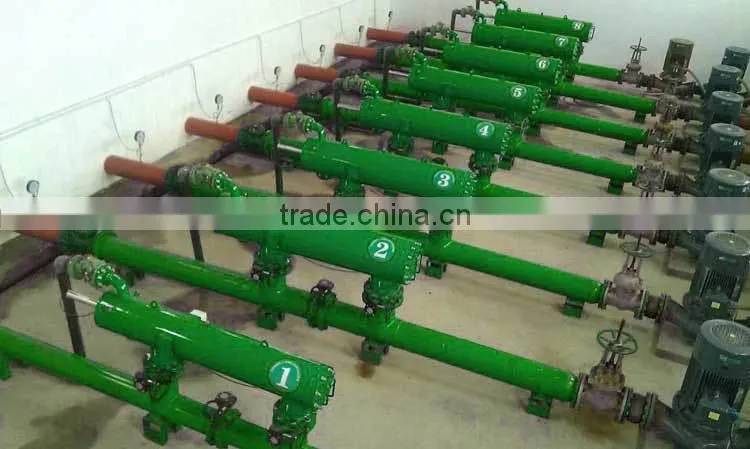

Application: Water pump house landscape irrigation
1. Our factory covers an area of 13000 square which is domestic largest water filter production base.
2. The main products have self-cleaning filter,disc filter,sand filter etc.
3. We have a few professional engineers with over ten years experience in water filtration technology.
4.OEM/ODM is availlable.
5.Service for you at any time with a excellent sales tem.
6. Our products have been widely used in circulating water,Ro pretreatment,agricultural irrigation,pre-treatment of sea water desalinization , wastewater treatment and so on.
