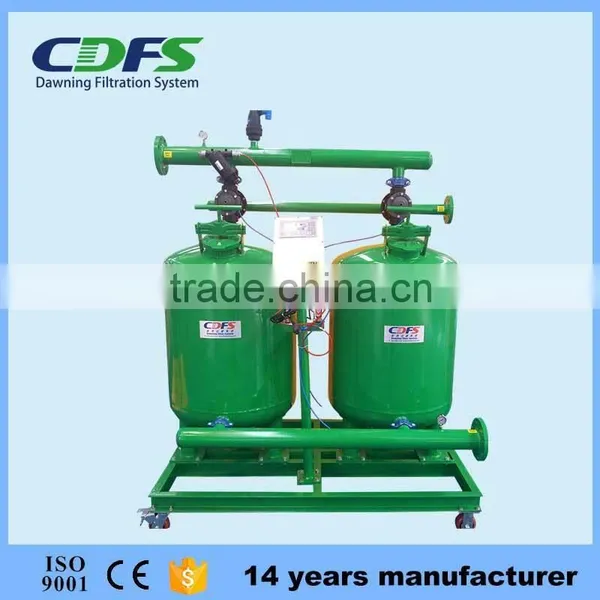

3 inch pipe 30m3/h two tank 600mm sand filter for irrigation
. Flowrate standard vessels
. Filtration grades: depend on water quality ,water flowrate and filter bed type
. Diameter stand vessels:16” - 96”
. Design pressure: 1.0Mpa
Features:
1. Complete filtration solutions; Custom designed,manual or automatic backwash systems,
complete with manifolds, valves and controllers
2. Modularity and flexibility, wide range of vessel types and sizes(diameter 16”-96”) suitable for many filtration applications
3. High quality corrosion resistance vessels, Phosphate pre-treated, Polyester coated steel
4. High efficiency; Advanced design for perfect water distribution during filtering and backwashing
5. All filters are rated to 10 Mpa.
6. Various bed types, Sand, Gravel, Activated Carbon,Anthracite, Basalt, etc.
7. Various connection types, meeting all international standards
8. Meets ISO 9001 standards
Principle descriptions
The Filtering Process
Filtering with media filters, also known as depth filtration, is done by filtering water through a thick layer of graded particles, called the filter bed. These particles can be sand, gravel or other granular materials. The filtration degree depends on the effective size of the bedding and the water velocity through the filter.

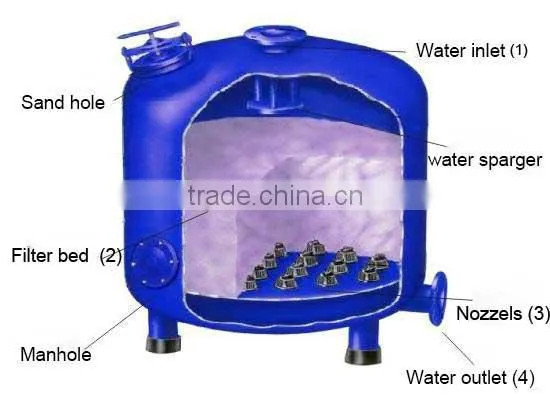

Raw water enters from the filter inlet (1) and percolates through the filter bed (2). Suspended materials come into contact and attach to the media particles. Clean water flows through the
filtration nozzles (3) and out of the filter via the outlet valve (4).
The gradual dirt buildup in the filter bed causes an increase in the pressure differential across the filter and when it reaches its maximum design value, a cleaning process should be performed. In automatic media filter installations a pressure differential switch senses the pressure differential and when it reaches a preset value, the self cleaning process begins.

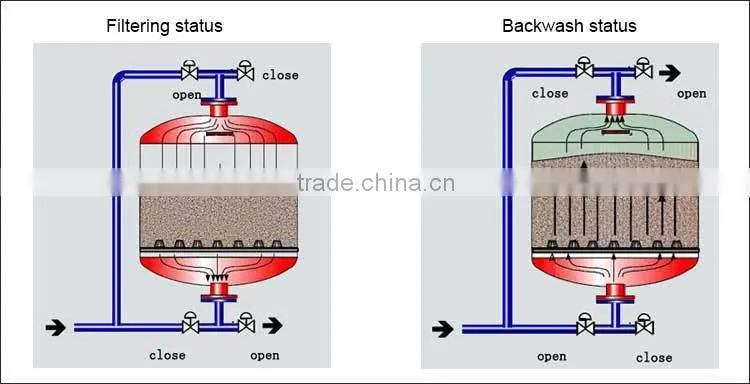

The Cleaning Process
Cleaning is done by backwashing; pressurized water flows in reverse direction – from the nozzles upwards, causing suspension of the filter bed, thus releasing the suspended matter from the bedding. The dirt particles are then washed out of the filter through the back-flush valve. In automatic media filters installations the cleaning process is done by the system’s controller. When the pressure differential switch senses that the differential pressure across the system reached a pre-set value, a signal is sent to the flushing controller and the self cleaning process begins.
Technical parameters
| Model | DMF sand filter |
| Flow(max) | 800m3/h |
| Filtration tanks quantities |
1-10 |
| Tank diameter | 24"(600mm)-48"(1200mm) |
| Design pressure | 1.0Mpa |
| Backwash pressure(Min) | 0.2Mpa |
| Medium | quartz sand |
| Control modes | Manual |
| Shell material | Carbon steel |
| Automatic drain valve | manual valve |
Data sheet(Each model with different size)
Models |
Tank dia.(mm) |
Inlet and outlet(inch) |
Flow rate(m3/h) |
DMF24-2 |
600 |
3 |
30 |
DMF24-3 |
600 |
3 |
45 |
DMF28-2 |
700 |
4 |
60 |
DMF28-3 |
700 |
4/6 |
90 |
DMF32-2 |
800 |
4/6 |
75 |
DMF32-3 |
800 |
6 |
115 |
DMF32-4 |
800 |
6 |
150 |
DMF36-2 |
900 |
4/6 |
80 |
DMF36-3 |
900 |
6 |
120 |
| DMF36-4 | 900 | 6/8 | 160 |
DMF36-5 |
900 |
8 |
200 |
DMF36-6 |
900 |
8 |
240 |
DMF48-2 |
1200 |
6 |
160 |
DMF48-3 |
1200 |
8 |
240 |
DMF48-4 |
1200 |
8/10 |
320 |
DMF48-5 |
1200 |
8/10 |
400 |
DMF48-6 |
1200 |
10 |
480 |
| DMF48-8 | 1200 | 10/12 | 640 |
| DMF48-10 | 1200 | 12 | 800 |
(Note: Many sets in parallel can gain more flow.
eg: DMF32-4 means there are 4 filtration tanks of 800mm diameter in parellel)
DMF48-8 means there are 8 tanks in parellel)
Product selecting
When you are choosing automatic backwash sand filters, please consider the following parameters:
1. Flow capacity( Pipe diameter)
2. Filtration range
3. Shell material
4. Pipeline pressure
5. Chemical properties of the filter medium
6. Suspended solids(SS) concentration of filter medium

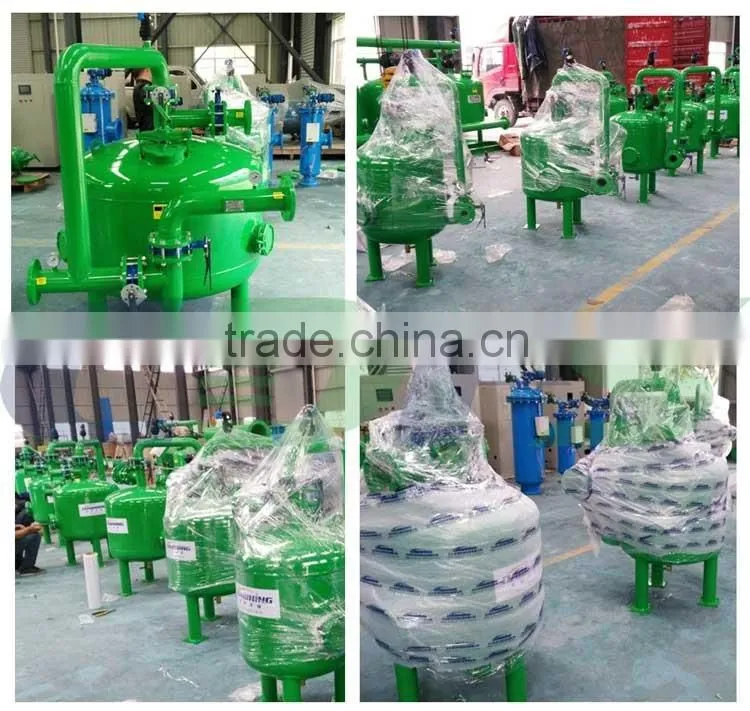

Product pictures

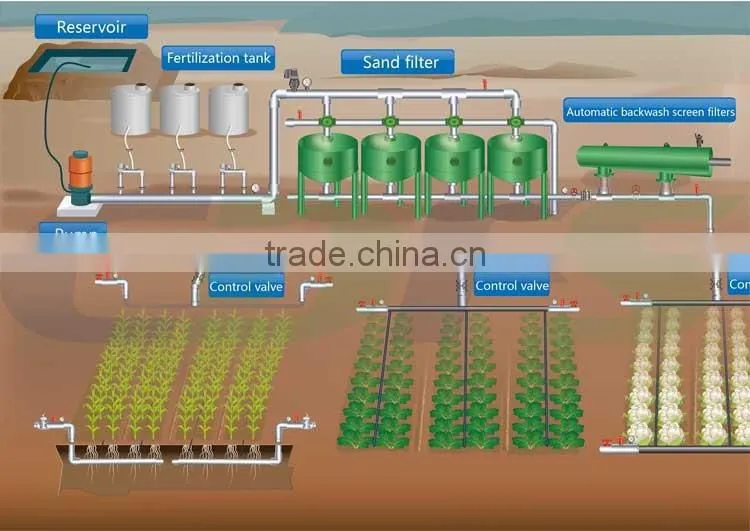

Actual case:
Raw water: Surface water,such as river and lake water
Water quality: Tuibidity and high organic content

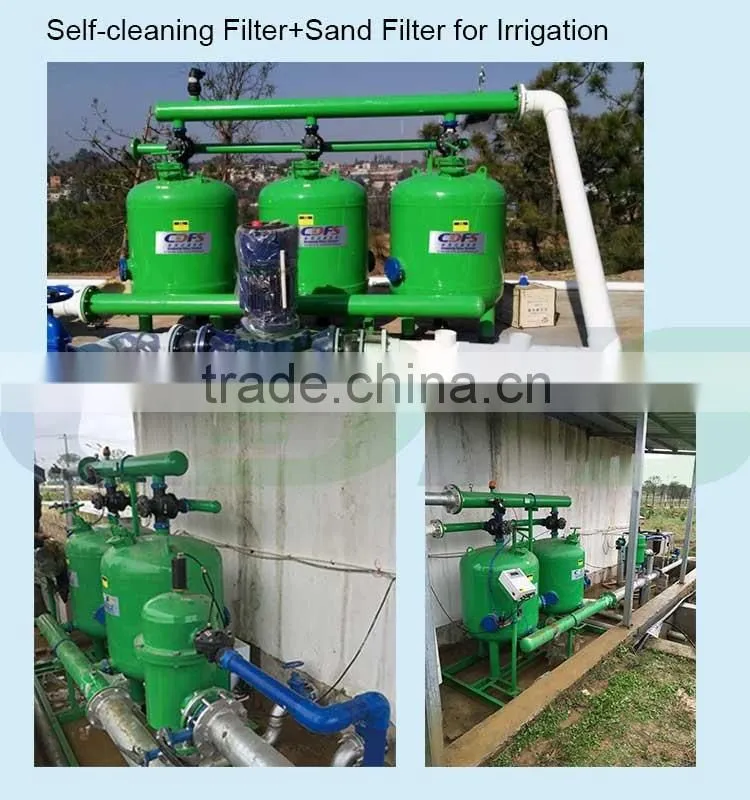

Solution: Sand Filter+Self-cleaning Filter (Vertical type or horizontal type )
Filtration efficientcy:High flow rate; Compact.
Purpose: To protect drip emitter and effectively fulfill water-saving irrigation
Please tell us the flow rate(m3/h) of your irrigation system and other requirments,
We will select suitable model according to water source and actual situation.
