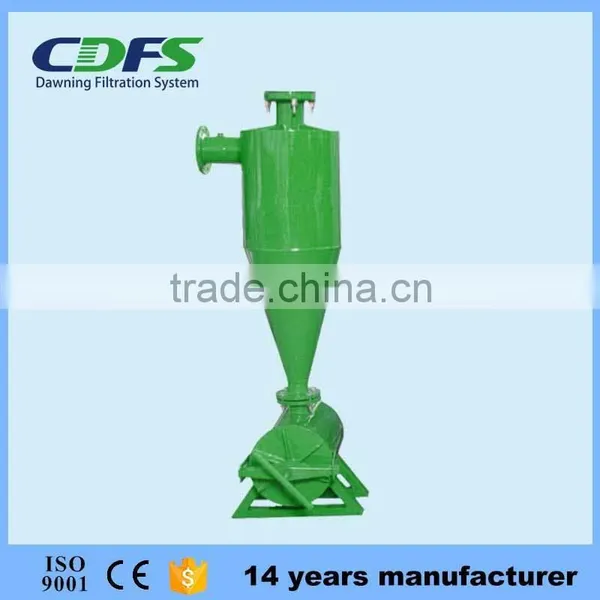

Centrifugal filter with high efficiency sand removing rate
Principle description
Cyclone desander is functioning according to the principle of centrifugal sedimentation and density difference. Under a certain pressure, the water produces strong rotation movement after flowing tangentially into the equipment through the inlet of the desander. Because the density of sand and water is different, they are experiencing different force under the action of the centrifugal force, the centripetal buoyancy and fluid drag force. Then clear water of low density increases and flows out through the overflow mouth, and dense sand is being exhausted from desanding outlet at the bottom. In a certain scope and condition, the higher inlet water pressure is, the greater desanding rate will be, and more desanders can be used combined in parallel.
Models demonstration
Dimension figure
Advantages and application
1. Simple structure, low cost, easy installation and operation, scarcely need maintenance.
2. Compared with expanding tube or buffer tank, it has small size, large handling ability, saving the space also.3. Application range: the clearing for river water, well water, coal-washing wastewater, industrial
beneficiation, solid-liquid separation, fluid degassing, separating immiscible fluid, etc.
4. Application field: air-conditioning water treatment, chemical, petroleum, mining, medical, textile
industry and so on.
Technical process
Raw water-Cyclone desanding-Precise filtering-Tank-User
Application 1: Cyclone desander + screen filter(raw water source is river and lake water that sand quantity is large; High flow rate)

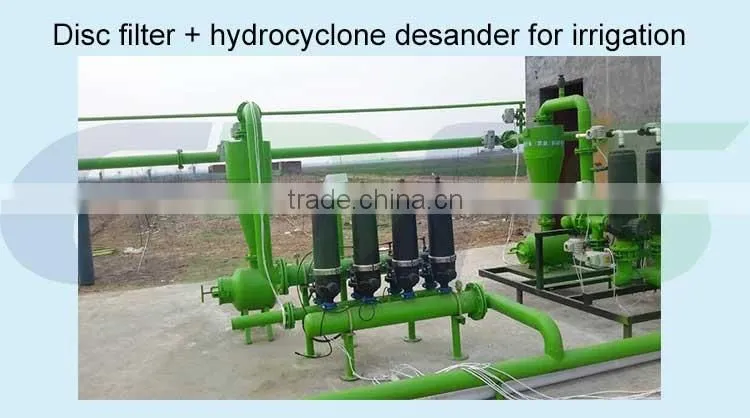

Application 2: Cyclone desander + Disc filter (raw water source is river and lake water that sand quantity is large; Suitable for systems with low flow)
To get the best filtration effect, improving water quality and protect irrigation systems,different types of filters should be combined according to different type of raw water used for irrigation.
| Raw water | Water quality | Typical solution | Filtration efficiency |
| Surface water | Turbidity and high organic content | Sand filter +self-cleaning filter | High flow rate, small occupied space |
| Sand filter+disc filter | Suitable for system with low flow; Large occupied space | ||
| Underground water | Large quantities of sand | Centrifugal filter+self-cleaning filter | High flow rate;complete blackwash,low cost |
| Centrifugal filter+disc filter | Suitable for system with low flow,complete blackwash,easy to install |
1.OEM/ODM is availlable.
2.Service for you at any time with an excellent sales team.
1. Our factory covers an area of 13000 square which is domestic largest water filter production base.
2. The main products have self-cleaning filter,disc filter,sand filter etc.
3. We have a few professional engineers with over ten years experience in water filtration technology.
4. Our products have been widely used in circulating water,Ro pretreatment,agricultural irrigation,pre-treatment of sea water desalinization , wastewater treatment and so on.
