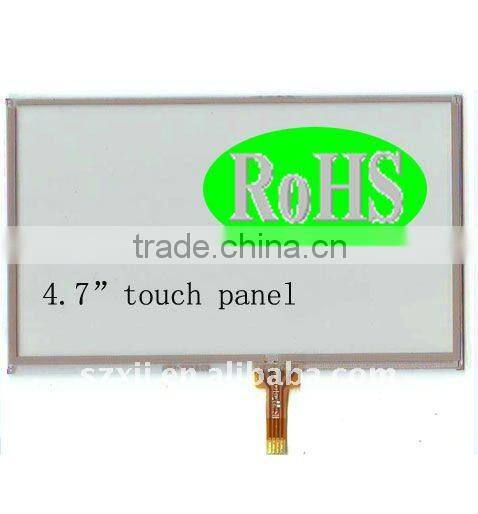

Help Center4-wire 5 v dc Voltage 4.7 Inch Touch Panel Resistive Touch Screen Used in Navigation
Related Products
-
Finger Touch 4 Wire Resistive Touch Screen for GPS Car VCD cdUS$ 3.17 - 15.82MOQ: 100 Pieces -
Touch Screen Backlight Flexible Membrane Keypad Membrane CircuitUS$ 1 - 5MOQ: 100 Pieces
-
Custom-made Embossed Polyester Contol Panel Label With Very Strong StickerUS$ 1 - 5MOQ: 100 Pieces
-
PMMA Material Polycarbonate Touch Panel Printing CNC Cutting Acrylic LabelUS$ 1 - 5MOQ: 100 Pieces
-
Screen Cover Top Touch Polycarbonate PC Label With Very Strong StickerUS$ 1 - 5MOQ: 100 Pieces
Specifications
Widely Use...The car's navigation, vehicle DVD, car audio, machine learning, MID, tablet computer, visible interphone, cam
80This product is for Analog Resistance Type Touch Panel used as the input devices for
mobile phone
Features and General Specifications
Type..4 Analog Resistive Type Touch Panel , Input Method..Finger or special Pen
Structure..Shape, structure and dimension are referred to attached drawing
Widely Use...
The car's navigation, vehicle DVD, car audio, machine learning, MID, tablet computer, visible interphone, camera phones, PaiDuiJi, the injection molding machine
The appearance of the touch screen size: 113.7mm*69.3mm; The touch screen VA size:107.9mm*62.1mm;
The touch screen AA size:106.3mm*60.5mm; The FPC box seat: touch screen in touch screen right below, from below 46.5 mm out the right touch screen FPC, FPC length: 22.5 mm.
Shenzhen Xin Jie Jia Electronic Membrane Switch Co., Ltd
FILM: high bright surface touching (0.188 mm)
GLASS: 500 Ω / / (1.1 mm)
TAIL: FPC (PITCH = 1.0 mm)
Total ply: 1.4 + /-0.15 mm
Structure.. ITO film + ITO glass
The input voltage. More than equal to 10 v
Using temperature. -10 degrees Celsius--60 degrees Celsius
Life.. 1000000 times
Link material. FPC
The brightness ..100 (CD / m2)
Insulation resistance: acuity 20 M Ω (25 V DC)
The reaction time. More than equal to 10 ms
Linear.. More than equal to 1.5%
Light transmittance.. Less or equal to 85%
Surface hardness. Less or equal to 3 H (pencil)
Operating strength... More than equal to 80 g
Line... 4 spell
work environment: 10 °C ~ + 60 °C more than 90% RH
storage environment: 20 °C ~ + 70 °C more than 90% RH
Shenzhen Xin Jie Jia Electronic Membrane Switch Co., Ltd
The requirements in “Operation force” of the item “6 Mechanical characteristics” and “8 Electric characteristics” shall be satisfied
Shenzhen Xin Jie Jia Electronic Membrane Switch Co., Ltd
Principle diagram
