China Manufacturer High Quality
Advertisement CNC Router
Application
The machine is suitable for acrylic, PVC,PC,ABS,PS,PMMA,PE,MDF,Nylon(PA),wood and other
advertising materials cutting and engraving.
Feature
1.Suitable for different engraving materials.
2.Operation: Simple, convenient, and easy to learn.
3.Integrally welded lathe bed ,solid and stable, high rigidity and long service time.
4.Z-axis high precision ball screw, ensures more stable movement , high precision.
4.X,Y axis adopting Taiwan High accuracy Linear Square Guide and rack which increase engraving
accuracy and speed effectively.
5.Adopting High speed water cooling frequency Spindle motor which make sure vigorously distance,strong cutting, high frequency, long lifespan, prolonged working time.
6.The worktable adopt aluminum T-slot,fix material by clamps.
You can also choose Dust Collecting System according to needs.
Specification
Product Name |
China Manufacturer High Quality Advertisements CNC Router |
| Model | DMS-F1325 |
| X,Y working area | 1300x2500mm |
| Z working area | 150mm |
Spindle power |
3KW (water-cooling spindle motor) |
| Gross power | 4.5KW |
| Main axle rotating speed | 0-24,000rpm |
| Working voltage | AC 220V/50HZ/60HZ |
| processing precision | ± 0.05mm |
| reposition precision | ± 0.02mm |
| Max travel speed | 6-8m/min |
| Max engraving speed | 3-4m/min (According to the material properties and thickness) |
| Max feeding height | 110mm |
| Software Running Environment | Windows98/2000/XP |
| Worktable structure | Aluminum T-slot, fix material by clamps |
| Command | G code*.u00*.mmg*.plt |
| Software compatibility | Type3, Artcam, Castmate, Ucancam etc |
| Driven motor | Stepper |
| Dust collecting system | Dust catcher(Optional Items) |
| Dimension | 3100*1900*1700 |
| Weight | 800KG |
Suitable materials |
acrylic, PVC,PC,ABS,PS,PMMA,PE,MDF,Nylon(PA), wood and other advertising materials |

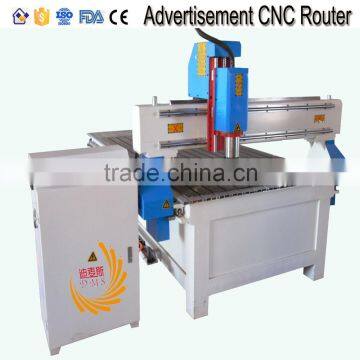

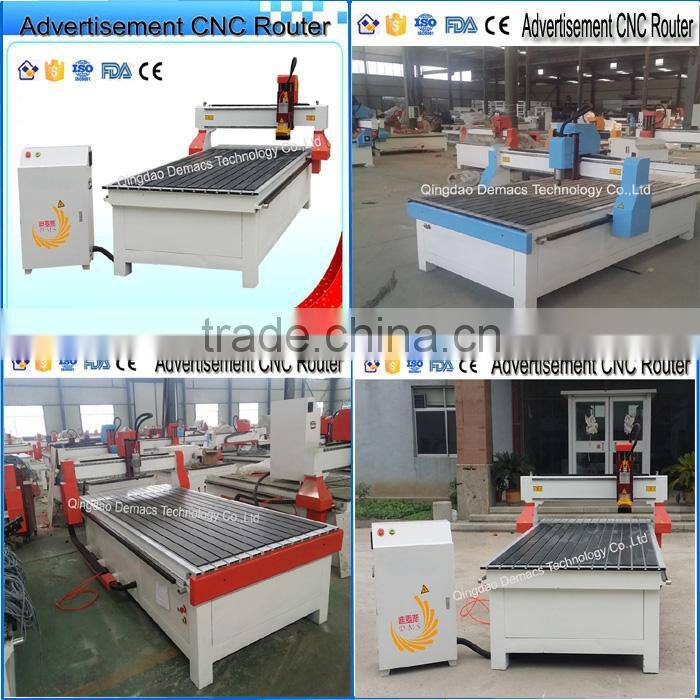

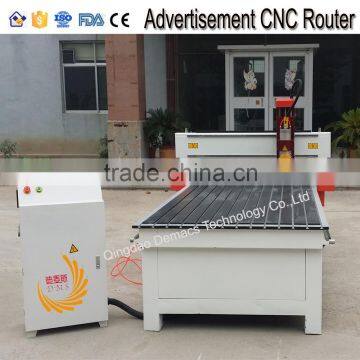

Products Show

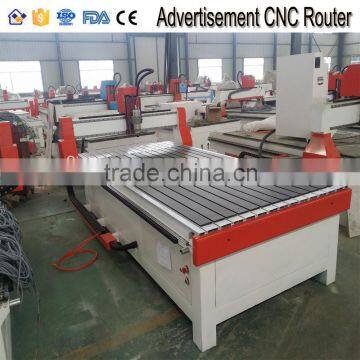

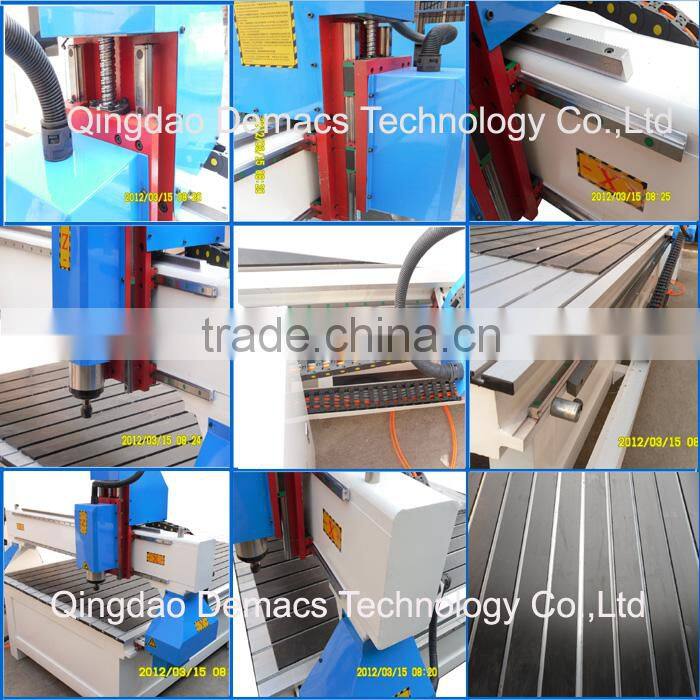

Product Details

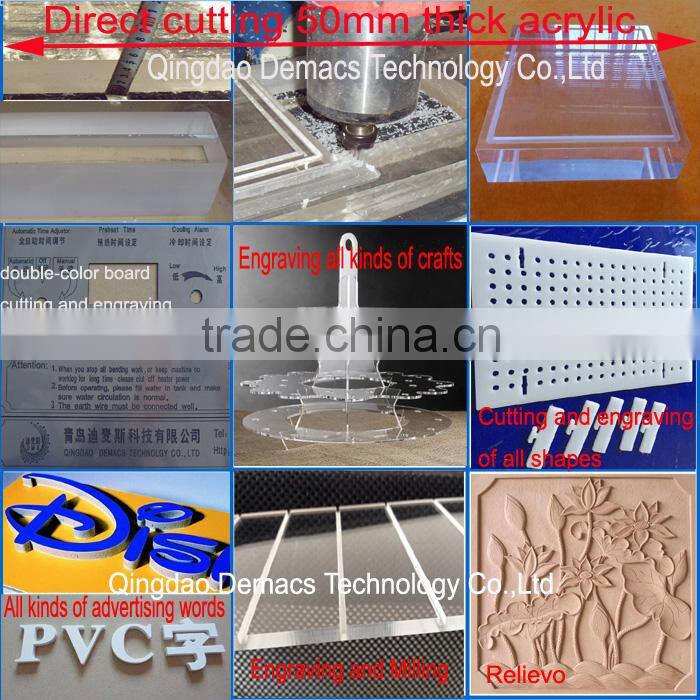

Working sample Show

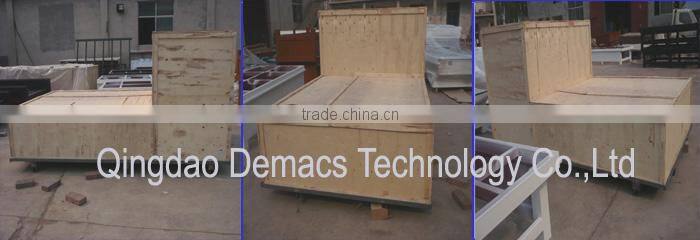

Package and Shipping
After-sales service
1. One year quality guaranty. The machine with main parts (excluding the consumables)
Within the warranty period and the machine parts were damaged under normal using condition,
we will offer new parts for free.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. Before shipment,the Advertisement CNC Routerhave been tested,
we will take pictures and videos for you.
5.Electronic version of the english operation manual included with the Advertisement CNC Router
6. 24-hour technical support by email or calling.
