Specifications
Galvanized Hexagonal Wire Mesh Box1 Various sizes and material
2 ISO9001,CE,SGS test
3 Direct Factory
4 High quality
1. Introduction

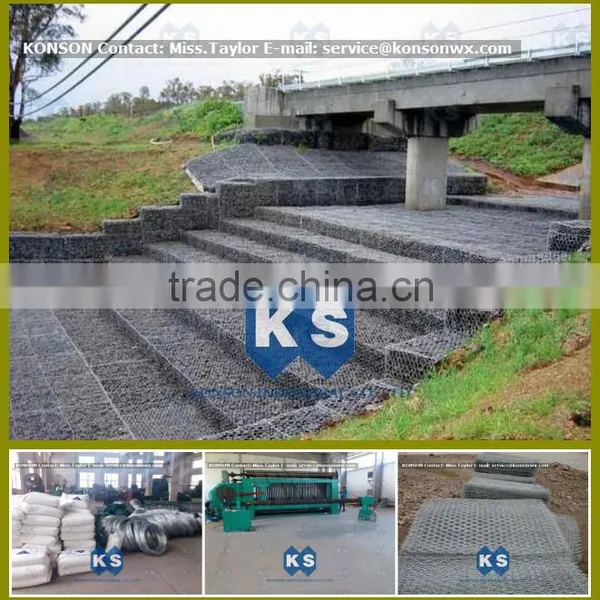

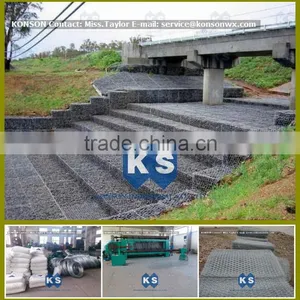

Galvanized Hexagonal Wire Mesh Box For Bridge Protection
Hexagonal Wire Mesh Box/Gabion box is basket or mesh roll made of twisted hexagonal wire mesh in 80x100mm,hot-dip galvanizing or galfan(zinc 95%, aluminum 5%).
Hexagonal Wire Mesh Box/Gabion box is a rectangular box made of galvanized double twisted hexagonal woven mesh. The compartments or cells are of equal size and its dimensions are formed by internal diaphragms placed in the box. The compartments or cells are filled with natural stones and the diaphragms minimize the migration of stone, making it possible the distribution of the stones even after structural movement. The strength of gabion box comes from a double twisted hexagonal mesh reinforced by selvedge wire running along the edges and by transverse internal diaphragms at 1m center.
2. Standard Specification
Standard sizes in mesh 80mm x 100mm nominal,wire diameter 2.7mm,Heavily zinc galvanised wire or Galfan coated with a 95%Zinc + 5% Aluminium Alloy
Length (m) |
width (m) |
height (m) |
diaphragm |
volume |
tolerance |
2 |
1 |
0.3 |
1 |
0.6 |
Length+/-3% |
3 |
1 |
0.3 |
2 |
0.9 |
|
4 |
1 |
0.3 |
3 |
1.2 |
|
2 |
1 |
0.5 |
1 |
1 |
|
3 |
1 |
0.5 |
2 |
1.5 |
|
4 |
1 |
0.5 |
3 |
2 |
|
1 |
1 |
0.5 |
0 |
1 |
|
1.5 |
1 |
1 |
0 |
1.5 |
|
2 |
1 |
1 |
1 |
2 |
|
3 |
1 |
1 |
2 |
3 |
|
4 |
1 |
1 |
3 |
4 |
(We can manufacture as client's demand.)
3. Application
a. Control and guide of water or flood
b. Preventing of rock breaking
c. Rock fall protection
d. Water and soil protection
e. Bridge protection
f. Strengthening structure of soil
g. Protection engineering of seaside area
h. Port project
i. Keep off dust wall
4. Characteristics
1.It is very economical. You just need to put stone in the mesh and then seal it.
2.It is flexible, corrosion resistance and can stand up with extreme weather.
3.Simple construction, requiring no special technique.
4.The silt between the wire mesh and stone contributes to plant growth, making the gabion wire mesh harmonious with the surrounding natural environment.
5.The gabion wire mesh is folded and can be assembled site, which saves transportation cost.
5. Customers and Certificates
6. Company Information
Konson Industrial Company Limited, with more than 15 years production experience, becomes one of the leading manufacturers of the gabions, mattress and gabion production line in China. We would like to offer good service and excellent products to customers wholeheartedly!
The company, with more than 100 experienced employees, has two workshops, one is for the gabion machine making, the other is for the gabion&mattress making. It has a production facility of more than 10 complete sets of gabion production line and four million square meters hexagonal wire mesh(gabion box) each year.
7. Our services
1. We can offer any sizes of gabion mesh, baskets or boxes according to the requirements of customers.
2. We will reply you as soon as possible upon receving your request of your products.
3. We can provide you with samples free of charge.
8. Packing and shipping
9. Related Photos
in the workshop
project photos
