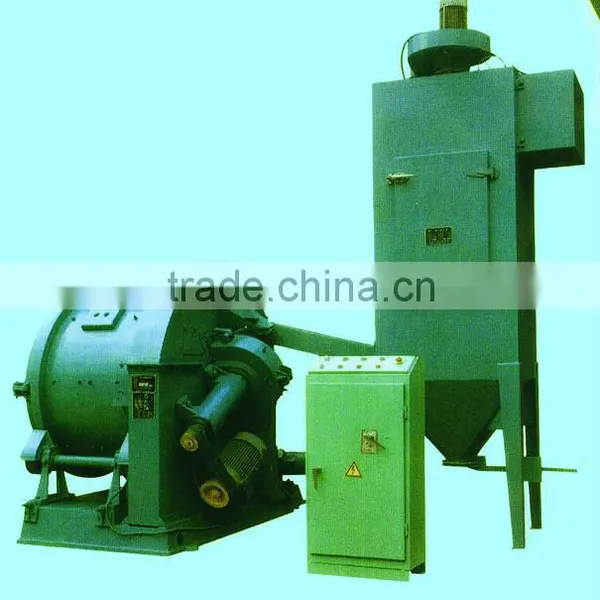

Q31 Series Rolling Drum type shot blasting machine
The machine is suitable for surface rust removal of work pieces in medium or small quantity batch production with many varieties. Put the work pieces into the barrel and blasting it in side way.
The high-speed impeller throws the abrasive to the continuous tumbling castings or forgings in barrel, to remove the greensand or scales on the surface. It cleans evenly and its productivity is high, so it is suitable for cleaning the small work pieces whose weight are under 15g in medium or small-scale casting or forging workshops.
Technical specification:
No |
Item |
Q3110BI |
Q3110BII |
Q3113BI |
Q3113BII |
|
1 |
Diameter of rolling drum |
mm |
1000 |
1000 |
1300 |
1300 |
2 |
Loading capacity |
kg |
300 |
300 |
600 |
600 |
3 |
Productivity |
kg/h |
600- 1500 |
600- 1500 |
2500- 3500 |
2500- 3500 |
4 |
Power(no dust collector) |
kw |
9.7 |
11.9 |
14.5 |
16.3 |
5 |
Max weight of workpiece |
kg |
15 |
15 |
30 |
30 |
6 |
Speed of rolling drum |
r/min |
3 |
3 |
2.5 |
2.5 |
7 |
Abrasive flow rate |
kg/min |
120 |
120 |
160 |
160 |
8 |
Ventilation capacity |
M3/h |
800 |
2000 |
2000 |
2800 |
9 |
Outline dimension |
mm |
2078* 2458 *1861 |
3870* 2458* 3370 |
2550* 2341* 2250 |
4362* 2341* 2250 |
We produce model Q31 Drum shot blasting machine
Flip the workpiece by a rotating drum to achieve;
Need to be afraid of a collision for the object parts
