Specifications
New products high brightness aluminum led panel 18w1.Factory directly
2.Embedded or ceiling mounted
3.CE&ROHS Approved
-Use 2835SMD LED
-Efficient housing design results in 93% light utilisation
-Aluminum base design, heat dissipation excellent
-50, 000 hours average LED life span
-High Power Factor
-95% efficient integrated LED driver
-Warm white,natural white,cool white colour temperatures, CRI > 80
-Direct Use in AC110-265V
led panel 18w specification:
| Power | Surface diameter | Hole Size | Specification |
| 3W | 85mm | 70mm |
Round panel
Material: Aluminium + frosted PMMA cover
SMD2835,Per LED21-23lm,Isolated IC Power Driver,Voltage:85-265V 50/60Hz,current output:240-260mA |
| 6W | 120mm | 105mm | |
| 9W | 145mm | 130mm | |
| 12W | 170mm | 155mm | |
| 15W | 190mm | 175mm | |
| 18W | 225mm | 200mm | |
| 6W | 120*120mm | 110*110mm |
Square panel
Material: Aluminium + frosted PMMA cover
SMD2835,Per LED21-23lm,Isolated IC Power Driver,Voltage:85-265V 50/60Hz,current output:240-260mA |
| 9W | 145*145mm | 130*130mm | |
| 12W | 170*170mm | 155*155mm | |
| 15W | 190*190mm | 175*175mm | |
| 18W | 225*225mm | 200*200mm |

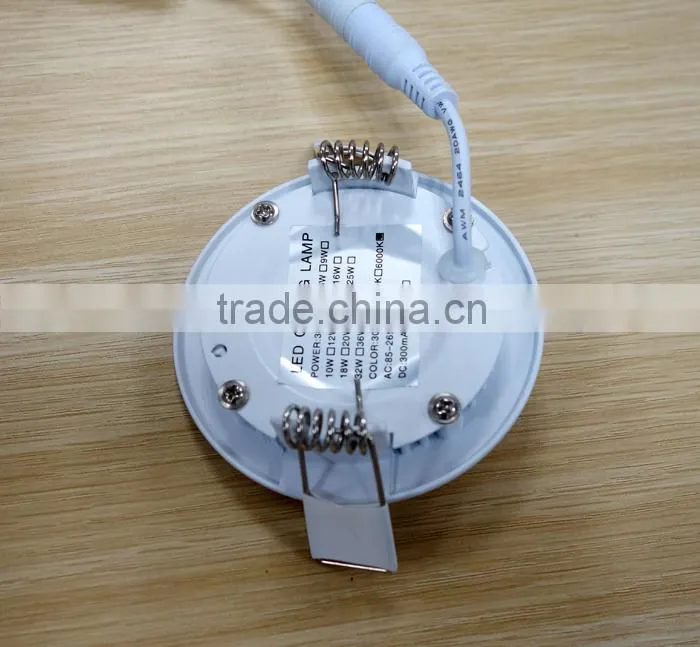

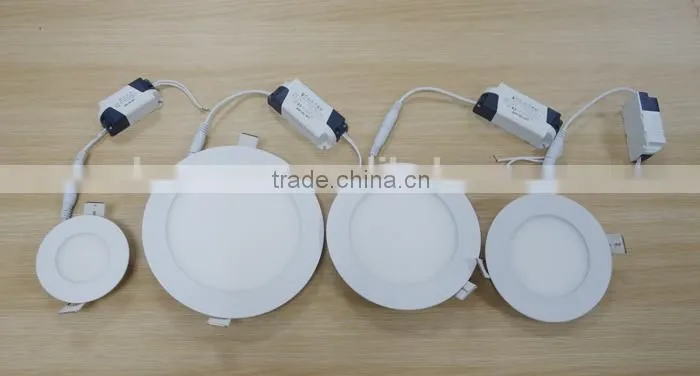

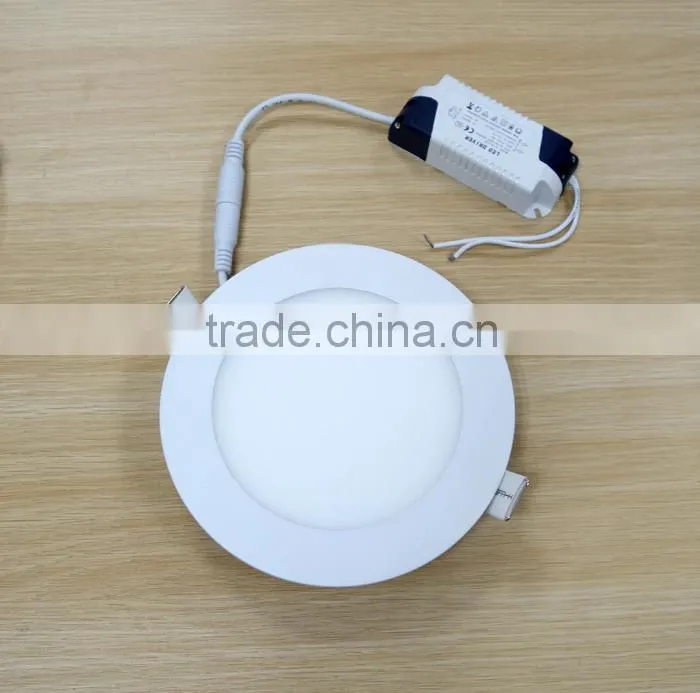

led panel 18w pics

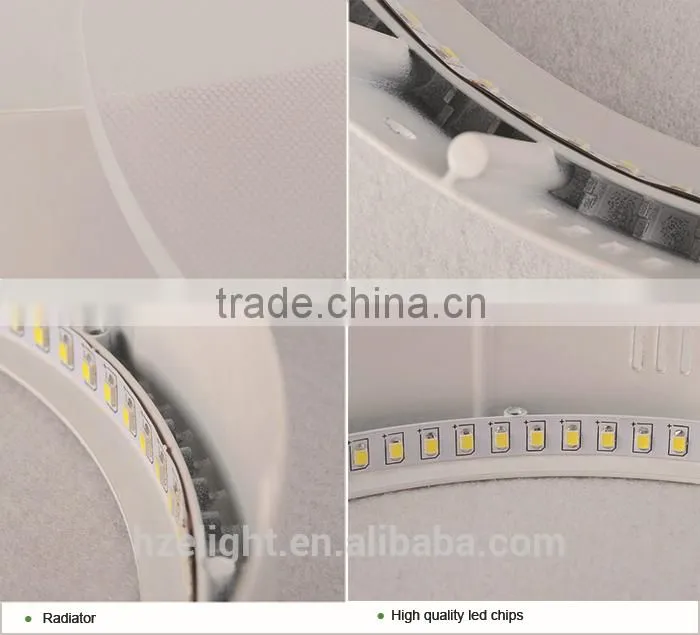

High quality light guide plate make the light uniform
PMMA diffuser has the light transmission rate up to 93%
led panel 18w application
Package
1.Each in a bubble bag/Foam inner package, then in a regular box
2.Custom package is welcome
We are a professional led factory with 15 years manufacture experiences,products have been exported to Europe, Australia , Middle East, South America,etc.Our products are popular in wholesaler and projects.
If you are interested in our led panel light,please email us or call us 86-13157136332! Thank you!
