Home > Health & Medicine > Dental Equipment & Supplies > Dental Apparatus > Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole

Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole

Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole thumbnail-1
Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole thumbnail-2
Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole thumbnail-3
Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole thumbnail-4
Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole thumbnail-5
Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole thumbnail-6
Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole photo-1
Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole photo-2
Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole photo-3
Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole photo-4
Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole photo-5
Dental Fiber Optic E-generator Handpiece Self-illumination Push Button 4 Hole photo-6
US$ 39 - 249 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Other, Dental Handpiece, Dental Fiber Optic E-generator dental handpiece Push button
Brand Name:
Dr Super
Model Number:
HR-164 LED E-generator dental handpiece
Contact Supplier Request Quote Chat Now
Zhengzhou Huaer Electro-Optics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Shanghai Guangzhou Zhengzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Dental Handpiece, Dental Fiber Optic E-generator dental handpiece Push button
Brand Name Dr Super
Model Number HR-164 LED E-generator dental handpiece
Place of Origin Henan, China
Product Description

Dental Fiber Optic E-generator Handpiece Self-illumination Push button 4 holes


Type
Dental Fiber Optic E-generator Handpiece Self-illumination Push button 4 hole
Japan originally imported cartridge, top quality & longer life span.
E generator fiber optic quick coupling, can used on fiber optic dental chair directly!
Operation air pressure
0.25-0.3Mpa (0.25 MPa preferred)
Atomization Pressure
0.30MPa (3kgf)
Water Pressure
0.2Mpa (2kgf)
Spray
triple water spray
Free load speed
About 280,000 R.P.M for troque head
Chuck type
Push Button
Grip Power
25-45N
Speed of generator
18,000-22,000 R.P.M
Noise
Less than 60 db
Air consumption
55L/min
Life of LED bulb
More than 5,000 hours
Supply Voltage
3.0-3.5V

Features of high speed dental handpiece:


1. Fashionable style E-generator LED handpiece
2. Professional LED light source, superior brightness, longevity 10000 hours
3. Unique electric generator, just a little air can generate sufficient power
4. Self-illumination without connecting circuit
5. Perfect stable and reliable performance
6. Push Button cartridge
7. 135°C Autoclavable
8. Triple water spray, more ideal cleaning effect
9. High-grade material with a stylish design
10.The ball bearing is steel ball to lead a longer life span !
11.Push button,chang the burs more easily !
12.Real steel ball bearing ! Low noise !

Technical Parameter of high speed dental handpiece:

1. Head: large torque head
2. Air pressure at the back end of HP: 250KPa--300KPa(300KPa preferred)
3. Air pressure at the gauge in the dental unit: 277-316 K Pa (2.8-3.2 k g f /cm2)
4. Water pressure :198Kpa (2 kg)
5. Rotation speed :300,000-450,000 rpm
6. Head hight :14.5 mm( standard )
7. Head diameter :φ12.5 mm( torque ) φ11.2 mm( standard )
8. Chuck type : push button
9. Bur applicable :φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)
10. Noise :≤60dB

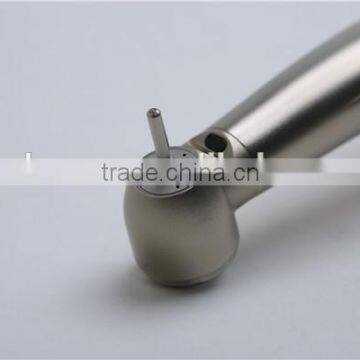

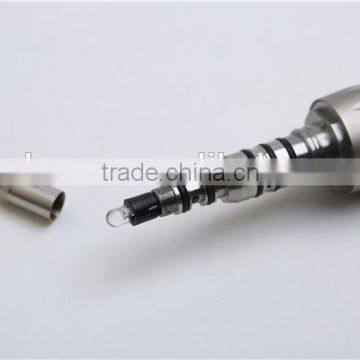

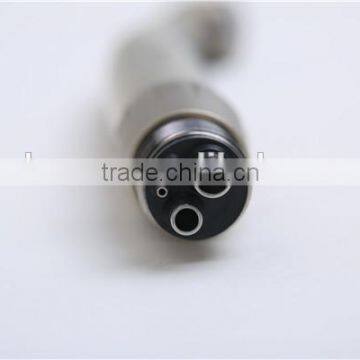

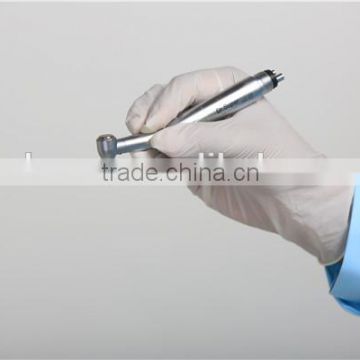

Detailed Images

4 holes fiber optics handpiece & E generator


 triple water spray & anti retraction functions


option fiber optic quick coupling, can used on fiber optics directly.


Japan original imported cartridge, life span is 120-150 times than common ones.

additional anti retraction functions, more advanced and convenient to operate!

Packing & Delivery

Box Package


If you need, we can also do your own package & logo printed.

Standard Caton Package


Delivery by express, air cargo, or sea shipping

Based on your order, Huaer will offer the best transportation solutions

Factory pictures
Huaer Company

Zhengzhou Huaer Electro-Optics Technology Co., Ltd. is established in 2 0 0 6 .

Located in Zhengzhou city , we’re the leading manufacturer for the Portable Dental Unit , Dental Handpiece Teeth Whitening Material and Dental Impression Putty etc. Our products sell well in Australia, Columbia, Kuwait , the Netherlands, South Africa , Thailand , United Kingdom , United Arab Emirates , United States , Zimbabwe .Except our own products, we can also provide OEM services and accept customized order as well. Our products are CE and SFDA certified . For more details, please feel free to contact us to learn more.

Exhibitions


Dear, if any interests, welcome to inquiry of Dr Super High Speed Fiber Optic LED Dental Handpiece
