Hook Tension Lock

US$ 0.63 - 2.56 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

PTC

Model Number:

PTC-Z

Shanghai PTC Display Equipment Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name PTC

Model Number PTC-Z

Specifications

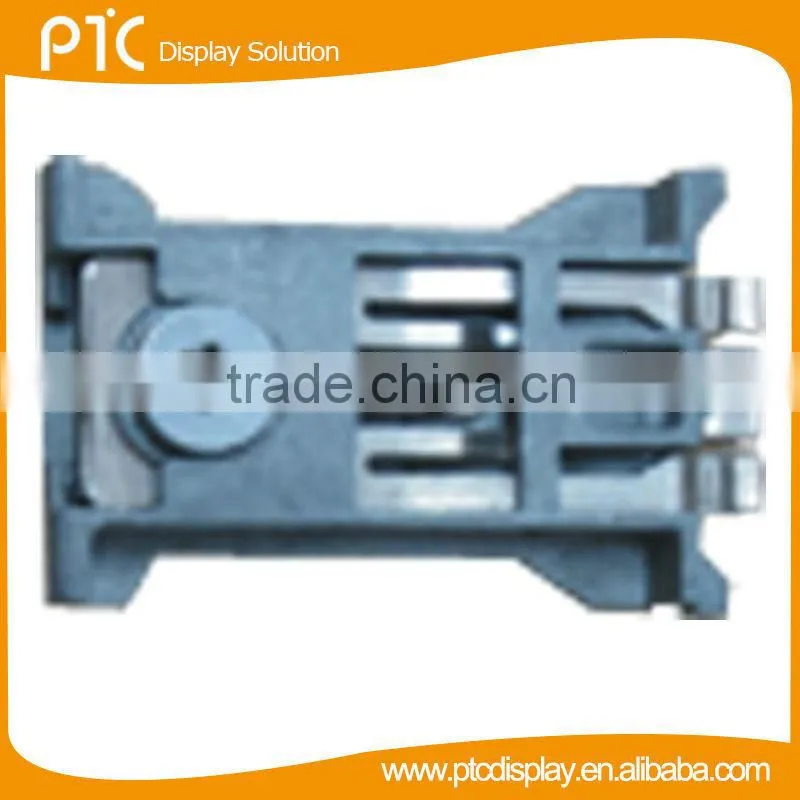

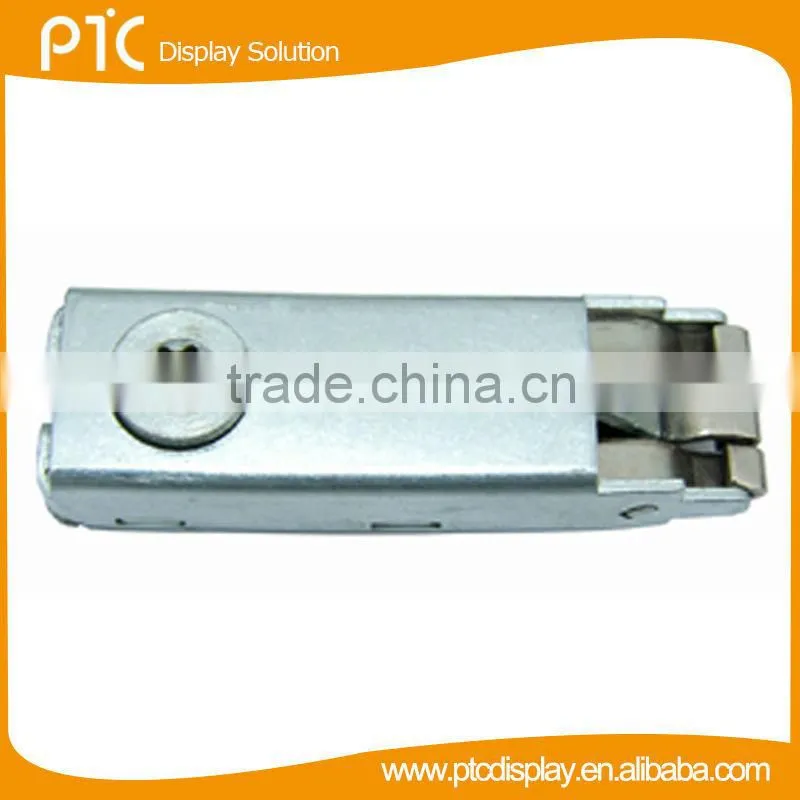

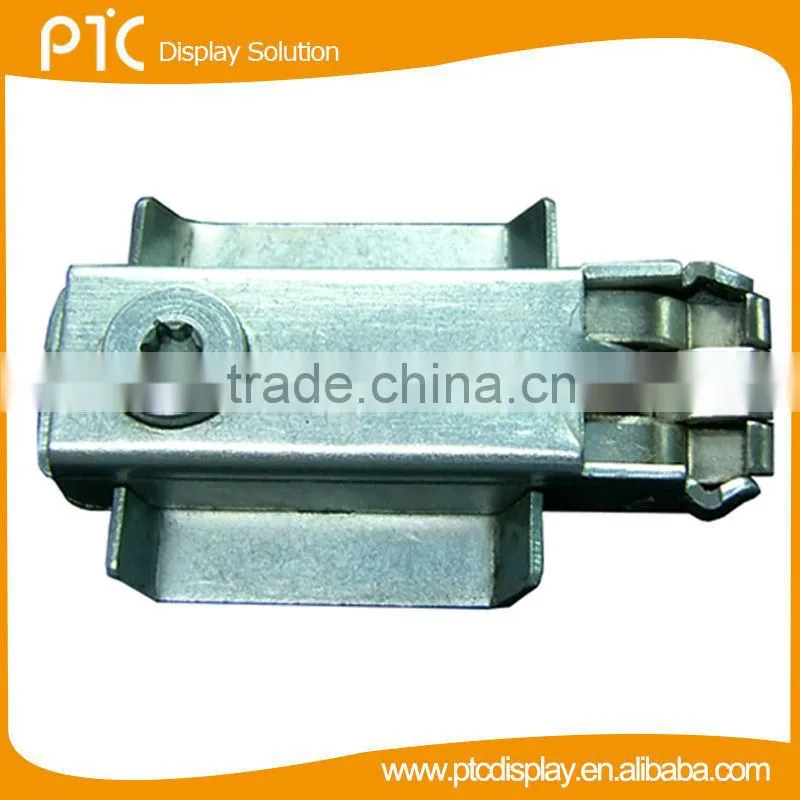

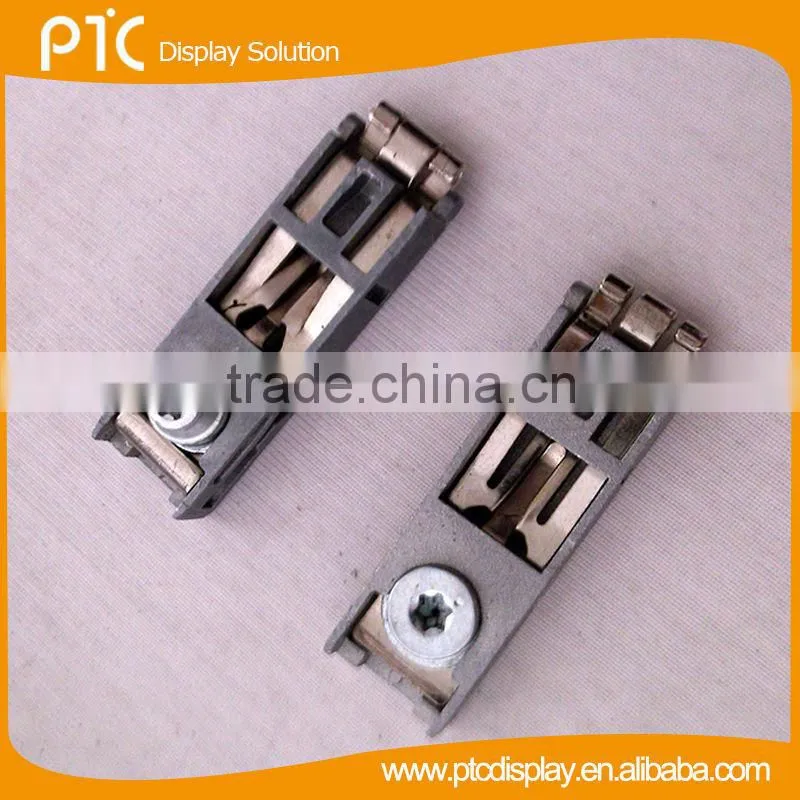

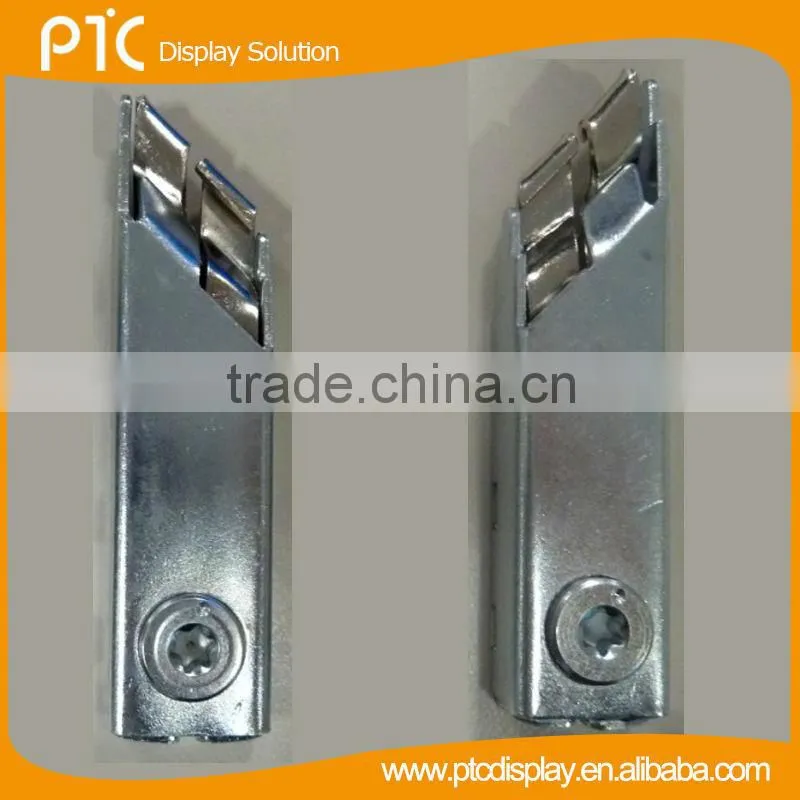

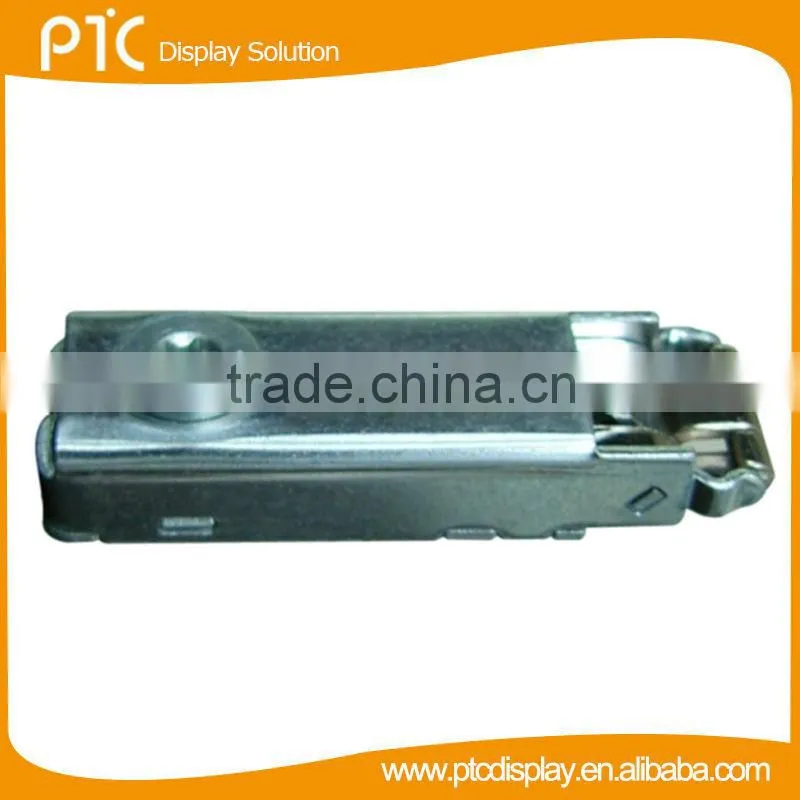

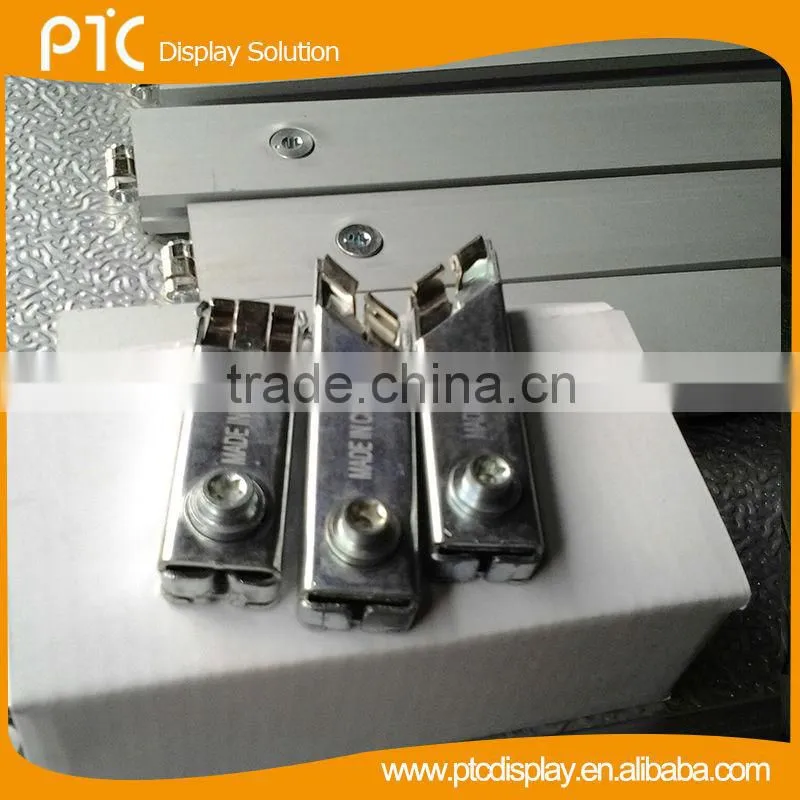

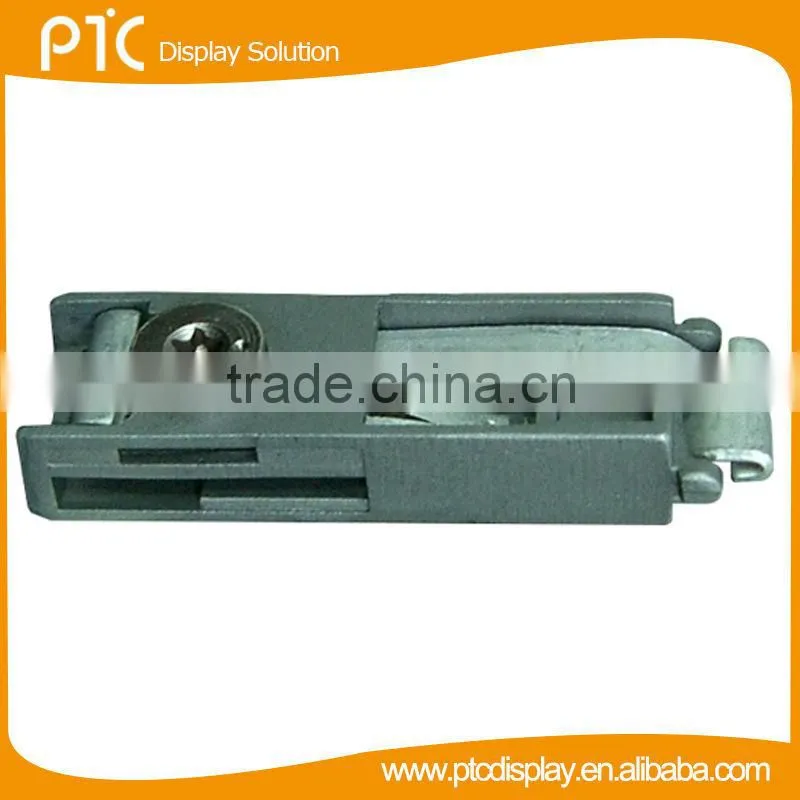

hook tension lock
1.13 types for all beams & upright extrusion
2.Factory price
3.Have stock and lead time quickly

hook tension lock

Shanghai PTC display equipment co.,lt is specialized in display & exhibition industry in Shanghai China.

Specifications:

1.For connection the aluminium exhibition system with 4.5mm groove.

2. 200kgs weight capactiy

3.Easy quick to assemble and disassemble for the booth

4. 3 years warranty

Application:

hook tension lock type	usage
Straight type	for connection beam to upright extrusion
High positio type	for connection 40mm max. or upright extrusion
Curve type	for connection curve beam to upright extrusion
45degree type	for connection 45degree beam

Total nine types of hook tension lock for all beams & upright extrusion.

Item NO.	Item Name
PTC-Z991	Low position steel hook tension lock

PTC-Z983	High position steel hook tension lock

PTC-Z981	Low positon Zinc Alloy hook tension lock
PTC-Z981-H	High position Zinc Alloy hook tension lock

PTC-Z963L	45 degree left low position steel hook tension lock
PTC-Z963R	45 degree right low position steel hook tension lock

PTC-Z963L-H	45 degree left high position steel hook tension lock
PTC-Z963R-H	45 degree right high position steel hook tension lock

PTC-Z961	Two slot Zinc Alloy hook tension lock

PTC-Z982	Curved steel hook tension lock

PTC-Z991W	Wide steel hook tension lock
no photo
PTC-F954	Wide swing steel hook tension lock

PTC-Z954	Wide Zinc Alloy hook tension lock
