Home > Packaging & Printing > Package & Conveyance > Packaging Tubes > Amico Imported Korea P600 Material HDPE PE100 Drainage

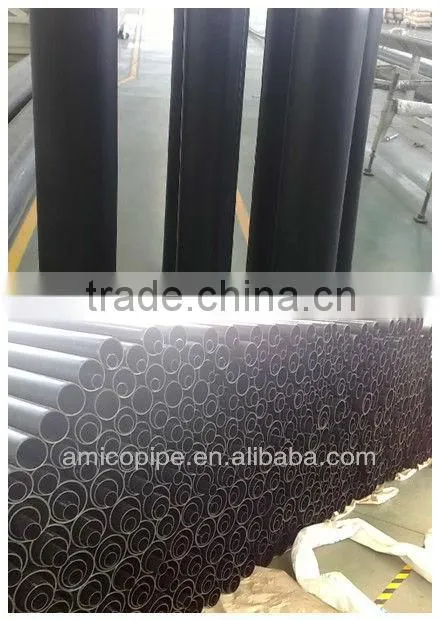

Amico Imported Korea P600 Material HDPE PE100 Drainage
US$ 2.22 - 200
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Amico
Material:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HDPE 100 Pipe for Water Supply System(Polyethylene Pipe)US$ 2 - 200MOQ: 1000 Meters -
ISO4427 DIN8042 HDPE Pipe for DrainageUS$ 2 - 200MOQ: 1000 Meters
-
PE 100 HDPE PIPE for Water SupplyUS$ 2 - 200MOQ: 1000 Meters
-
PE100 HDPE Pipe Fitting Butt Fusion Reducing TeeUS$ 2 - 200MOQ: 1000 Pieces
-
HDPE PE100 Pipes FittingsUS$ 0.3 - 8MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
Amico
Material
PE
Standard
DIN8074 ISO4472
| AMICO-PE PIPE | |||||
| Reference for ISO-4427,DIN 8074,ASTM D3035,BS-6437,GB/T13663-2000 | |||||
| HDPE80 Pipe Water Supply | |||||
| O.D.(mm) | Standard Dimensions | ||||
| SDR33 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
| Normal Pressure(Mpa) | |||||
| 0.4 | 0.6 | 0.8 | 1 | 1.25 | |
| e(mm) | e(mm) | e(mm) | e(mm) | e(mm) | |
| 20 | |||||
| 25 | 2.3 | ||||
| 32 | 3 | ||||
| 40 | 3.7 | ||||
| 50 | 4.6 | ||||
| 63 | 4.7 | 5.8 | |||
| 75 | 4.5 | 5.6 | 6.8 | ||
| 90 | 4.3 | 5.4 | 6.7 | 10 | |
| 110 | 5.3 | 6.6 | 8.1 | 10 | |
| 125 | 6 | 7.4 | 9.2 | 11.4 | |
| 140 | 4.3 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 4.9 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 5.5 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 6.2 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 6.9 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 7.7 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 8.6 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 9.7 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 10.9 | 16.9 | 21.1 | 26.1 | 32.3 |
| 400 | 12.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 13.8 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 15.3 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 17.2 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 19.3 | 30 | 37.4 | 46.3 | 57.2 |
| HDPE100 Pipe Water supply | |||||
| O.D.(mm) | Standard Dimensions | ||||
| SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
| Normal Pressure(Mpa) | |||||
| 0.6 | 0.8 | 1 | 1.25 | 1.6 | |
| e(mm) | e(mm) | e(mm) | e(mm) | e(mm) | |
| 20 | |||||
| 25 | 2.3 | ||||
| 32 | 3 | ||||
| 40 | 3.7 | ||||
| 50 | 4.6 | ||||
| 63 | 4.7 | 5.8 | |||
| 75 | 4.5 | 5.6 | 6.8 | ||
| 90 | 4.3 | 5.4 | 6.7 | 10 | |
| 110 | 5.3 | 6.6 | 8.1 | 10 | |
| 125 | 6 | 7.4 | 9.2 | 11.4 | |
| 140 | 4.3 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 4.9 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 5.5 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 6.2 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 6.9 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 7.7 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 8.6 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 9.7 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 10.9 | 16.9 | 21.1 | 26.1 | 32.3 |
| 400 | 12.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 13.8 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 15.3 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 17.2 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 19.3 | 30 | 37.4 | 46.3 | 57.2 |
WHO IS AMICO GROUP?
1.We are factory,more than 60 years history in Ningbo,China
2.Two Amico industry towns,more than 20 factories.
3.We are the biggest valves production and export base in China
4.Products including valves,faucets,water meter,kitchen sink,sanitaryware products and plastic pipe and fittings around water etc.
OEM ODM WELCOME
TRIAL ORDER WELCOME
More information, pls freely contact Emily
1.We are factory,more than 60 years history in Ningbo,China
2.Two Amico industry towns,more than 20 factories.
3.We are the biggest valves production and export base in China
4.Products including valves,faucets,water meter,kitchen sink,sanitaryware products and plastic pipe and fittings around water etc.
OEM ODM WELCOME
TRIAL ORDER WELCOME
More information, pls freely contact Emily
( mail: emilyyea at skype:emilyyea1)
