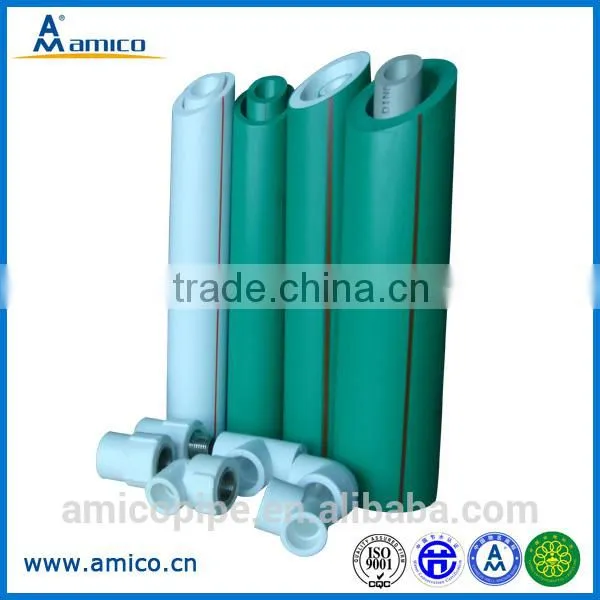

PPR Water Pipe With PN10 PN16PN20

Name: PPR Water Pipe With PN10 PN16PN20
Brand: Amico
SKU: 117702913
Availability: InStock

PPR Water Pipe With PN10 PN16PN20 thumbnail-1

PPR Water Pipe With PN10 PN16PN20 photo-1

US$ 0.22 - 25 MOQ: 1000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Amico

Model Number:

Ppr Pipe

Contact Supplier Request Quote Chat Now

Amico Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Amico

Model Number Ppr Pipe

Material PP

Specification dn20-160mm

Length 4m,6m or12m

Thickness Standard

Standard DIN8077-8078

AMICO PPR

Features:

Material: KOREA RP2400 Polypropylene
Sizes: 20 to160mm
Pressure Rating: 1.0MPa, 1.25MPa, 1.6MPa ,2.0MPa
Colors: light grey, white or other colors on request
Connection: socket fusion joint, electro fusion joint or transition joint
Certification: CE ISO9001, ISO14001,
Applications: Cold or hot water supply, heating system including flooring heating, wall heating and radiating system, Central air conditioning system, industrial liquids transportation

Advantages:

High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius
Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe
Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
Corrosion Resistant: resist chemical matters or electron chemical corrosion
Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes
Long Life: more than 50 years under normal conditions
Recycled and Environment-friendly

PP-R Water Supply Pipe

	PN 1.0MPa	PN 1.25MPa	PN 1.6MPa	PN 2.0MPa
Outer Diameter dn(mm)	Wall Thickness en (mm)	Wall Thickness en(mm)	Wall Thickness en(mm)	Wall Thickness en(mm)

20	2	2.3	2.8	3.4
25	2.3	2.8	3.5	4.2
32	2.9	3.6	4.4	5.4
40	3.7	4.5	5.5	6.7
50	4.6	5.6	6.9	8.3
63	5.8	7.1	8.6	10.5
75	6.8	8.4	10.1	12.5
90	8.2	10.1	12.3	15
110	10	12.3	15.1	18.3
160	14.6	17.9	21.9	26.6

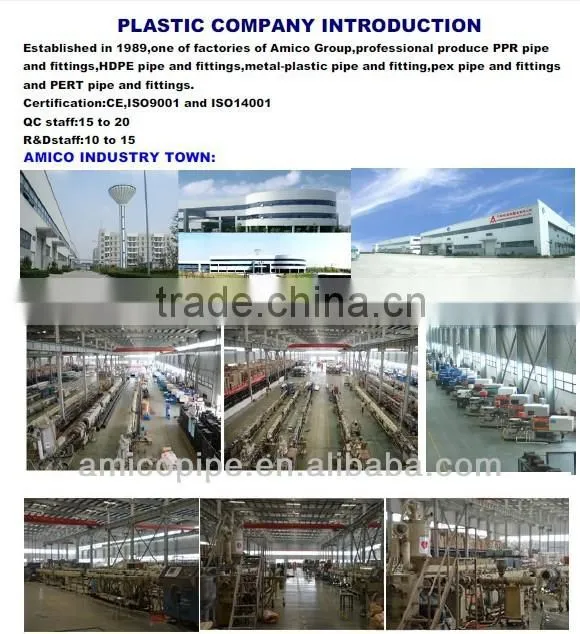

WHO IS AMICO GROUP?

1.We are factory,more than 60 years history in Ningbo,China
2.Two Amico industry towns,more than 20 factories.
3.We are the biggest valves production and export base in China
4.Products including valves,faucets,water meter,kitchen sink,sanitaryware products and plastic pipe and fittings around water etc.

OEM ODM WELCOME
TRIAL ORDER WELCOME

More information, pls freely contact Emily

(mail: emilyyea at skype:emilyyea1)
