Hot Selling Unlimited working length Acrylic Polishing Machine
Features of BT-1500DP
|
1.Equipped with endless rail way, can polish super long plate continuously, high efficiency. 2. High efficiency, low labor cost. 3. Low wastage of material. 4. High precision, the cutting thickness is adjustable in range of 0-0.5mm. 5. Environment friendly, no powder, low noise and low energy consumption. 6. Automatic polishing by machine, reduce labor injury. Click here to watch working video |
Model No. |
BT-1500DP |
Working Length |
Unlimited |
Max. Working Thickness |
80mm |
Power Supply |
AC380V +/-10% or AC220V+/-10% optional |
Rotating Speed Of Spindle |
2,000-20,000rpm |
Cutting Speed |
0-1,000mm/min (600mm/min is the best status) |
Spindle Ending Beat |
≤0.01mm |
Workbench Beeling Torlerance |
≤0.05mm |
Diameter of Dust Collector Mouth |
60mm |
Gross Power |
5.5kW |
Cutting Depth |
0-0.5mm adjustable |
Cutting Mode |
Spindle feeding |
Machine Dimension (L*W*H) |
Machine: 115x56x90cm. Dust collector: 68x53x58cm |
Package Dimension (L*W*H) |
Machine: 122x70x113cm. 0.97CBM, 420kg. Dust collector: 65x55x61cm,0.22CBM,86kg. Total 1.19CBM, 500kg |
Product show
2. Application
The machine is mainly used to polish plexiglass, acrylic, organic glass, PMMA, PETG, PE etc. It applies PCD and monocrystal cutting tools to material finely and get mirror finish cutting surface. After polished, the cutting surface roughness RA ≤20nm, tansparency ≥92%, no discoloring, especially perfect as light guide plate. It is the necessary machine to produce acrylic crafts, exhibition showcase, display shelf, LGP (Light Guide Plates) etc.
3. Advantage
Comparing with bench polisher and flame polisher, its advantage is higher efficiency but lower labor cost, lower wastage. The most important is the perfect mirror-like polishing finish it achieved.
Additionally, since it applies endless guideway, its working size is unlimited, so it is the poishing machine with the highest working efficiency.
4. Machine details
1) Ready machines in warehouse
2) Optional accessory: Extension worktable as below, throught it the machine can polish unlimited long material
3) Diamond Cutters

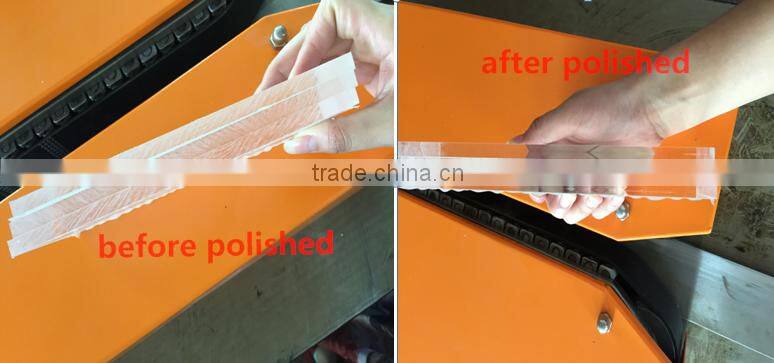

5. Samples polished by the machine
5.Warranty
2 years dating from you receiving the machine.
During warranty period, if some part is broken due to manufacturing defect, we will send you new part to replace by free cost and free shipping.
