29 pieces America standard metric sae tap and die set PT29-1
Unit packing:Metal case; 16 Sets in 1 Carton
1Carton size: 42X32X25 cm ; N.W/G.W= 24/25kg

can be used to clean up a thread, which is called chasing.

Product Description



Specifications



Model: PT29-1

Our Brand: TUNGSTEN

Metrail: Alloy steel Gcr15,9Crsior HSS4241/4341/6542/5341/M2 or Carbon Steel (optional)  HCR: 58-63 Package: Metal case

Color: Bright, Black,Golden Process: grinding,drilling,tapping,milling,stamping,heat treating,chamfering

1.OEM: Accpetable 2.Logo Printing: We can print your LOGO on the handle and package. 3.Free Samples: We are willing to provde free samples. 4.Payment term: T/T,L/C,Western Union,Paypal and etc. 5.Delivery: within 15-40 days after the order be confirmed   29 pieces America standard metric sae tap and die set



METRIC

5PC Dies size:M5×0.8, M6×1.0, M8×1.25, M10×1.5, M12×1.75 10PC Taps Size:same size as die (2PC each size) 1PC Tap Wrench 1PC Die Handle:1"OD 1PC T Type Tap Wrench 1PC Screwpitch Gauge

SAE

5PC Dies size:1/4NC20, 5/16NC18, 3/8NC16, 7/16NC14, 1/2NC13 10PC Taps:same size as die (2PC each size) 1PC Tap Wrench 1PC Die Handle:1"OD 1PC T Type Tap Wrench 1PC Screwpitch Gauge

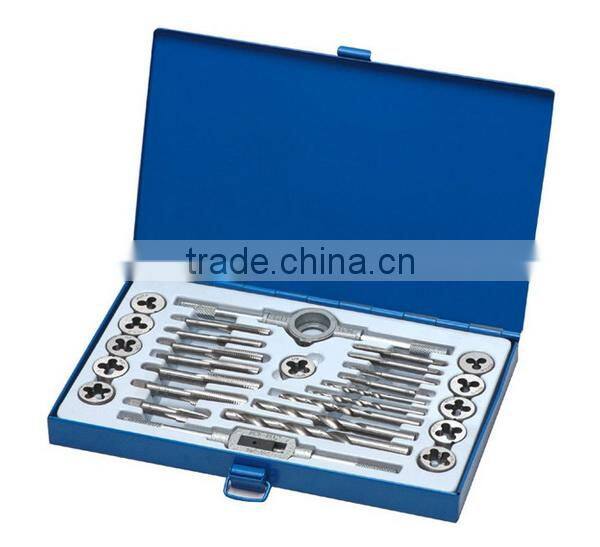

Pictures of  PT29-1

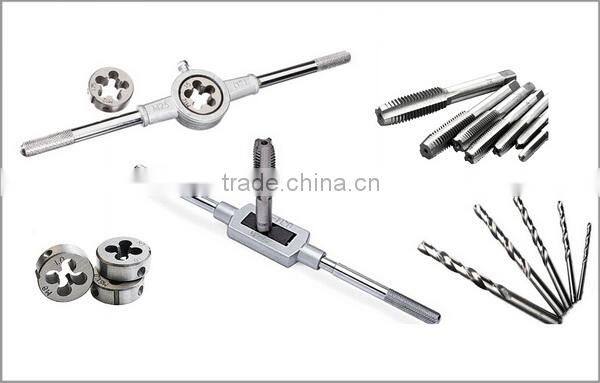

29PC Thread cutting Tools Kit contains:

11 Taps + 11 Dies + 5 Drill+1 Tap wrench +1 Die handle





Twist Drill bits







Threading taps and Dies  :

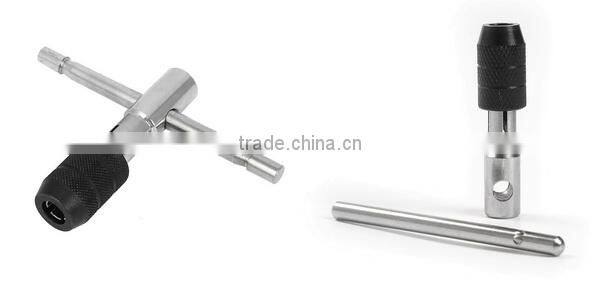

T Handle Tap wrench



 How to create outernal screw threads :

1.Choose the required thread diameter and the associated thread pitch.

2.Select a suitable bolt,and fix a suitable die in the die stock. Before positioning the die over the bolt, deburr workpiece and file it to a slightly taper.

3.Cut the outside thread by turning the die stock backwards and forwards several times. Keep the workpiece lubricated with cutting oil.State cutting only possible from the marked side.







How to create internal screw threads :

1.Choose the required thread diameter and the associated thread pitch.

2.Drill a pilot hole in the appropriate diameter.

3.Fix a suitable tap in the tap wrench. Cut the thread by truning the tapping tool backwards and forwards a few times,at the same time putting cutting oil into the drilled hole.











1) Competitive price.
    We have our own factory, so that the price we offer you is direct selling price. The more you order, the more discounts you will get.

2) High quality.
    We own professional technical forces, advanced equipment, precise measuring instrument, scientifically management systems, efficient and strong teamwork, which will promise high precision and high efficiency tools.

3) Quick delivery.
   There are many machines and staffs in our factory, your order will be ready soon, and also we have enough stock for every standard tools, so that the goods will be shipped very quickly.

4) OEM accepted.
   We are willing to make tools according to your requirement.

5) Personalized services.
   We are always ready to hear from you and will respond to your enquiry immediately. Free samples can be sent for your evaluation. Sample and product information updated promptly.

6) Abundant export experience.
   We have been exporting high quality tools to many different countries for 8 years. Our main markets are West Europe, North Eurape, North America, South America, Oceania and so on.
