Help CenterLocomotive Light MH250W -110VDC Digital Ballast
Related Products
Specifications
HPS/MH:35W,50W,70W,100W,150W,200W,250W,320W,400W,575W,600W,750W,1000W,1500Wboth voltage:110V/220V
Dimming function
UL and CE

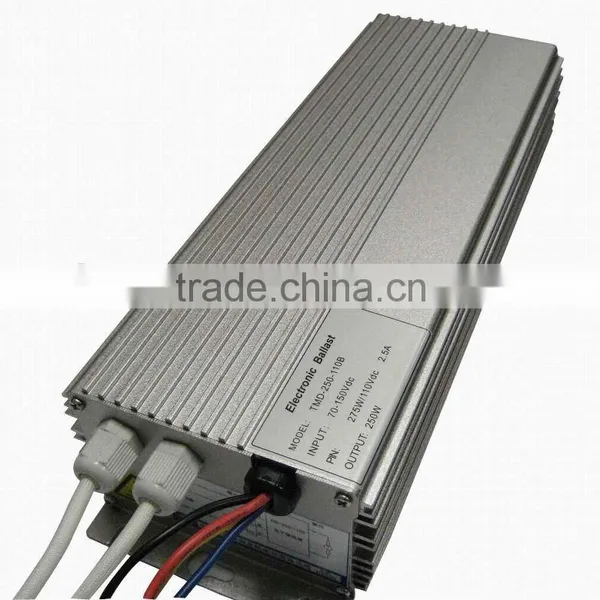

MH250W -110VDC Digital Ballast (TMD-250-110B)
Specification:
Voltage input range: 80Vdc~300Vdc
Input Power: 275W+/-10W
Rating V. In: 120/240Vdc
Power factor: >0.99
Efficiency: 90 %( Max)
Output load: One 250W Metal Halide Lamp
Output power: 250W+/-5%
Output voltage (lamp voltage): 85~155Vac
Output frequency: 100Hz+/-5Hz
Strike-voltage: >30KV
Time before full power output: ≤20s
Protection of short circuit: Available
Protection of open circuit: Available
Protection of ignition failure: Available
Protection of thermal: Available
Protection of end of lamp life: Available
Weight: 1.8kg/3.96lb
Max. Lamp distance from ballast: 15m/49ft
Operating temperature range: -30 º C~+50 º C
Dimension (L X W X H): 230X108X79 (mm)/9.055X4.252X2.283 (inch)
Max case temperature (T C): 90 º C
Safety and regulation: IEC61347
EMC: EN55015
