Specifications
1.durable DB serial cable2.more professional
3.aims to your request
Features:
UL2725,24#+28#,1P+2C+AL+B+D,OD:4.5mm
UL2725,28#+28#,1P+2C+AL+B+D,OD:3.8mm
As custom requirements,we could make only 2 cores to work as data cable or power cable
All material are RoHs complaint,cable is UL certificated.
High speed USB 2.0 Shielded AWM UL2725 VW-1 80c 30V 28AWG/1PR+28AWG/2C+AL+64 BRAID

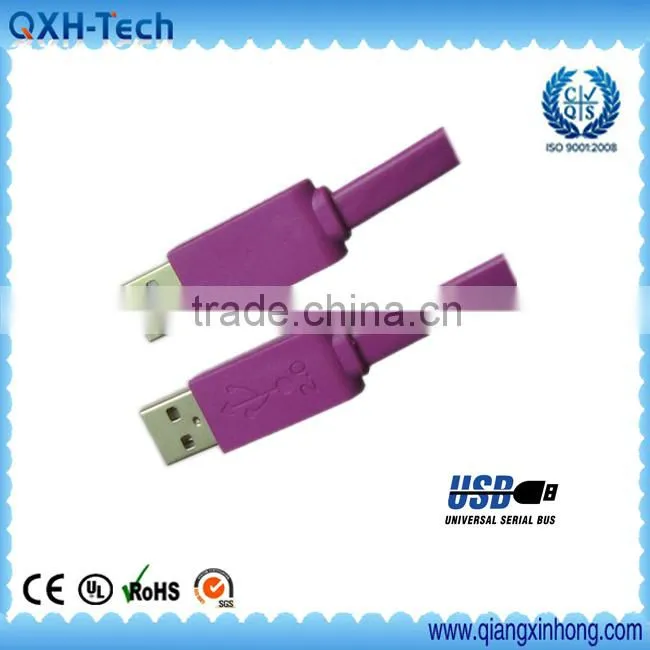

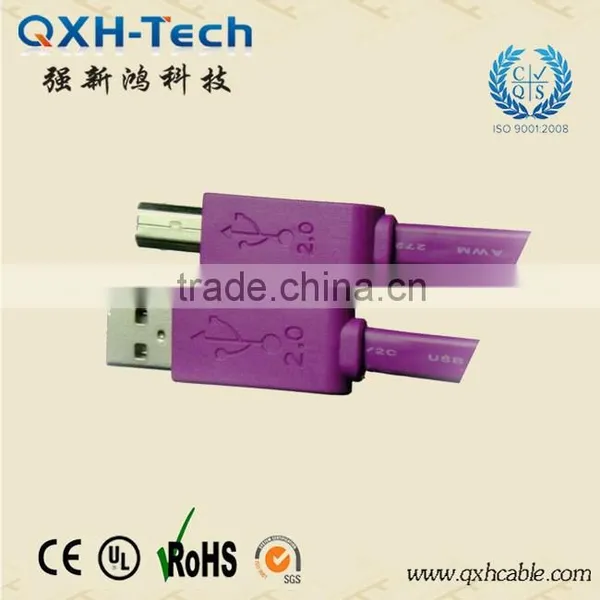

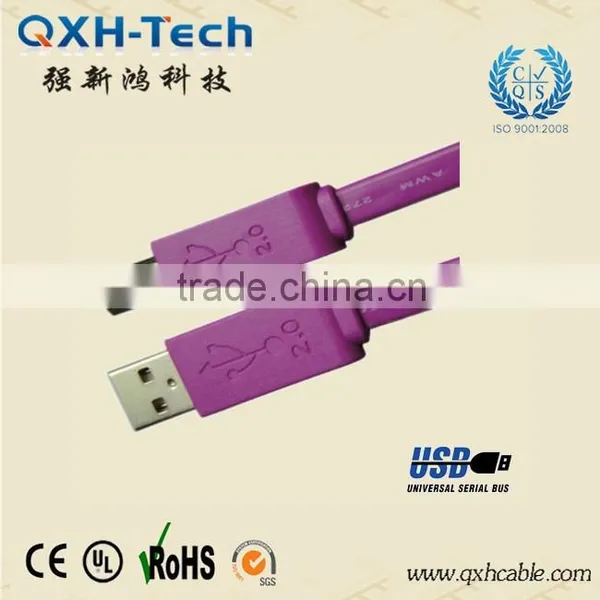

- · USB 2.0 Device Cable USB Connector Type A Male to Type B Males
- · USB 2.0 A/B Device / AM-to-BM Cable; 6ft Black with Hi-Quality Moldover
- · Supports up to 127 devices on a daisy-chain configuration. Fast, 480Mbit/sec transmission speed
- · 28-Guage high performance power wires with maximum USB performance
- · Molded strain relief and PVC overmolding to ensure a lifetime of error-free data transmissions
- · Use to extend a USB device such as printers, modems, scanners, digital cameras, etc
- · Compatible to all Microsoft Windows, Linux, Unix and Mac operating systems
- · Works with USB 1.0, USB 1.1 and USB 2.0 Devices
The Requirements of Wire Structure:
Signal Conductor |
28AWG (7/0.127) TC |
Insulation |
0.9=0.05MM, PE (202-3364), white/green |
Conductor |
28AWG~20AWG (7/0.127~0.30) TC |
Shield |
Aluminum foil |
Ground Wire |
28AWG (7/0.127) TC |
Braided Wire |
16/50.10TC |
Jacket |
PVC |
Electrical:
- 1. 100% open& short test
- 2. Hi-pot: DC 300V 10ms
- 3. Insulation Resistance: 10m OHM/ 300 V MIN
- 4. Contact Resistance: 0.01 OHM Max
- 5. Shield up to 65% braid
- 6. Working Temperature: - 25°C~ + 85°C
Mechanical:
- 1. Over mold: PVC 70Pa UL 94V-0 Black
- 2. Pre mold: PE Low Density
- 3. Contact: Copper Alloy
- 4. Insertion Force: 35 N Max
- 5. Withdraw Force: 10 N Min
Functions
The Broads USB cables are used to connect a USB device to a USB-ready PC or hub. They are constructed of the highest quality wire allowed by the USB 2.0 specification, which allows you to maximize the full potential of USB. Connect your USB printer, scanner, hard drive, and more to your computer. This Gold Series or Silver Series Hi-Speed USB 2.0 Cables transmits data without errors at speeds up to 480Mbps.
Application:Compatible with over 100 devices including: digital camcorders, digital cameras, MP3/MP4 players, cell phones, PDA, Digital CAMERAS, video games and more
