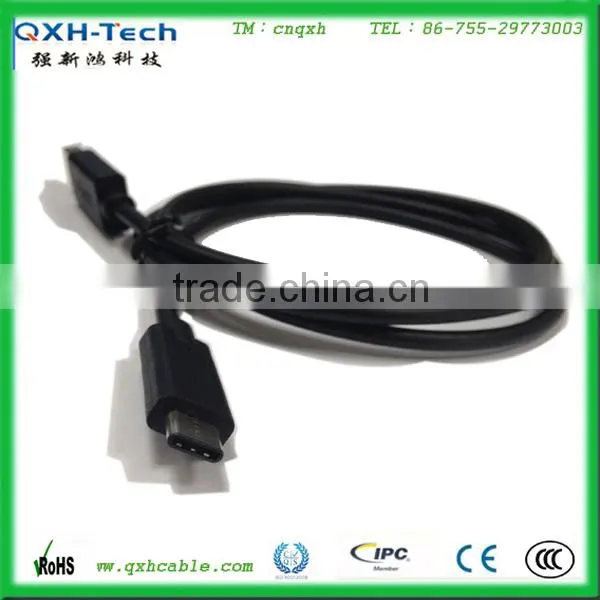

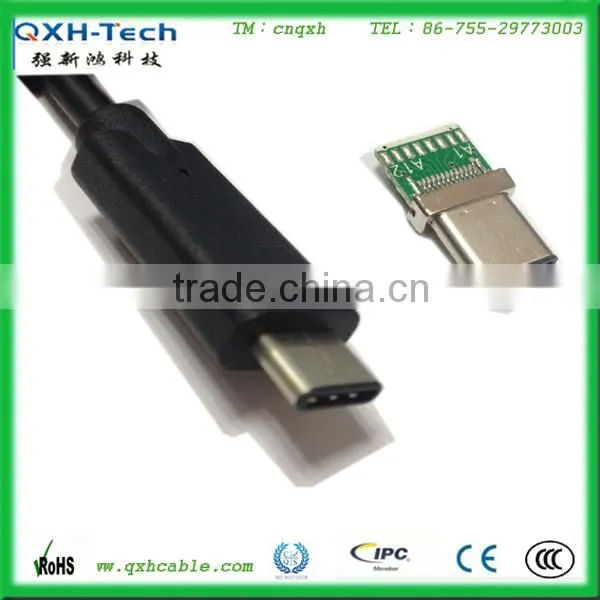

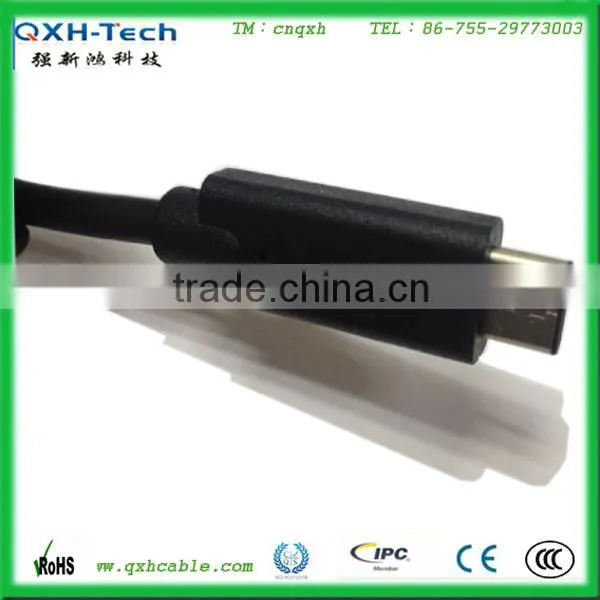

2015 Super Speed USB3.1 Cable Type C to AM
Specifications:
Item name |
Super Speed USB 3.1 Cable Type C to AM |
Connector |
USB3.1 cable male to female |
connector finish |
Gold or Nickel-plated connector |
Color |
Blue or black color available |
Length |
1-5M available |
Data speed |
USB3.0 super speed of up to 5GBps supported |
Compatibility |
Backward compatible with USB1.1&2.0, 3.0 |
Outer diameter |
4.5mm or 5.5mm |
Lines |
Standard 9 lines |
Conductor |
Bare copper or tined-copper |
Ferrite cores |
Optional |
.
Features:
- SuperSpeed Data Transfer Rate
- USB 31 Type C: both side plugable, no need to change to the correct side
- SuperSpeed USB 3.1 Delivers up to 10x USB 2.0's Transmission Rate
- USB 31 Cable Supports Full-duplex Data Transmission
- USB 3.1 is More Power Efficient
- USB 3.1 Cable Retains the Plug and Play Feature and is Fully Compatible with USB 2.0
- USB 3.1 Cable Connectors are Added 5 Channels Compared with USB 2.0 (4 of the 5 Channels are Used for a Full Duplex Data Transmission)
- USB 3.1 Cable Power Ability is 900mA. USB Hub Could Connect More Equipment at the Same Time (USB 2.0 is Only 100mA)
- Cable length: 6 Feet
- Backwards compliant with High-Speed USB 2.0 port (transfer rate at 480Mbps) as well as USB 1.1
- Supports 32-bit & 64-bit Windows XP/Server 2003/Vista/Server 2008/Windows 7 or later
Electrical:
100% open & short test
Hi-Pot: DC 300V 10ms
Insulation Resistance: 10M OHM /300V Min.
Contact Resistance: 0.01 OHM Max.
Shield up to 65% braid.
Working Temperature: -25oC ~ +85oC
Mechanical:
Over mold: PVC 70Pa UL94V-0 Black
Pre mold: PE Low Density
Contact: Copper Alloy.
Insertion Force: 35 N Max.
Withdraw Force: 10 N Min
Application:
2015 new digital device, thin smartphonel,tablet
