Help CenterHigh Quality Standard VGA to 4BNC Monitor Cable
Related Products
-
DVI to BNC Monitor CableUS$ 0.25 - 0.95MOQ: 500 Pieces -
15pin Male VGA to 4 BNC Female Plug CableUS$ 0.65 - 1.25MOQ: 1000 Pieces
-
DB25 to 16*BNC Cable for Security MonitorUS$ 0.15 - 0.95MOQ: 500 Pieces
-
3ft DVI to BNC Cable For MonitorNegotiableMOQ: 1000 Pieces
-
DVI to BNC Cable Monitoring and ControlUS$ 1.5 - 2MOQ: 500 Pieces
Specifications
1.Hig Quality 4Coaxial Cablenductor:tinned copper
3.RoSH Compliant,ULstandard cable
4.vga to 4bnc for monitor
Product Details :
1)VGA CABLE
2)VGA to 4BNC converter cable
3)L=1.5M,3M,5M,10M,15M Available
4)Connectors: HDB15P Male to 4*BNC male.
5)conductor:cu/cp optional
6)jacket:pvc mould
7)OD;8.5
Function Description:
Our Black high quality VGA TO 4BNC cable are designed to work with high end graphics workstation monitors, data projectors and other video display units using separate color and sync signals. These will also work in pretty much any application requiring 3BNC 4BNC or 5BNC, to be connected to an HD15 video source, as long as the video SOURCE puts the sync signals in the appropriate place. So if you have a video-card/device with a VGA/SVGA HD15 output, that can output sync on green, and a display that uses sync on green, you would simply hook up the R G and B connectors, leaving the H and V dangling. The cable itself will not take the horizontal and vertical sync signals, and set them up as sync on green or composite sync.

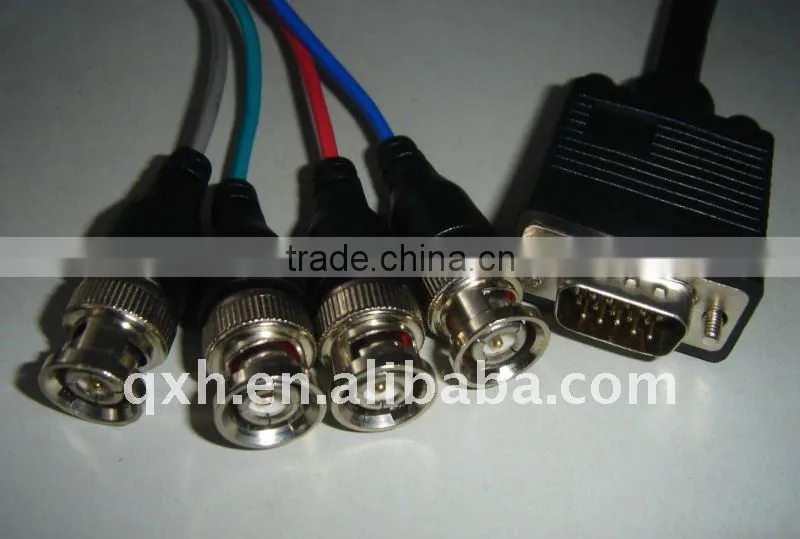

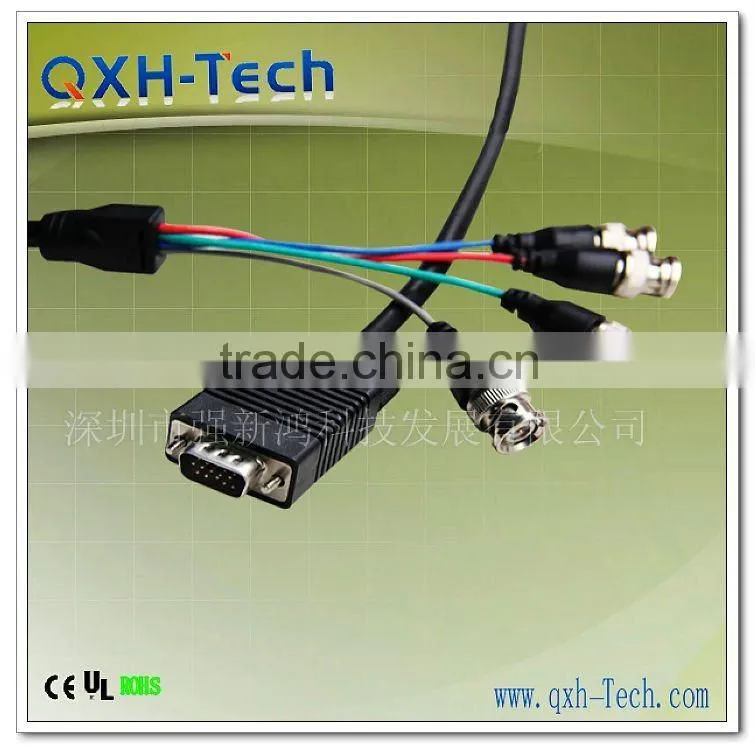

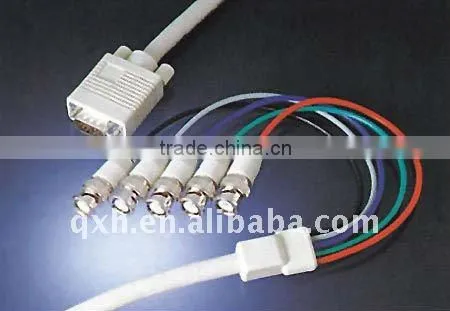

Pictures:
