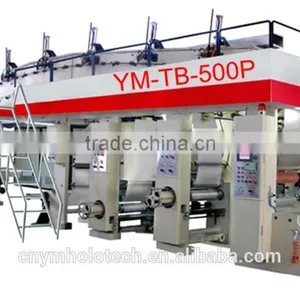

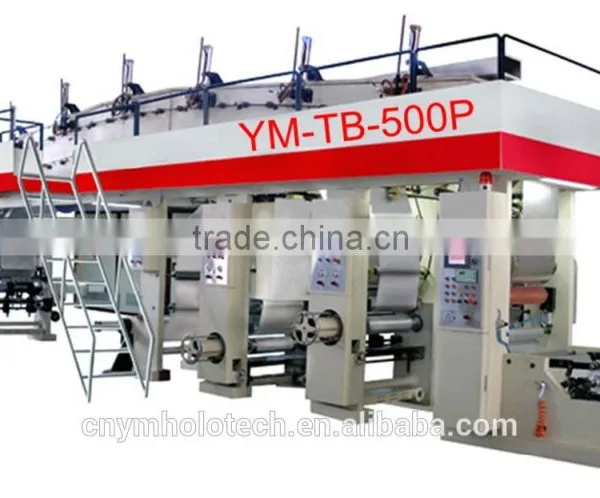

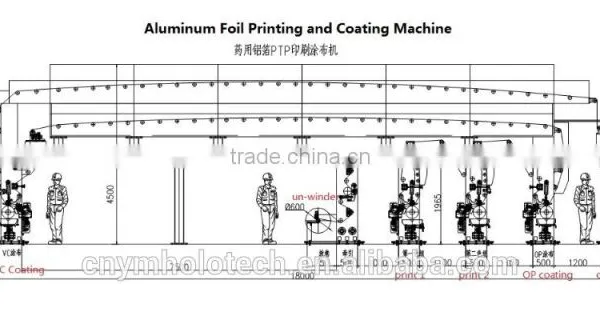

Medical Pharmacy Automatic PET film ,BOPP film, Al Foil Roller Coating machine is a precision-engineered that enables to meet the high requirement on pharmaceutical Aluminum foil printing and coating, which can finish 2 color printing, OP and VC coating in one process. This machine includes two heating layers, 8 drivers synchronization with automatic tension controlling. Automatic web guide and registered system provide high printing accuracy.
Feature :
1. Central PLC control with human- machine operation system.
2. 8 drivers synchronization with vector frequency conversion automatic exchange
3. Cast steel frame made by CNC machine provide high operation accuracy and stability.
4. Stainless steel heating oven with PID temperature controlling.
5. Shaft-less printing cylinder, quick exchange for different jobs.
6. Doctor blade printing method with stable printing pressure.
7. VC coating with electric mix roller provide high coating quality.
8. All guide roller is special treated for aluminum foil printing to reduce surface friction.
Specification:
Printing /coating material: Aluminum foil thickness: 15-30mic
Max Material width: 500 mm
Max Machine Speed: 150 m/min
Printing / Coating Speed: 30-150m/min
Max un-winder and re-winder O.D: un-winder: 600mm
Printing cylinder diameter 120-200mm
Printing unit 2 color sets
Printing accuracy +/-0.2mm
Coating weight OP: 0.8-1.5gsm
VC:2-4 gsm
Power: 360kW
Frame Size: L: 14500mm, W:3000mm, H:3800mm
Weight: 36ton
Web way: From left to right
