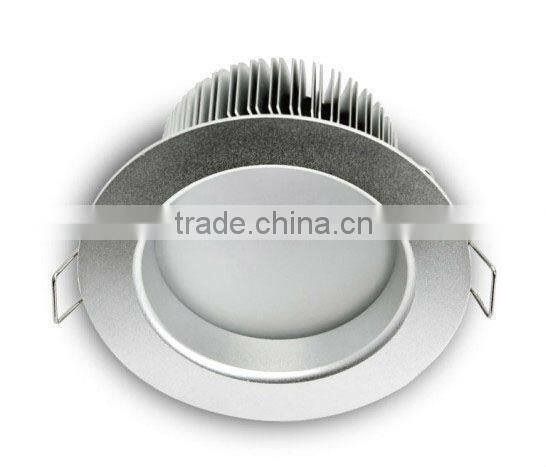

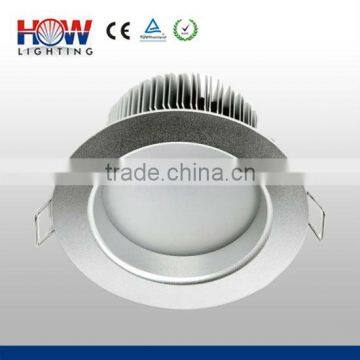

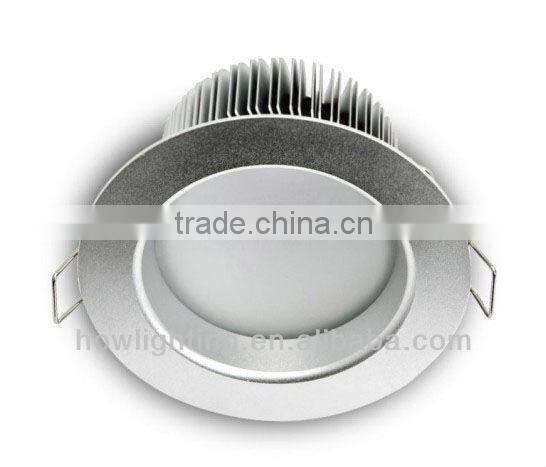

11W Samsung 5630 Led Downlight
- Ningbo or Shanghai
- T/T Credit Card
You May Like
Product Details
| LED Light Source | SMD5630 | Warranty(Years) | 3 | |
| Input Voltage(V) | AC 110/220V | Lamp Power(W) | 11 | |
| Lamp Luminous Flux(lm) | 700lm | Lamp Luminous Efficiency(lm/w) | 64 | |
| Color Temperature(CCT) | Warm White | Working Temperature(℃) | -20, 40 | |
| Working Lifetime(Hour) | 40000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, IP20 | Certification | CE, EMC, LVD | |
| Model Number | HL-DL-66 | Place of Origin | Zhejiang, China | |
| Brand Name | How-Lighting |
Product Description
Specifications
1.Voltage:AC 110/220V2.Power: 11W samsung 5630 led downlight
3.LED Type: SMD5630
4.Lumen: 700lm
Advantage:
1.Long service life
Led has longer lifetime compared to conventional light source. LED will last up to 25-30 years, therefore replacing them is not needed frequently.
2.Low energy consumption
Save up to 80% energy usage by replacing a conventional light source with LED bulbs. Electric fee and changing rates are reduced, therefore maintance costs can be decreased.
3.Environmental-friendly light source
LED light has not toxic materials and it does not pollute the environment. And also the emission of CO2 is 1/7 of incandescent light.
4.Athermancy and NO IR&UV
LED bulb produces less heart then the conventional lights. LED is operating at less than 60°,No burning fingers which means more safety. Also ,there is no IR and UV in the light beam of LED bulbs, making it suitable for illuminating heat-sensitive objects, such as cloth and paintings.Etc.
Product Feature:
Model number | HL-DL-66 |
Item | Samsung 5630 led downlight |
Voltage | AC 110/220V |
Powers | 11W |
LED Type | SMD 5630 |
LED Qty | 20pcs |
LED Chip | Samsung |
Color temperature | Warm white, Neutral white ,Coolwhite |
Lumen | 700lm(WW);740lm(NW);780lm(CW) |
Beam angle | 90° |
Body material | Aluminium |
Ra | >80 |
IP Rating | IP20 |

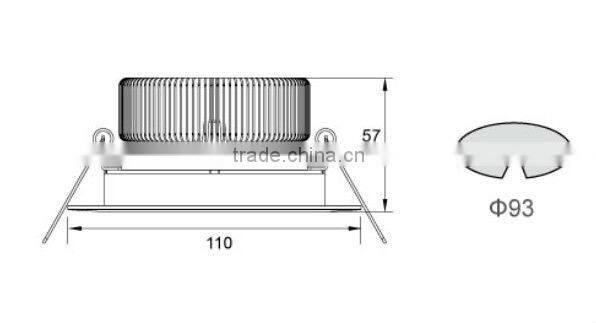

Size | Φ110*57mm(cutout Φ89-Φ95) |
Package | 59.5*31*24cm carton,16pcs/ctn. GS: 9kg/ctn |
Life span | 40000hours |
MOQ | 1000pcs |
Remark: We have white or silver housing for option. | |

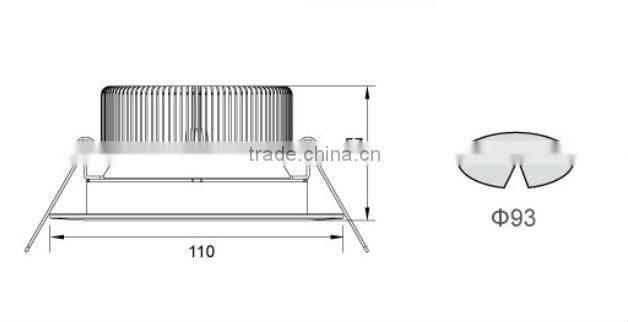

Size

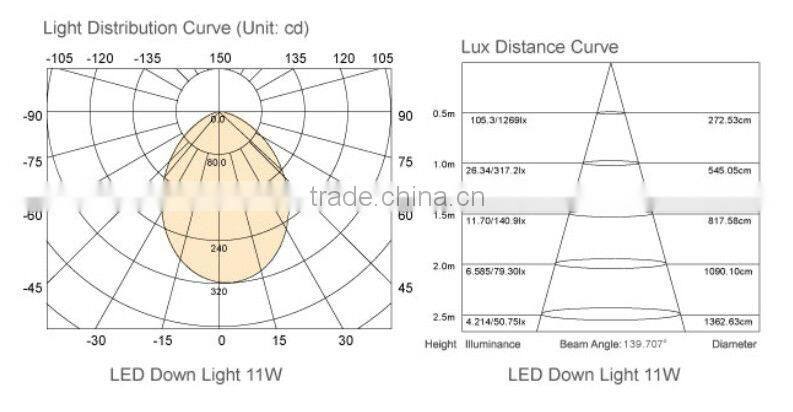

Test Report
We offer three CCT of 11W Samsung 5630 led downlight :
| CCT | Voltage | Power | Lumen | Current | Led Type | Led Qty |
| CW | AC 110/220V | 11W | 780lm | 700mA | SMD5630 | 20 leds |
| NW | 740lm | |||||
| WW | 700lm |
Product Series:
LED DOWNLIGHT 6x1W
Application:
Residential Buildings, Home , Office, Meeting Room , Factory, Warehouse Supermarket, Shopping mall,anywhere you want .
Trade Terms:
| Payment | T/T , 30% deposits before production, 70% balance to be paid before shipment |
| Production lead time | 30days upon deposit |
| MOQ | 1000pcs |
| 1) Sample can be ready in 1 week | |
| 2) Shipping freight are quoted under your requests | |
| 3) Shipping port:Ningbo or Shanghai (Mainland China) | |
