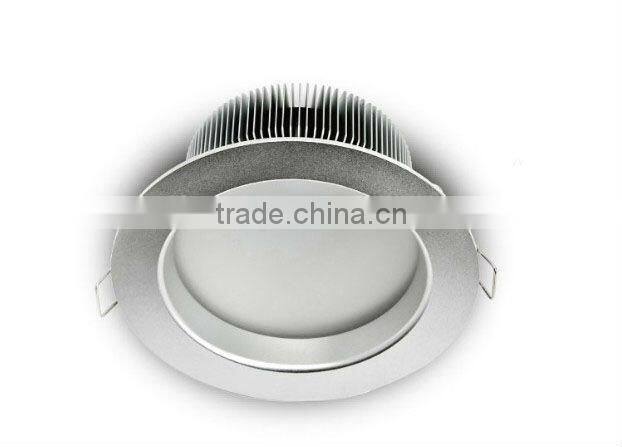

14W 220V SMD5630 Led Downlight
- Ningbo or Shanghai
- T/T Credit Card
You May Like
Product Details
| LED Light Source | SMD5630 | Warranty(Years) | 4 | |
| Input Voltage(V) | AC 220V-240V | Lamp Power(W) | 14 | |
| Lamp Luminous Flux(lm) | 860 | Lamp Luminous Efficiency(lm/w) | 61 | |
| Color Temperature(CCT) | Warm White | Working Temperature(℃) | -20, 40 | |
| Working Lifetime(Hour) | 40000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, IP20 | Certification | CE, EMC, LVD | |
| Model Number | HL-DL-69 | Place of Origin | Zhejiang, China | |
| Brand Name | How-Lighting |
Product Description
Specifications
1.Voltage:AC 220V-240V2.Power: 14W SMD5630 Led Downlight
3.LED Type:SMD5630
4.Lumen: 860lm
Advantage:
1.Long service life
Led has longer lifetime compared to conventional light source. LED will last up to 25-30 years, therefore replacing them is not needed frequently.
2.Low energy consumption
Save up to 80% energy usage by replacing a conventional light source with LED bulbs. Electric fee and changing rates are reduced, therefore maintance costs can be decreased.
3.Environmental-friendly light source
LED light has not toxic materials and it does not pollute the environment. And also the emission of CO2 is 1/7 of incandescent light.
4.Athermancy and NO IR&UV
LED bulb produces less heart then the conventional lights. LED is operating at less than 60°,No burning fingers which means more safety. Also ,there is no IR and UV in the light beam of LED bulbs, making it suitable for illuminating heat-sensitive objects, such as cloth and paintings.Etc.
Product Feature:
| Model number | HL-DL-69 |
| Item | SMD5630 Led Downlight |
| Voltage | AC 220V-240V |
| Powers | 14W |
| LED Type | SMD 5630 |
| LED Qty | 25pcs |
| LED Chip | Samsung |
| Color temperature | Warm white, Neutral white, Coolwhite |
| Lumen | 860lm(WW);910lm(NW); 950lm(CW) |
| Beam angle | 90° |
| Body material | Aluminium |
| Ra | >85 |
| IP Rating | IP20 |
| Size | Φ138*61mm(cutout Φ113-Φ122mm) |
| Package | 59.5*31*24cm carton,16pcs/ctn. GS: 10kg/ctn |
| Life span | 40000hours |
| MOQ | 1000pcs |
| Remark: We have white or silver housing for option. | |
Besides,we offer three CCT of 110V Led Downlight :
| CCT | Voltage | Power | Lumen | Current | Led Type | Led Qty |
| CW:5000k |
 AC 220V-240V
 | 14W | 950lm | 700mA | SMD5630 | 25 leds |
| NW:4000k | 910lm | |||||
| WW:3000k | 860lm |

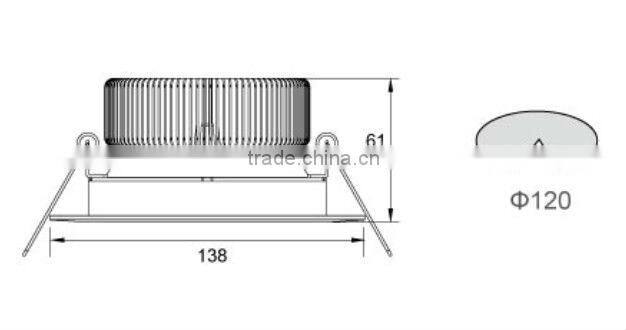

Size

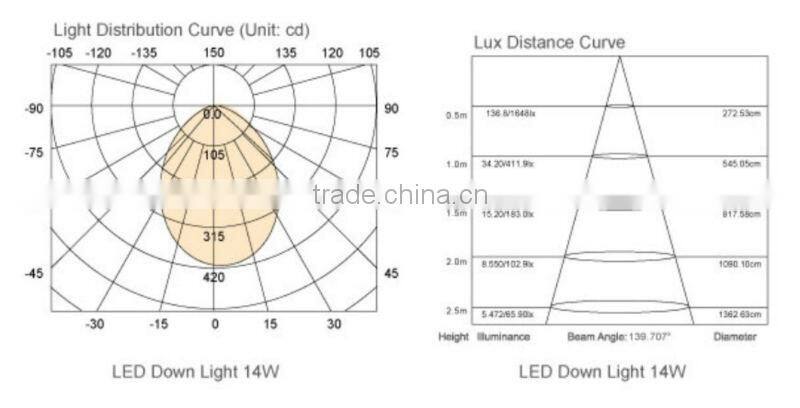

Test Report

Application:
Residential Buildings, Home , Office, Meeting Room , Factory, Warehouse Supermarket, Shopping mall,anywhere you want .

Product Series:

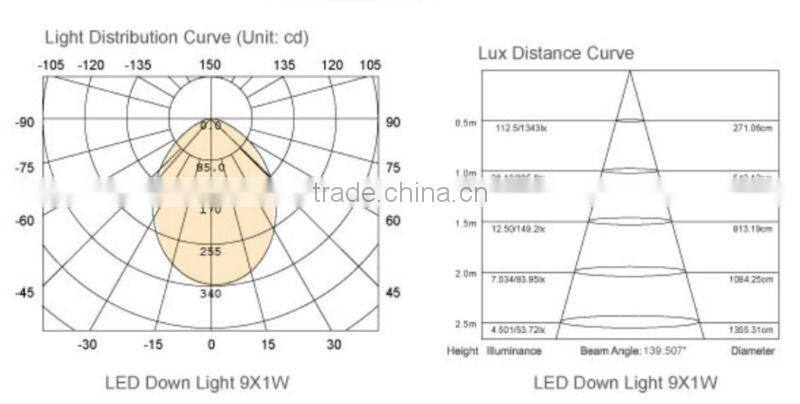

LED DOWNLIGHT 9x1W:
Trade Terms:
| Payment | T/T , 30% deposits before production, 70% balance to be paid before shipment |
| Production lead time | 30days upon deposit |
| MOQ | 1000pcs |
| 1) Sample can be ready in 1 week | |
| 2) Shipping freight are quoted under your requests | |
| 3) Shipping port:Ningbo or Shanghai (Mainland China) | |
Our Service:
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Distributorship are offered for your unique design and some our current models.
3.Protection of your ideas of design and all your private information.



Contact Us

                - Ningbo Haishu How-Lighting Co., Ltd.
- Contact namelinda zhou Chat Now
- Phone0086-574-88127880
- AddressRoom 1006-1007, HuiYa International, No.1107, North Tiantong Road, Ningbo, Zhejiang
