Mingfeng 50NC Pipe Bender Machine for Sale

FOB Price

US$ 6,000 - 6,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	Mingfeng Pipe Bender Machine	Model Number	DM-50NC Pipe Bender Machine
Machine Type	Pipe and Tube Bending Machine	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Carbon Steel	Power	Hydraulic
Automation	Other, semi-automatic	Extra Services	Machining
Certification	ISO 9001:2000	After-sales Service Provided	Engineers available to service machinery overseas

Pipe Bender Machine

Product Description

Specifications:

*Pipe Bender Machine

*Established in 2001, has more than 15 years experience in machinery and equipment manufacturing

*OEM service offered

*CE, ISO Certificate

*Competitive price

*Located in Zhangjiagang city at the center of Shanghai, Suzhou, Wuxi, Nanjing etc., transportation is very convenient

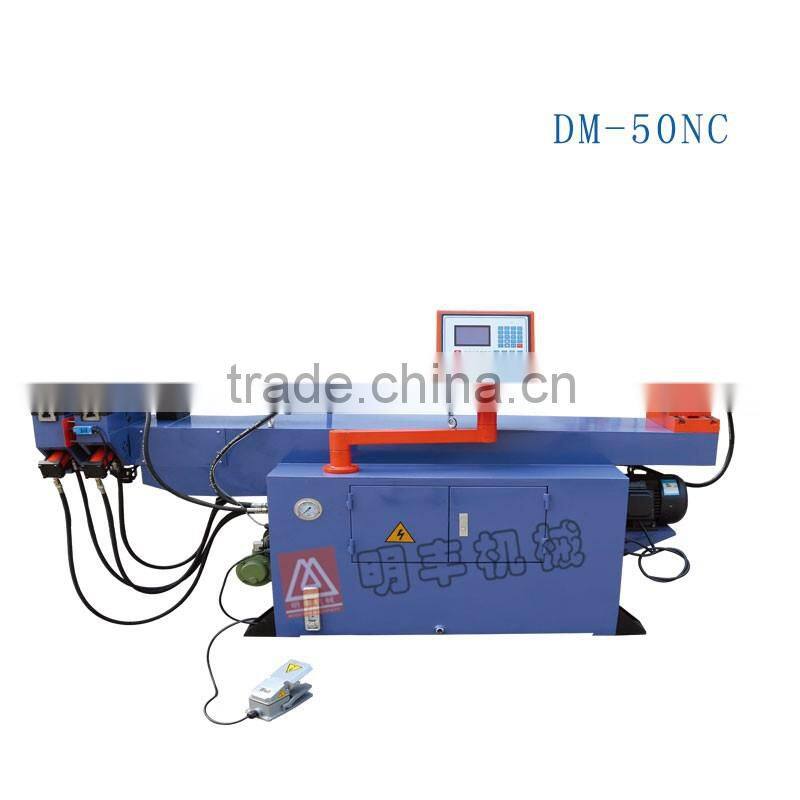

Mingfeng 50NC Pipe Bender Machine for Sale

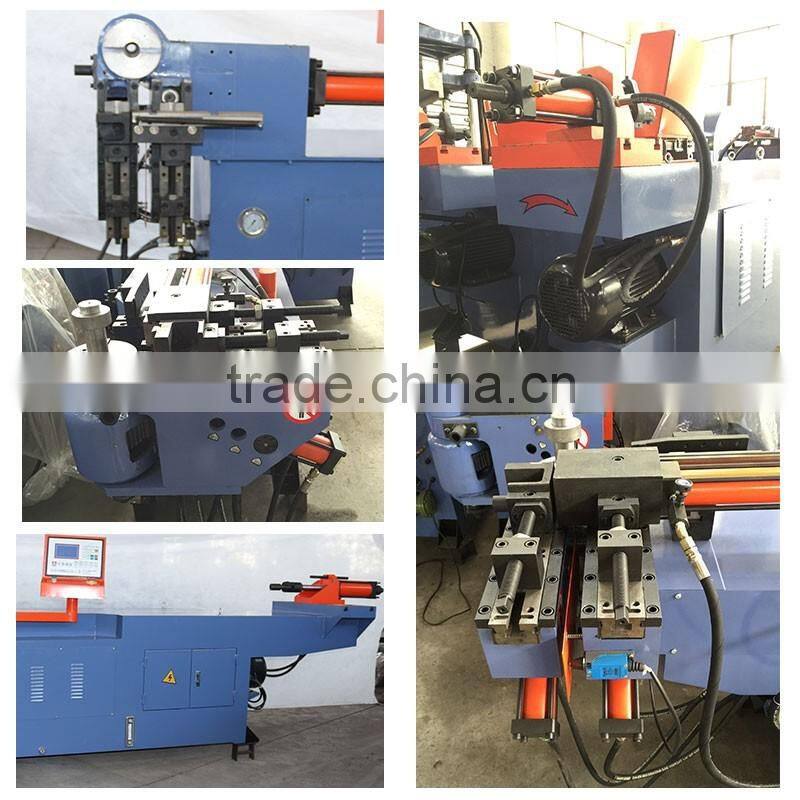

*Mechanical Features

1. Using NC modules, operated by man-machine conversation mode

2. Manual and automatic pattern can be chosen freely and automatically convert

3. Multi-angles can be set and controlled by multi-groups of procedures

4. Error message displayed on the screen to help the operator immediately excluded

5. With automatic counting, automatic core pulling and anti-wrinkle device (Except the vertical type)

6. With stable bed structure and anti-deformed

*Main Technical Parameters

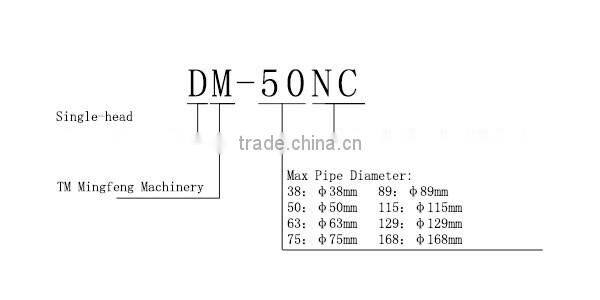

Model	DM50NC
Max-applicable steel pipe (mm)	φ50
Max-applicable stainless steel pipe (mm)	φ42
Maximum bending radius (mm)	R300
Maximum bending angle	190°
Maximum straight-length (mm)	2200
Oil pressure (Mpa)	14
Motor power (KW)	5.5
Machine size (L * W * H / mm)	3500×850×1000
Weight (kg)	1200

Mode	DM-50NC Pipe Bender Machine
Trademark	Mingfeng Machinery
Color	Blue
Warranty	One year warranty and lifetime maintenance
