Specifications
Low Temperature Cold Laminator,mainly used to solve the issue that cold laminated image are hazy.silicon roller;
roll to roll
63" 1600mm Full - auto Wide Format Low Temperature Cold Laminator
Features
• Solid built, laser - cut steel structure.
• 3" core auto - grip rollers for easy laminating film setup.
• 5.1" bigger up and down rollers for best quality laminating control.
• Single side Hand crank lift up system.easily laminate roll to roll;
• adopt low-heating system to prevent hazy and snow-point after cold lamination;
• It has simple structure, reasonable, humane and low cost characteristics.
• Adopt aluminum alloy supporting roller, which is easy to assemble and disassemble and can be used in exchange. The collecting rollers are dynamical rollers and the supporting rollers are without dynamic. All of the rollers are equipped with damp devices and are eligible for speed adjustment.
• The laminating-supporting roller and stripping roller are equipped with forelocks associating with standard 3-inch paper rolls.

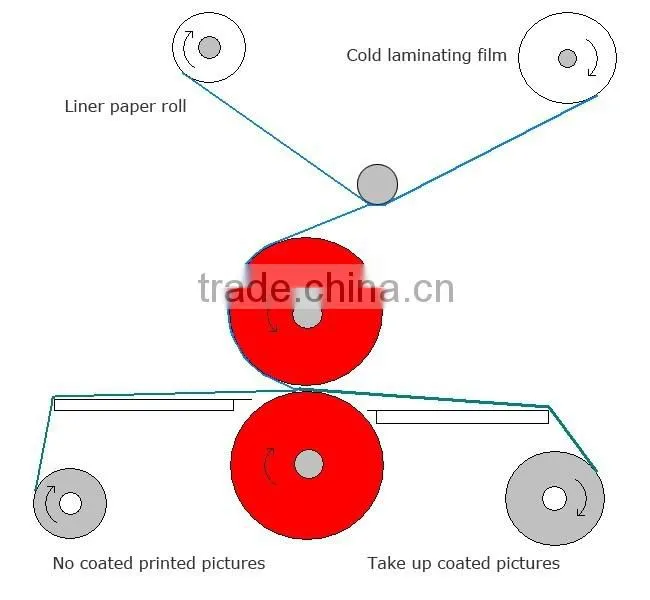

• It is operated conveniently and high efficiently - It realizes continuous laminating and longer picture laminating. Realize automatically stripping film and collecting liner paper through the rotary force of the upper and lower roller.
• Applying application tapes, applying double side adhesives and vinyl. can be widely used for pre-masking vinyl graphic, mount prints on substrate, over laminating inkjet prints and so on.
Details
|
|
|
3" core auto - grip rollers for easy laminating film setup Adopt new-style aluminum alloy supporting shaft, which is easy to assemble and disassemble and can be used in exchange. The prints rewind shaft is linked with motor and the unwind shaft is not. All of the shafts are equipped with tension brake system and are eligible for speed adjustment. |
High quality silicon rubber roller, 130mm (5.1inch diameter) Generally speaking, the lifespan of a roller is about 4-5 years or longer. The roller is the key component of a laminator and it directly affects the quality of lamination, so it is critical to give good care and maintenance to the roller. |
|
|
| The laminator is equipped with photoelectric safety switch to avoid external objects from entering the rollers. |
Working table with ruler, this machine’s table is very even. The feed table is more stable, and the laminating effective is better. |
|
|
|
| Easy operation panel: Forward, Backward, Foot Pedal Control and various speed adjustments, Emergency Stop Button. | Panel for covering the picture |
Model |
BFT-1600LH-II |
Maximum Laminating Width |
1600mm (63") |
Maximum Laminating Thickness |
25mm |
Laminating Speed |
0 - 6m (236") / min |
Forward / Reverse |
Yes |
Foot Pedal |
Yes |
Roller’s Diameter |
130mm (5.1") |
Maximum heating temperature |
60 degree |
Motor power |
90W |
Auto rewind liner pickup |
Yes |
After Laminating Pickup |
Yes |
Emergency Stops |
Yes |
Safety Photocell |
Yes |
| Media Core Size | 3" |
Power Supply |
AC 110V - 240V, 50Hz or 60Hz |
