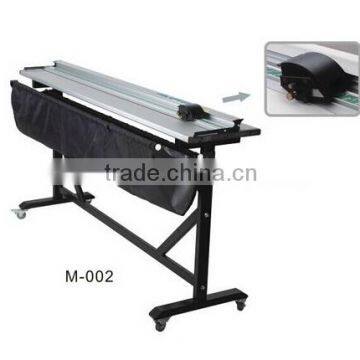

Help CenterM-002 60inch 1500mm Large Format Paper Trimmer Foam Board Trimmer Machine
Related Products
-
I-005 1600mm 63inch Large Format Paper Trimmer Machine With Support StandNegotiableMOQ: 1 Piece -
I-001 14 Inch Manual Precision Rotary Paper Guillotine Trimmer / Photo Paper CutterNegotiableMOQ: 1 Piece
-
I-002 24 Inch Manual Precision Rotary Paper Guillotine Trimmer, Rotary Paper Trimmer / Trimmer CutterNegotiableMOQ: 1 Piece
-
I-003 36 Inch Manual Rotary Paper Guillotine Trimmer, Manual Paper CutterNegotiableMOQ: 1 Piece
-
M-002 60Inch Aluminum Alloy Large Format Paper Trimmer Cutter With Support StandUS$ 350 - 420MOQ: 1 Set
This paper cutter not only applies to paper(thickness within 1mm) but also outdoor printing materials, such as KT board, PVC foam board, KAPA board(thickness within 8mm), etc.
It's breadth is 60 inch and board dimension is 1680*330mm
Its material is aluminum alloy with stand. This kind of paper cutter is all designed with automatically paper-fixing function.
The scale indicating both centimeter and inch makes it more accurate more convenient more efficient and more applicable, avoiding the move of paper fixed.
There are no rough edges on finished products, which is superior to other normal products with this regards

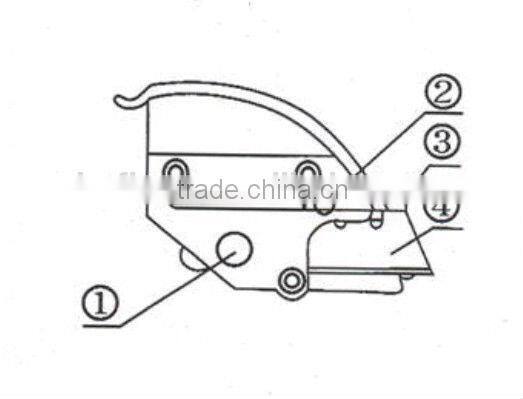

Installation of The Blade
(1) Fixing Bolt
(2) Depth-adjusting bolt
(3) Positioning Bar
(4) Blade
a.Release the fixing bolt(1) and depth-adjusting bolt (2) by anti-clockwise, and push the positioning bar (3) toward the right until the slot appears.
b. Insert the blade (4) into the slot of the positioning bar(3)
3.Push toward the left the depth-adjusting bolt(2) to the proper position, turning it by anti-clockwise until fixed, then turn the fixing bolt(1) by clockwise, now cutting is ready.
Model |
M-001 |
M-002 |
M-003 |
M-004 |
Max.cutting size |
1000mm/40” |
1500mm/60” |
2000mm/80” |
2500mm/100” |
Cutting capacity(sheets) |
12 |
12 |
10 |
6 |
Table Dimension(L*W) |
1180*330MM |
1680*330mm |
2180*330mm |
2680*330mm |
N.W |
8.5Kgs |
14.5Kgs |
47.5Kgs |
55Kgs |
Payment
1) T/T
2) L/C at sight or L/C 30 days
3) 30% Deposit in advance and balance should be paid before shipment based on you nominate the forwarder
4) 30% Deposit in advance and balance should be paid after you get the copy of B/L based on we nominate the forwarder.
Our Advantages
We promise:
1.Your reply will be replied within 12 hours.
2.We offer you professional service in fluent English.
3.Keep the mass production as the sample in high quality
4.Freight forwarder: faster, safer, and convenient.
5.Quality: we have QC on each process.
WE ARE PARTNER, WE ARE FAMILY
Befitter people are always paying great attentions to quality controlling from beginning to the end.
Every piece of roll laminators,cold laminators tested strictly one by one before packing.
