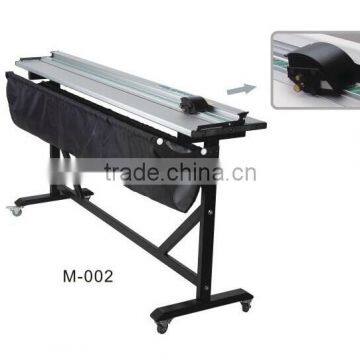

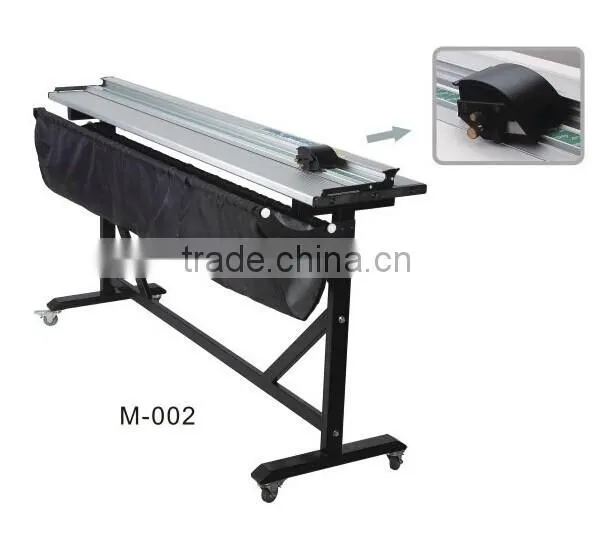

M-002 60inch 1500mm Large Format Paper Trimmer / Foam Board Trimmer

This paper cutter not only applies to paper(thickness within 1mm) but also outdoor printing materials, such as KT board, PVC foam board, KAPA board(thickness within 8mm), etc.

It's breadth is 60 inch and board dimension is 1680*330mm

Its material is aluminum alloy with stand. This kind of paper cutter is all designed with automatically paper-fixing function.

The scale indicating both centimeter and inch makes it more accurate more convenient more efficient and more applicable, avoiding the move of paper fixed.

There are no rough edges on finished products, which is superior to other normal products with this regards

Installation of The Blade

(1) Fixing Bolt

(2) Depth-adjusting bolt

(3) Positioning Bar

(4) Blade

a.Release the fixing bolt(1) and depth-adjusting bolt (2) by anti-clockwise, and push the positioning bar (3) toward the right until the slot appears.

b. Insert the blade (4) into the slot of the positioning bar(3)

3.Push toward the left the depth-adjusting bolt(2) to the proper position, turning it by anti-clockwise until fixed, then turn the fixing bolt(1) by clockwise, now cutting is ready.
