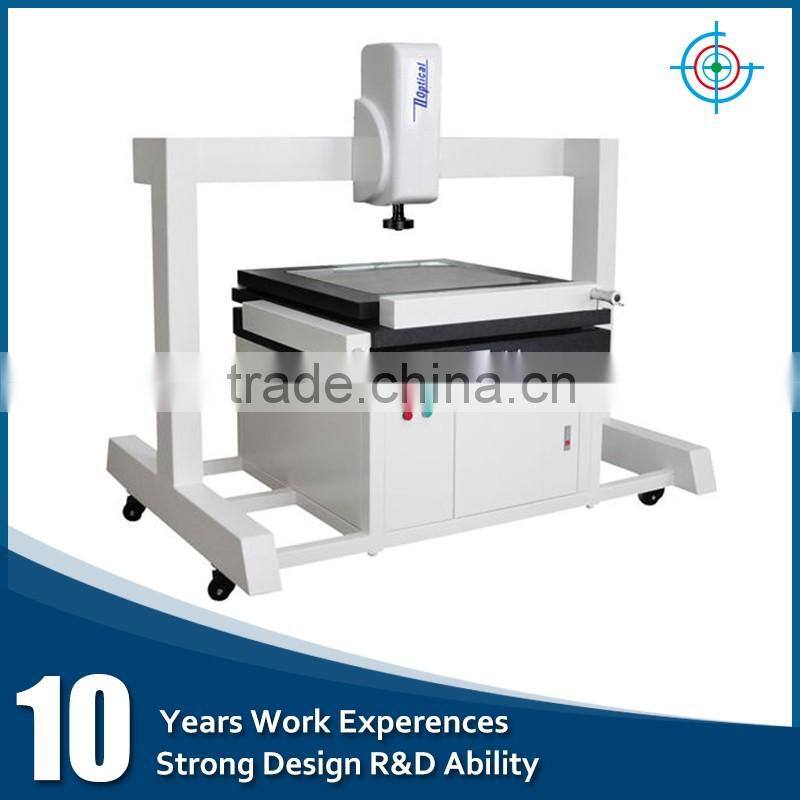

optical machinery
1. High precise and comprehensive measurement, Z-axis CNC control
2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable.
3. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
4. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.
5. With marble platform, high stability.
Specification:
Model |
NC-5050 |
||||||
|
Glass table Size(mm) |
550*550 |
|||||
Metal table Size(mm) |
900*900 |
||||||
Working travel X.Y(mm) |
500*500 |
||||||
Z-axis travel lift(mm) |
200 focus |
||||||
X.Y.Z-axis digital display resolution |
0.5um |
||||||
X.Y axis value error |
≤(3+L/200)L is the measured length,unit mm) |
||||||
Weight |
1400KG |
||||||
Dimession(mm) |
1700*1200*1750 |
||||||
Motor |
Z axis velocity |
100mm/s |
|||||
Three axis positioning accuracy |
0.001mm |
||||||
Image system |
Camare |
Sony color 1/3″CCD camera |
|||||
Zoom |
coaxial optical zoom lens with a zoom lens (2 select one) |
||||||
Zoom magnification |
0.7-4.5X |
||||||
Video total magnification |
30-230X |
||||||
Objector field |
11.1-1.7mm |
||||||
Power |
AC220V/AC110V |
||||||
Power consumption |
100W |
||||||
Insreument accessories |
1Xtube(option) |
0.5Xtube(option) |
Working distance |
||||
Zoom lens |
0.7-4.5X |
0.7-4.5X |
|
||||
Add lens |
Video magnification |
Material side field(mm)
|
Video magnification |
Material side field(mm)
|
|
||
0.5X option |
11.8X-74X |
22-3.4 |
5.9X-37X |
44-6.8 |
175 |
||
Standard |
23.5X-148X |
11.1-1.7X |
11.8X-74X |
22-3.4 |
92 |
||
2Xoption |
47X-296X |
5.5-0.9 |
23.5X-148X |
11.1-1.7 |
36 |
||
12 months warranty. Buy with confidence!
1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.
2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.
3. We provide life warranty services of machine for users with cost.
01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
02. But if needs our technician come to customer side for training, technical service is free,except ticket and accommodation.
4. Extra warranty period: We will provide to user after-sale long-life advisory service.
5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sales value added technical service by preferential price for life,
