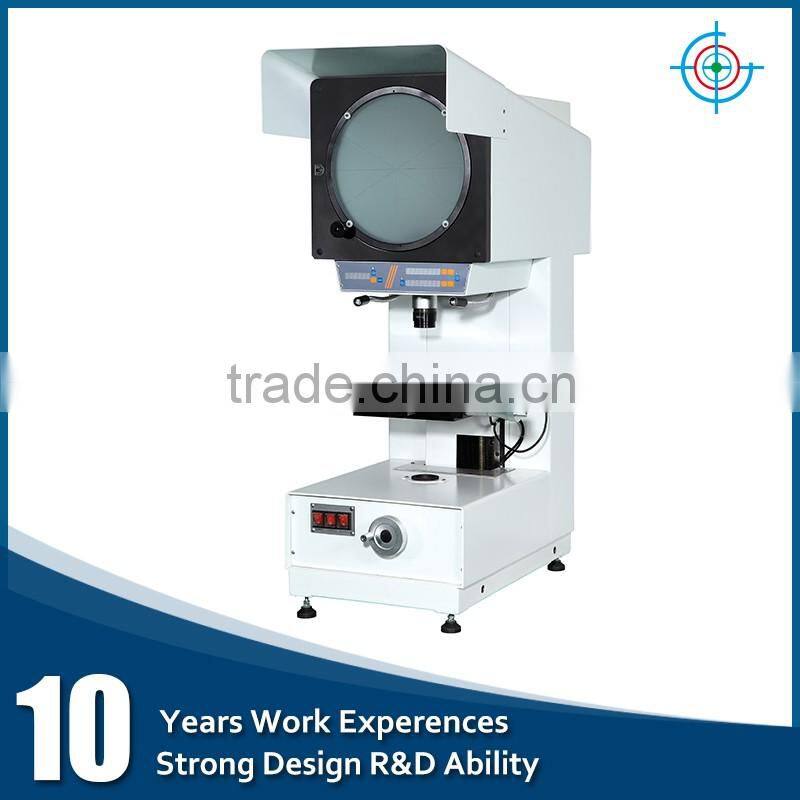

Rotation 360 Optical Measuring Vertical Profile Projector :
1. vertical profile projector is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.
2. rotation 360 optical mesuring vertical profile projector can inpect all kinds of surface and outline of compli-cated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.
3. optical measuring vertical profile projector widely used in the trade of mechanism, meter, electricity, ligt industry, college, research institute and measurement-inslecting department.
4. Measurement data can output and connect printer and computer.
2drotation 360 optical vertical profile projector specification:
Model |
CPJ-3015 |
|
|
Table |
The metal table’s size |
340 x152 mm |
The glass table’s size |
196x96 mm |
|
X-axis travel |
150 mm |
|
Y-axis travel |
50 mm |
|
Z-axis travel |
90 (for focus) |
|
Measuring accuracy |
3+L/200 um |
|
Resolution(X-axis,Y-axis): 0.001 mm | ||
Projector screen |
Screen size (mm): Ø 312 Used range>Ø 300(with the meter line) |
|
Screen rotary range: 0°~360° | ||
Resolution(X-axis,Y-axis): 1´ or 0.01° | ||
|
Lens |
Magnification: 10X option 20X option 50X option 100X option |
|
Object view(mm): Ø30 Ø15 Ø6 Ø3 | ||
Working distance(mm): 77.7 44.3 38.4 25.3 | ||
piece height: 80mm 80mm 80mm 80mm | ||
Data Processing System |
DP-100multi-function data processing system, appearing in English ,can be used to gather the data and measure the point , line, circle, angle and distance. |
|
Illumination |
The illumination of transmission and reflection: 24V/150W-halogen lamp. |
|
Power |
110V/220V(AC), 50/60HZ, Total power=400W |
|
Cold |
Forced air cooling |
|
Dimensions |
800*800*1150mm |
|
Weight |
130kg |
|
12 months warranty. Buy with confidence!
