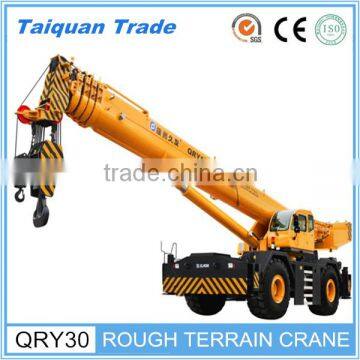

New 30 ton truck crane Type QRY30 Rough Terrain Crane
- 10 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
New condition Height adjustable SC100 Construction Building Elevator with high quality
-
New condition SC100/100 Double cage construction elevator
-
Best price Juli brand DD35 rod type diesel pile drive hammer with high quality
-
Juli brand DD25 rod type diesel pile drive hammer for Russia, Vietnam, Indonesia, Philippines
-
New condition Juli brand 400kN DD40 guide rod type diesel pile hammer China
-
China manufacturer sell DD series DD55 rod type diesel pile hammer for South-east Asia countries foundation project
Product Details
Condition | New | Application | Construction | |
Rated Loading Capacity | 30ton | Rated Lifting Moment | N.m | |
Max. Lifting Load | 30ton*3m | Max. Lifting Height | 29Mm | |
Span | -3~80 | Place of Origin | Jiangsu, China | |
Brand Name | XJCM | Model Number | QRY30 | |
Certification | CE/ISO9001 | Warranty | 12 Months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Torque limiter
Detecting function: Detect the angel of the boomautomatically.
Display function: Show operating information such as actual load, handling radius, boom angle.
Caution function: When the actual load exceeds rated lifting load, Torque limiter will give an alarm and stop the operation.
2. Swing table lock device
During the driving process, a plug device is used to connect the swing table and the carrier to keep the steering parts(swing table, boom)from swing caused by inertia.
3. Winch over-winding protect device
When the load reaches a certain height, torque limiter will stop the lifiting and indicating lihjy on the instrumentation board will be on.
4. Winch over-relaxation protect device
When only 3 laps of rope is left on the winch, torque limiter will stop the falling and indicating light on the instrumentation board will be on.
5. Outrigger lock device
During the driving process, a plug device is used. By plugging the outrigger, the device keeps it from extending.
6. Outrigger bidirectional hydraulic lock
Outrigger bidirectional hydraulic lock is used to keep both horizontal and vertical cylinder form retractation.
7. Rear axle steering lock and rear wheel return detector
During the driving process, only front axle steering is needed and the rear should be returned aligned. For this reason a lock device is uded and indicating light on the instrumentation board shows the status.
8. Emergency steering power device(emergency pump)
If there is an emergency that the engine can not be started, the crane can be dragged by other vehicles. The emergency pump is driven by battery and supplies power to cylinder.
Parameters
QRY30 Main technical parameters table in travel state | ||||
Category | Items | Unit | Parameters | |
Outline Dimension Parameters | Overall length | m | 11750 | |
Overall width | m | 2980 | ||
Overall height | m | 3600 | ||
Axle base | m | 3600 | ||
Tread | m | 2500 | ||
Weight Parameters | Dead weight in travel state | kg | 27700 | |
Axle load | Front axle | kg | 12880 | |
Rear axle | kg | 13720 | ||
Power Parameters | Engine rated output | kW(r/min) | 169/2500 | |
Engine rated torque | N.m(r/min) | 900/1400 | ||
Travel Parameters | Travel speed | Max. | km/h | 40 |
Min. | km/h | 1 | ||
Turning radius | Min. turning radius | m | 5.1 | |
Min. turning radius of boom head | m | 9.25 | ||
Min. ground clearance | mm | 400 | ||
Approach angle | ° | 21 | ||
Departure angle | ° | 21 | ||
Braking distance (at 30km/h) | m | ≤9 | ||
Max. grade ability | % | 55 | ||
Max. outside noise during accelerating | dB(A) | 86 |
QRY30 Main technical parameters table in lifiting state | |||||
Category | Items | Unit | Parameters | ||
Main performance parameters | Max. total rated lifting load | t | 30 | ||
Min. rated working radius | m | 3 | |||
Turning radius at swing table tail | m | 3.525 | |||
Max. load moment | Base boom | kN.m | 920 | ||
Fully-extended boom | kN.m | 560 | |||
Fully-extended boom + Jib | kN.m | 380 | |||
Outrigger span | Longitudinal | m | 6.08 | ||
Lateral | m | 6.5 | |||
Lifting height | Base boom | m | 9.6 | ||
Fully-extended boom | m | 27.9 | |||
Fully-extended boom + Jib | m | 36 | |||
Boom length | Base boom | m | 9.18 | ||
Fully-extended boom | m | 27.78 | |||
Fully-extended boom + Jib | m | 35.1 | |||
Jib installation angle | ° | 0,30 | |||
Working speed parameters | Luffing time | Boom rasing time | s | 75 | |
Boom descending time | s | 75 | |||
Boom telescoping time | Boom fully-extended time | s | 80 | ||
Boom fully retracting time | s | 50 | |||
Max. swing/slewing speed | r/min | 2 | |||
Outrigger telescoping time | Horizontal outriggers | Extending synchronously | s | 25 | |
Retracting synchronously | s | 15 | |||
Vertical outriggers | Extending synchronously | s | 25 | ||
Retracting synchronously | s | 15 | |||
Hoisting speed (wire rope os at the 4th layer) | Main winch | Full load | m/min | 80 | |
No load | m/min | 85 | |||
Auxiliary winch | Full load | m/min | 85 | ||
No load | m/min | 90 |
Xuzhou Jiufa Construction Machinery Co, Ltd. (XJCM) is a national high-tech enterprise which professionally designs, produces and deals with the rough terrain crane and other construction machinery. XJCM has the well-run technology and quality guarantee management system withISO9001 Quality Management System Certificate, ISO18001 Occupation Health and Safety Management System Certification,
CE Certificate and GOST Certificate. As the approved "Rough terrain crane Engineering Technology Research Center" by the Department of Science and Technology of Jiangsu Province, XJCM has the long-term research cooperation relationship with Jilin University. XJCM has 56 patents at present, including 15 patents for invention and 41 patents for utility models. XJCM main products include QRY series of rough terrain crane, QY series of truck crane, DGY series of multifunction pipelayer, TQK series of rapid traveling self-erecting intelligent tower crane, self-loading & self-unloading intelligent environment protecting truck and key parts of construction machinery,
etc. Thereinto, DGY series of multifunction pipelayer and self-loading & self-unloading intelligent environment protecting truck get the global patent for invention,
and TQK series of rapid traveling self-erecting intelligent tower crane is the pioneer product in China.
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.
3) What’s the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure. 1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.
3) What’s the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
