DMX 30leds/m rgb led strip ws2812b dc5v ip65 addressable

FOB Price

USD $1 - $8 / Meter

5 Meters(Min.Order)

Supply Ability 50000 Meter / Meters per Month
Port shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	Epister5050	Type:	Flex LED Strips	Input Voltage(V):	DC5V
Lamp Power:	7.2W/M	Lamp Luminous Flux(lm):	18lm	Color Temperature(CCT):	full color
Working Temperature(℃):	10, 50	Working Lifetime(Hour):	50000	Lamp Body Material:	Copper
Certification:	CE	Emitting Color:	Other, yellow/red/green/blue/white	Place of Origin:	Guangdong, China
Brand Name:	TS	Model Number:	TS-WS2812-30

Product Description

DMX 30leds/m rgb led strip ws2812b dc5v ip65 addressable

Model number	TS-W2812-30
LED TYPEE	SMD 5050 RGB chip
Available color	RGB
IC Model	WS2812B (W2811 IC built -in 5050 RGB led chip )
Color	Addressable full color
View angle	120 degree
LED QTY	30LEDS/M
POWER	7.2w/m
PCB Width	10mm
Voltage	DC5V
Installation	wiht 3M adhesive back ,easy for installation
IP rate	IP20/IP65(Silicon tube )/IP67/IP68
Package	5M/reel .with anti-static bag
Application	indoor /outdoor decorative lighting ,ceiling lighting ,sign lighting etc.

The compared of W2812b 30leds/m , 60leds/m ,144leds/m led strip

TYPE	30leds/m	60leds/m	144 leds/m
IC	W2812B	W2812B	W2812B
PCB width	10mm	10mm	12mm
standard length	5 meter/roll	5meter /roll	1 meter/roll
PCB color	white/black	white/black	white/black
Voltage	DC5V	DC5v	DC5v
Watts	7.2w/m	14.4w/m	34.56w/m
cutted	per 1 LED	per 1LED	per 1 LED

Detail use information:

HOT sale 144leds/m rgb led strip ws2812b dc5v

1)Addressable full color led strip (WS2812b ) ----WS2811 ic built-in 5050 RGB led chip

2)144pcs led per one meter

3) individually control ----------1 ic& 1 led chip

4)same as our WS2801or APA 102C addressable strip ,this one cut-able each single led .

Connection:

HOT sale 144leds/m rgb led strip ws2812b dc5v

SPI signal :LED strip+ LED power supply +led controller

DMX control :LED strip + LED power supply+DMX controller +DMX decoder

LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online)

LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )

Controller and Power supply:

T-1000S +Meanwell power:

Detailed Images

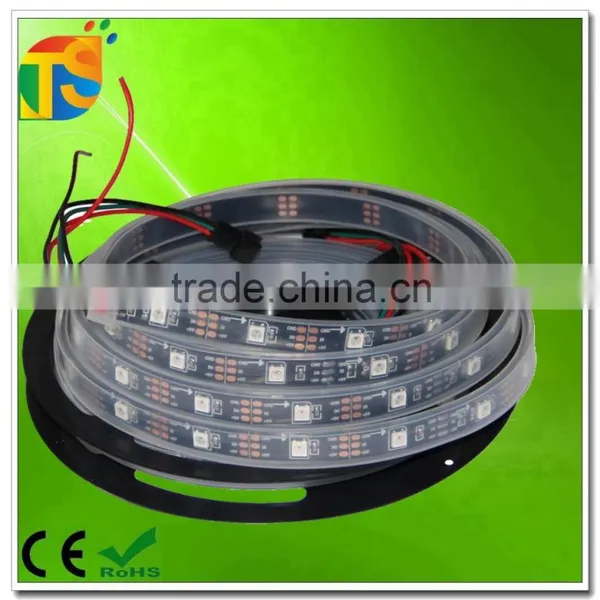

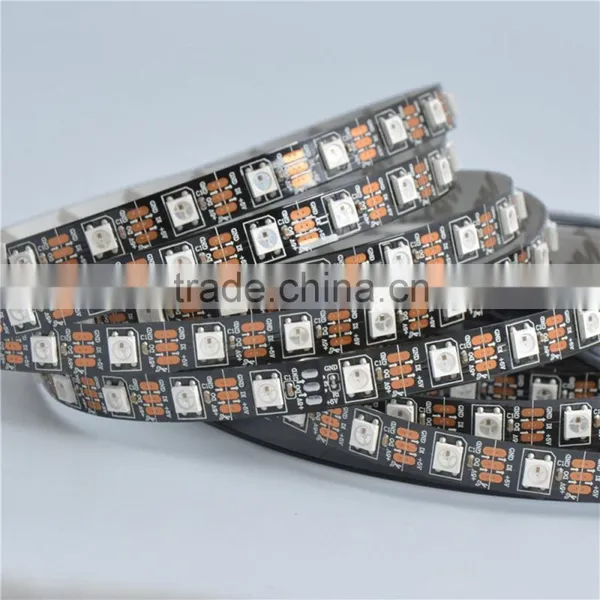

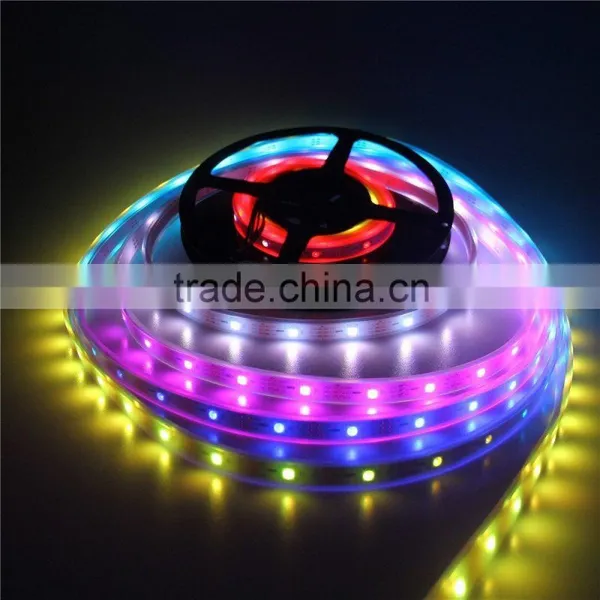

Addressable WS2812B 30/60/144 LEDS /m led strip

Addressable APA102 60LES/M led strip

LED digital Bar RGB WS2801 led stirp

Application

house decorative lighting

outdoor lighting

logo decorative lighting

Certificate

Payment & shipping

Payment:

Standard payment Terms : pay 30% deposit in advance ,70% banalce before shipment

On-line Trade Assurance Order ,All is up to you !

More payment Tems could be provide!! ( T/T .Paypal .Western Union )

SHIPPING:

15-25 working days aftern payment receipt confrimed (Based on Actual Quantity)

Packing :standard export packing or according to customer's demend

Professional Hazards Goods shipping Forwarders
