Led Pixel Strip 4 Pin Led Strip Connector With Apa102c 30 Led Pixel Strip

Led Pixel Strip 4 Pin Led Strip Connector With Apa102c 30 Led Pixel Strip thumbnail-1
Led Pixel Strip 4 Pin Led Strip Connector With Apa102c 30 Led Pixel Strip thumbnail-2
Led Pixel Strip 4 Pin Led Strip Connector With Apa102c 30 Led Pixel Strip photo-1
Led Pixel Strip 4 Pin Led Strip Connector With Apa102c 30 Led Pixel Strip photo-2
US$ 6 - 9 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
Epistar 5050 RGB LED Chip
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen Kaixinliang Technical Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar 5050 RGB LED Chip
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 7.2W/M
Lamp Luminous Flux(lm) 18-20lm/led
Color Temperature(CCT) RGB
Working Temperature(℃) -10, +40
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name TS
Model Number TS/F-APA102-1030
Product Description

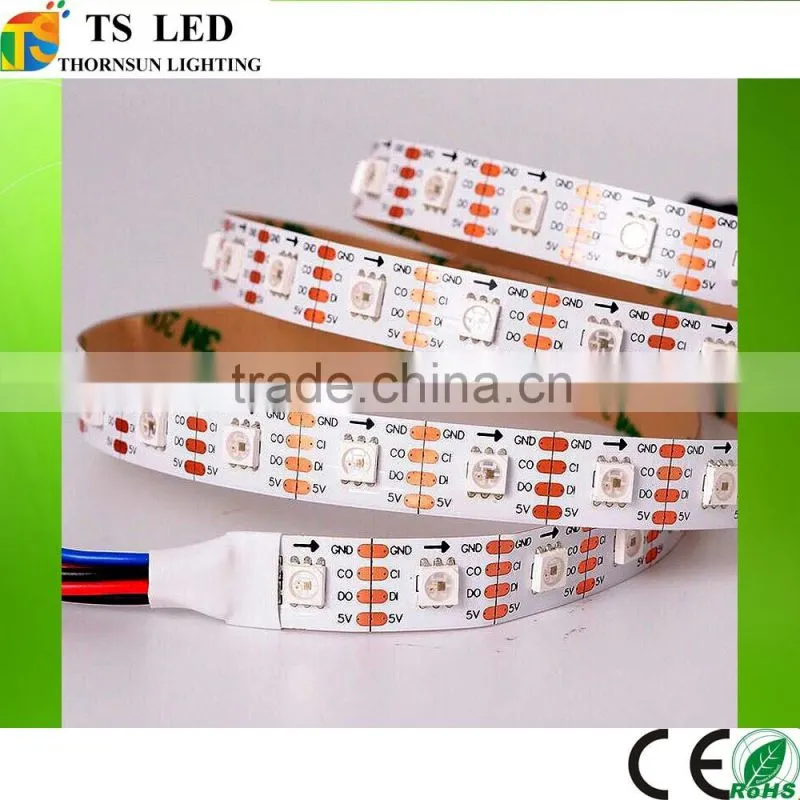

SMD 5050 30 led full color flex strip RGB with APA102c

DC5V RGB color addressable APA102C LED pixel strip



LED Chip

SMD5050 RGB LED chip

IC Chip

APA102c(IC built-in 5050 RGB LED chip)

LED Quantity

30LEDs/m

Input Voltage

DC5V

Watts

7.2W/M

IP Rate

IP20(non-waterproof), IP65(Silicon-tube waterproof)

PCB Color

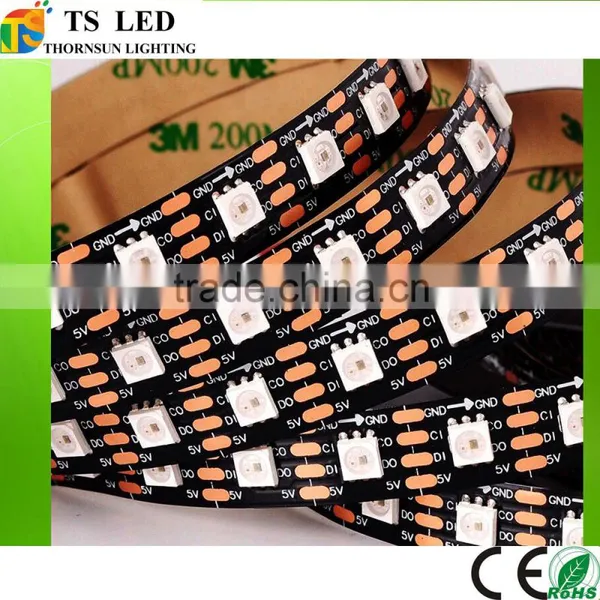

White PCB, Black PCB

View Angle

160°

Standard Reel Length

5meter/roll, also can be customized

PCB Width

12mm

Operating Temperature

-20 ~ +40°C

Storage Temperature

-40 ~ +80°C

Color

Addressable full color





Feature:

1. LED Resource: SMD 5050 RGB Led + APA102c

2.Addressable full color led strips :apa102c IC built-in 5050 RGB LED chip.

3. Led : Each LED separately controlled,60IC/meter (1 IC drives 1 led chip)

4. Colors: Full color RGB, dream color changing

5. Grey Scale: 256
6. Light Intensity:R 300-330mcd/led ,G 420-460mcd/led,B 160-180mcd/led

7.Standard Reel Length: 5meter/roll, also can be customized.

8.Cuttable: Each integrated RGB LED per segment, can be cutted per 1LED.

9.Sticky: with 3M adhesive on back side for sticky.



The compared of apa102c  30leds/m, 60leds/m, 144leds/m:

       Product Model

Type

TS/F-apa102c-1030

TS/F-apa102c-1060

TS/F-apa102c-10144

LED Qty./m

30LEDs/m

60LEDs/m

144LEDs/m

IC Type

APA102c

APA102c

APA102c

PCB Wide

10mm

12mm

12mm

Standard Length

5meter/roll

5meter/roll

1meter/roll

LED Color

Dream Color RGB

Dream Color RGB

Dream Color RGB

PCB color

white/black

white/back

white/black

Voltage

DC5V

DC5V

DC5V

Watt/m

7.2W/M

14.4W/M

34.6W/M

Cutted

per 1 LED

per 1 LED

per 1 LED

IP Grade

IP20 IP65

IP20 IP65

IP20 IP65

  Product Overview for Led Pixel Strip:

led pixel strip 4 pin led strip connector with apa102c 30 led pixel stripled pixel strip 4 pin led strip connector with apa102c 30 led pixel stripled pixel strip 4 pin led strip connector with apa102c 30 led pixel strip



led pixel strip 4 pin led strip connector with apa102c 30 led pixel strip

Connection way:



DC5V RGB color addressable APA102C LED pixel strip



SPI signal: LED Strip+LED power supply +LED controller



DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder



LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...



(offline / PC online)



LED power suppply: Meanwell power supply, T- series, A- series power supply...



(waterproof / non-waterproof)





Packaging & Shipping



sually 5meter/roll, 1roll/bag

waterproof: 60rolls/carton, 17.5KG/Carton

non-waterproof: 90rolls/carton, 12.4KG/Carton(Volume Weight)

Carton Size: 46cmx27cmx46cm



Our Services



1. For all your inquires about us or our products, we will reply you in detail within 12 hours.



2. We own well-tranied and passional sales & after-sale services who can speak fluent Engligh language.

3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.



4. We have very experienced R&D engineers and we have strong ability to do ODM projects



Company Information



Thornsun lighting(hk) Co., Limiteis a professional LED Lamp and accessories manufacturer for many years, We are specializing in research, manufacturing and sales of LED lighting products."Attitude is everything" is the spirit of our company. Choosing Sumbrisk means you have chosen satisfaction!
