Help CenterF4 PTFE Hollow Rod
Related Products
Specifications
F4 PTFE hollow rod1).both 100% virgin PTFE resin and recycled materials are available
2).MOQ:50pcs.
3).payment term:T/T,WU.

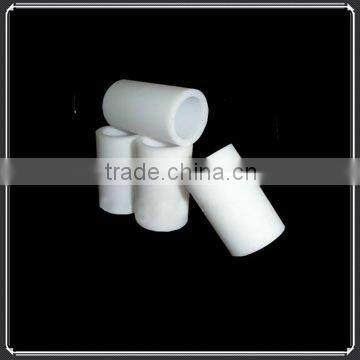

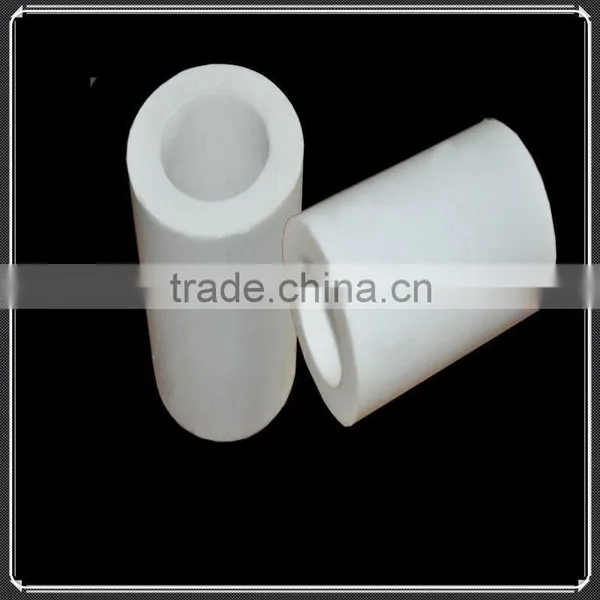

F4 PTFE hollow rod
both 100% virgin PTFE resin and recycled materials available
ptfe extruded capillary tube
outer diameter:0.9mm~30mm
inter diameter:0.5mm~24mm
length: ≤50m
ptfe moulded tube
outer diameter:17mm~500mm
inter diameter:7mm~250mm
length: <=200mm
Specifications
PTFE Rod is extruded and moulded with PTFE fine powder and has good chemical resistance and high electrical
PTFE Rod Characteristic of the products
There are two types of PTFE rod. The rod with diameter of 49mm is made by paste extrusion of dispersion polymerized PTFE resin; There are two kinds of PTFE rods to offer.One is made by ram extruding method is the diameter form 10~50mm;rods over the diameter 50mm are manufactured by moulding.
PTFE has a wide range of practicable temperature from -180-- +250 and a wax-like surface to which anything hardly sticks.PTFE has the lowest coefficieng of friction of all known solid materials.It has the best electrical properties of all plastics.
Use of the products
The electrical insulation used under various kinds of frequency, the seal liner of various kinds of corrosivity medium, Antisticking materials, lubriation material.
Main technical indicator for PTFE TUBE
Property |
Unit |
Index |
Apparent density |
g/cm 3 |
2.102.30 |
Tensile strength (min) |
MPa |
18 |
Ultimate elongation (min) |
% |
230 |
the USAGE on every walk of life
(1) .In chemistry industry : usa as sealing element,pipeline,pipe fitting and hight pure agentia household utensils ect
(2).In machine industry : use as piston ring,guide ring, machine tool guideways ect.
(3).Electrical and Electronic Engineering : use as electric wire,electric cable,electrical condenser film, insulation board ect.
(4).In Construction Trades : use as bridge,tunnel ahead ,large-scale chemical industry pipeline,storage tank supporting bearing slipper.
(5).In light textile and other industry ,because ptfe product have nonstick properties ,it use in spinning,papermaking, foodstuff,rubber,ceramics and so on industry play a mucosa part of sticky or take off
