Specifications
ptfe moulded/extruded tube1.O.D.17mm~500mm
2.inner diameter:7mm-300mm
3.Stretch strength:15Mpa
4.Break elongation 150%

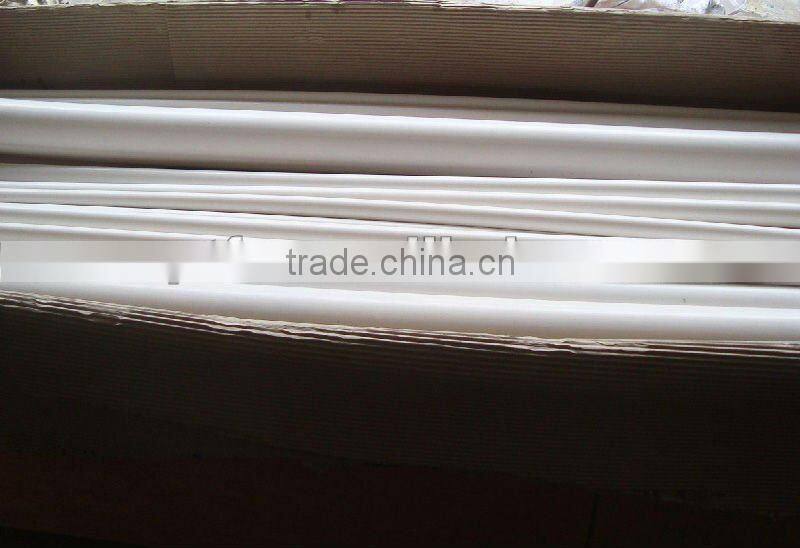

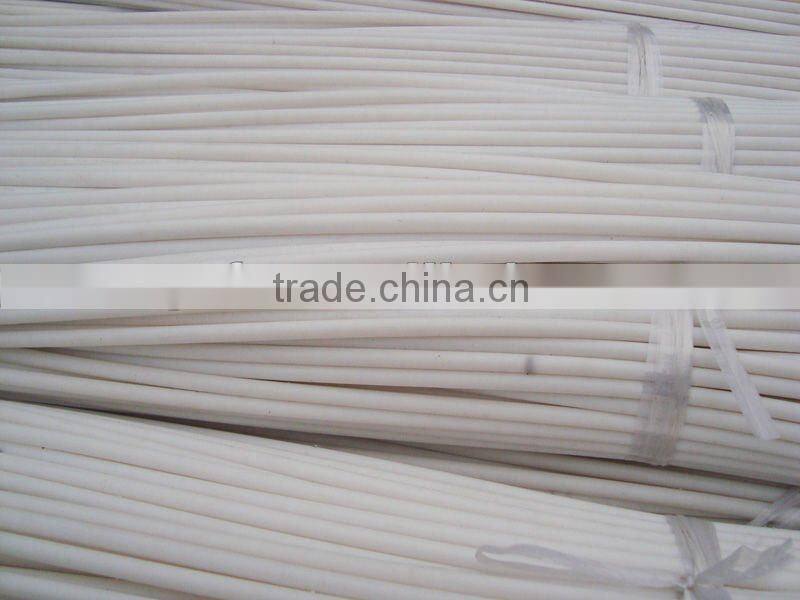

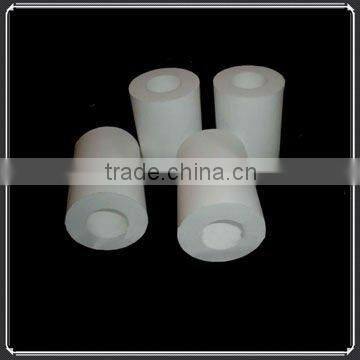

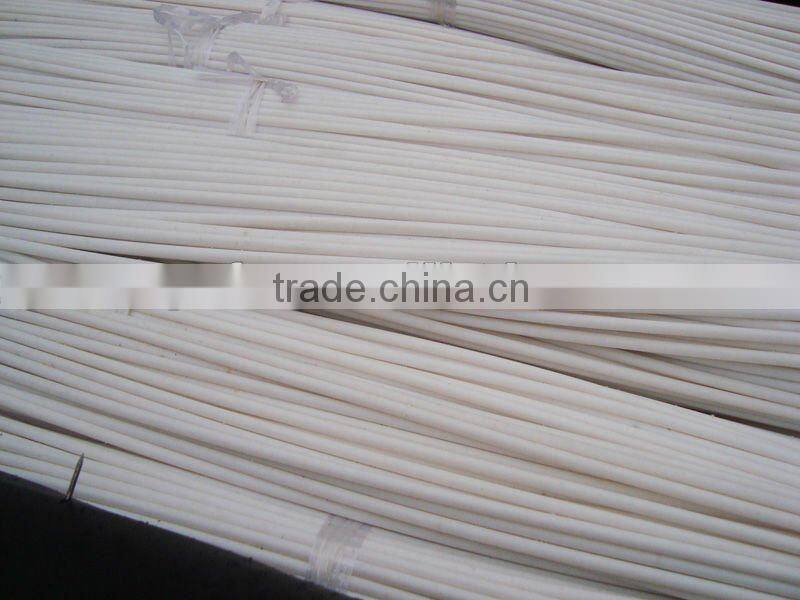

ptfe mouldedextruded tube
1.Main properties:
Special gravity :2.10 ~ 2.30 g/m2
Tensile strength:15.0 MPa
Ultimate elongation :150%
2. Specification
material:100% virgin or recycle
1.O.D.17~500mm
2.inner diameter:7mm-300mm
3.Stretch strength:15Mpa
4.Break elongation rate:150%
Tolerance no minus
3.Chemical properties:
a.aging resistance
b.radiation resistance
c.low permeability
d.high press resistance
e.anti-corrosion,anti-volatilization
f. lubricative
Property |
Unit |
Target value |
specific gravity |
-- |
2.1~2.3 |
Tensile strength (min) |
MPa |
≥15.0 |
Elongation at rupture |
% |
≥150 |

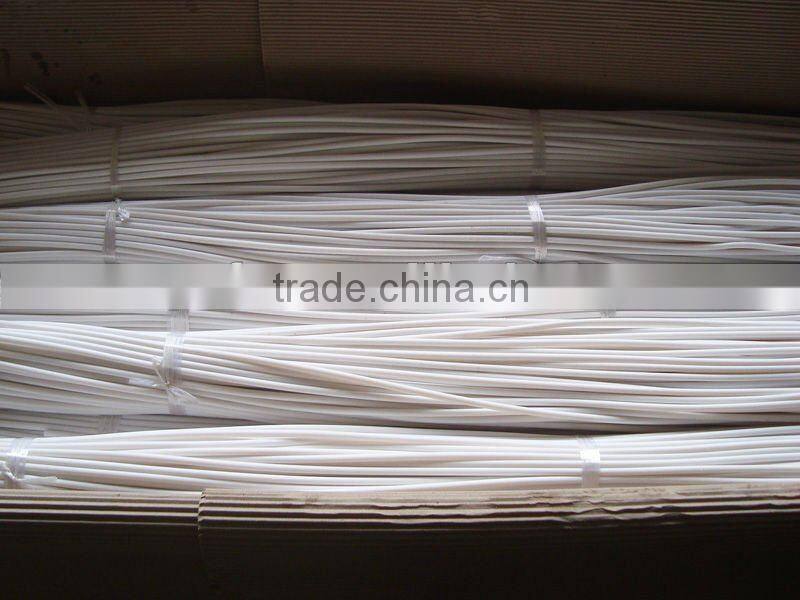

.PTFE teflon capillary tube
tube
1). PTFE teflon tube
outer diameter: 0.9~30mm
inter diameter: 0.5~24mm
lenght :<=50m
Property |
Unit |
SFG-1 target |
SFG-2 target |
Tensile strength (min) |
MPa |
≥2 |
≥15 |
Elongation at rupture |
% |
≥100 |
≥150 |
|
exchange exceed voltage ≥KV |
Thickness 0.2 0.3 0.4 0.5
|
Target value 6 8 10 12
|
|
PTFE (Teflon)
Virgin, or unfilled, PTFE (of which Teflon is a trade name) is widely used due to it's unique combination of properties:
Characteristics:
Outstanding chemical resistance (unmatched by any other plastic)
lowest coefficient of friction of any plastic
superb electrical insulator
high resistance to weathering
wide working temperature range (-180C to +260C)
Typical applications:
Seats
Seals
Insulators
Sleeves and Liners
Bellows
bridge and pipe bearings
Properties (typical):
Colour: White
Density: 2.22 g/cm3
usage
1.In chemistry industry usa as sealing element,pipeline,pipe fitting and hight pure agentia household utensils ect
2.In machine industry use as piston ring,guide ring, machine tool guideways ect.
3.Electrical and Electronic Engineering use as electric wire,electric cable,electrical condenser film, insulation board ect.
4.In Construction Trades use as bridge,tunnel ahead ,large-scale chemical industry pipeline,storage tank supporting bearing slipper.
5.In light textile and other industry ,because ptfe product have nonstick properties ,it use in spinning,papermaking, foodstuff,rubber,ceramics and so on industry play a mucosa part of sticky or take off
we offer above products

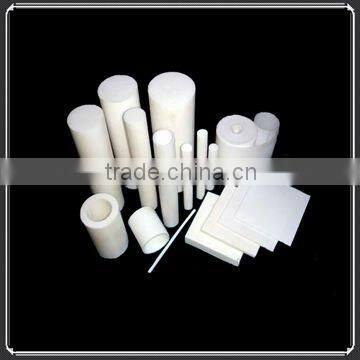

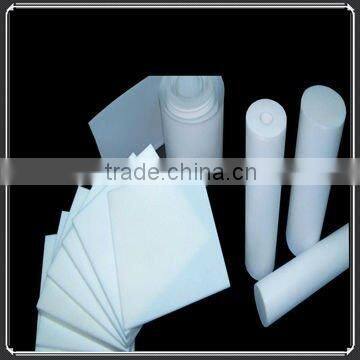

PTFE teflon moulded /skived sheet
PTFE teflon skived film/tape
PTFE teflon moulded/extruded rod
PTFE teflon moulded/extruded tube
PTFE teflon extruded capillary tube
PTFE teflon gasket sealing material
Filled PTFE teflon products
PTFE teflon component
