Specifications
ptfe black tape1.Excellent resistance to solvents and chemicals
2.Fireproofing
3.Good tensile strength
4.Heat resistance

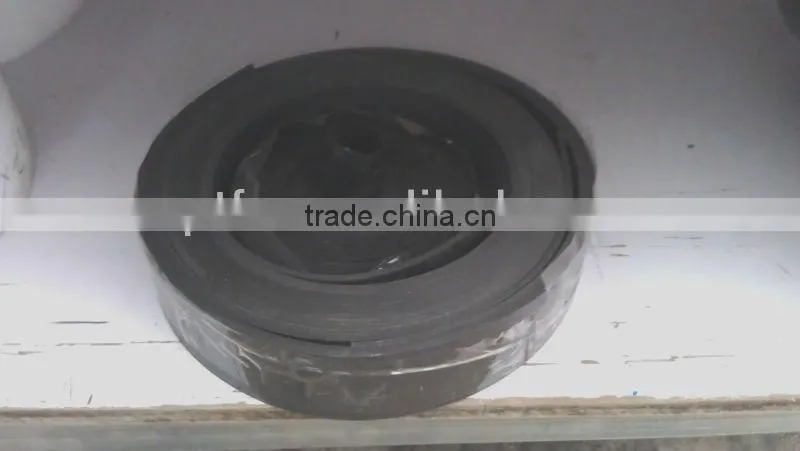

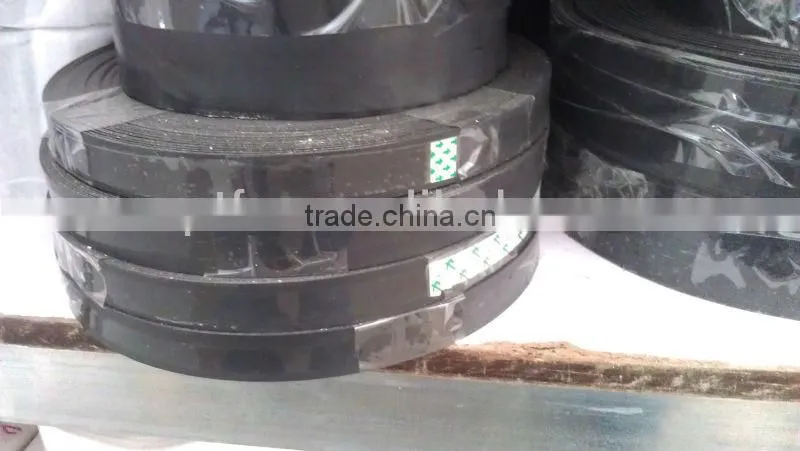

PTFE BLACK TAPE
Main advantages
1.Service temperature -180°C~+250°C.
2.Excellent resistance to solvents and chemicals;
3,Outstanding dielectric properties;
4,Not flammable
5,Extremely smooth non-sticking surface
Ptfe teflon Skived film
1).thickness : 0.1mm
width:10~500mm
length: unlimited
2). thickness : 0.15mm
width: 10~1000mm
length: unlimited
3). thickness : 0.2~0.4mm
width: 10~1200mm
length: unlimited
4). thickness : 0.5~12mm
width:10~1500mm
length: unliminted
Essential color-180oC-260oC(no load), ptfe molded and ptfe skived flim.
surface
homogeneous, smooth without rift, crack, air bubble, and mechanical scratch.
A few exogenous impurity is permitted.
application
all sorts of corrosive medium.
Property |
Unit |
oriented film |
Skived film |
Tensile strength (min) |
MPa |
≥30.0 |
≥10.0 |
Elongation at rupture |
% |
≥30.0 |
≥100.0 |
1MHz dielectric loss tangent≤0.01mm>0.01mm |
|
3.0×104 2.5×104 |
— —
|
1MHz dielectric constant |
|
1.8~2.2 |
—— |
|
Dc breakdown voltage (Normal temperature) |
KV/MM |
200 |
40 |
