12mm Ws2801ic Led String Light Ip65 Dc5v Led Pixel Light Supplier's Choice

12mm Ws2801ic Led String Light Ip65 Dc5v Led Pixel Light Supplier's Choice thumbnail-1
12mm Ws2801ic Led String Light Ip65 Dc5v Led Pixel Light Supplier's Choice thumbnail-2
12mm Ws2801ic Led String Light Ip65 Dc5v Led Pixel Light Supplier's Choice thumbnail-3
12mm Ws2801ic Led String Light Ip65 Dc5v Led Pixel Light Supplier's Choice thumbnail-4
12mm Ws2801ic Led String Light Ip65 Dc5v Led Pixel Light Supplier's Choice thumbnail-5
12mm Ws2801ic Led String Light Ip65 Dc5v Led Pixel Light Supplier's Choice photo-1
12mm Ws2801ic Led String Light Ip65 Dc5v Led Pixel Light Supplier's Choice photo-2
12mm Ws2801ic Led String Light Ip65 Dc5v Led Pixel Light Supplier's Choice photo-3
12mm Ws2801ic Led String Light Ip65 Dc5v Led Pixel Light Supplier's Choice photo-4
12mm Ws2801ic Led String Light Ip65 Dc5v Led Pixel Light Supplier's Choice photo-5
US$ 0.1 - 0.2 MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Epister F8mm Dip led
Input Voltage(V):
DC5V
Lamp Power:
0.3
Contact Supplier Request Quote Chat Now
Shenzhen Kaixinliang Technical Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epister F8mm Dip led
Input Voltage(V) DC5V
Lamp Power 0.3
Lamp Luminous Flux(lm) R:300 G1000 B:300
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, changable
Working Temperature(℃) -30, 40
Working Lifetime(Hour) 50000
Lamp Body Material PVC
IP Rating IP66
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name TS
Model Number TS-P-26
Product Description

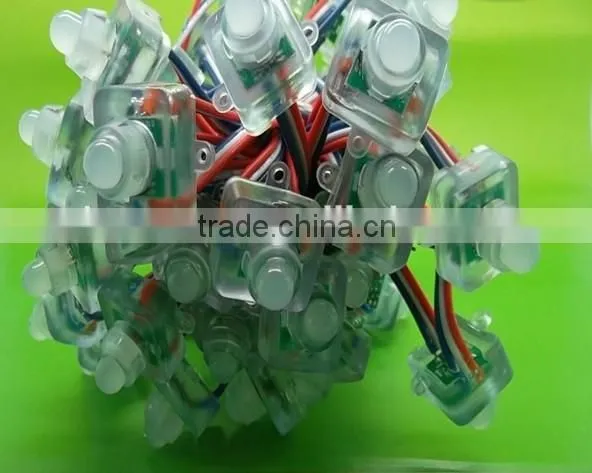

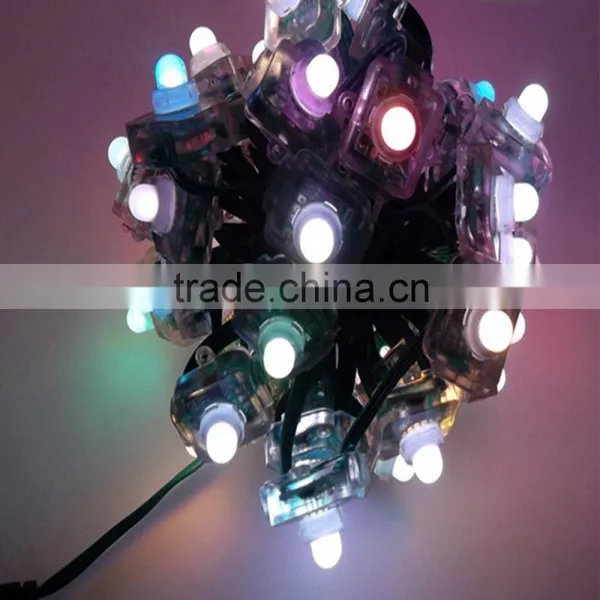

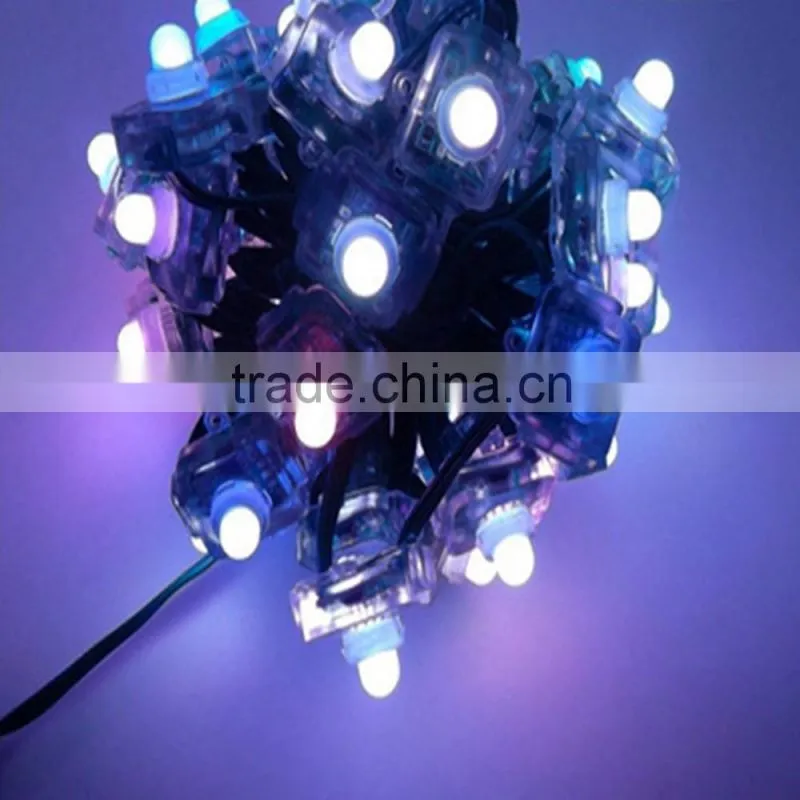

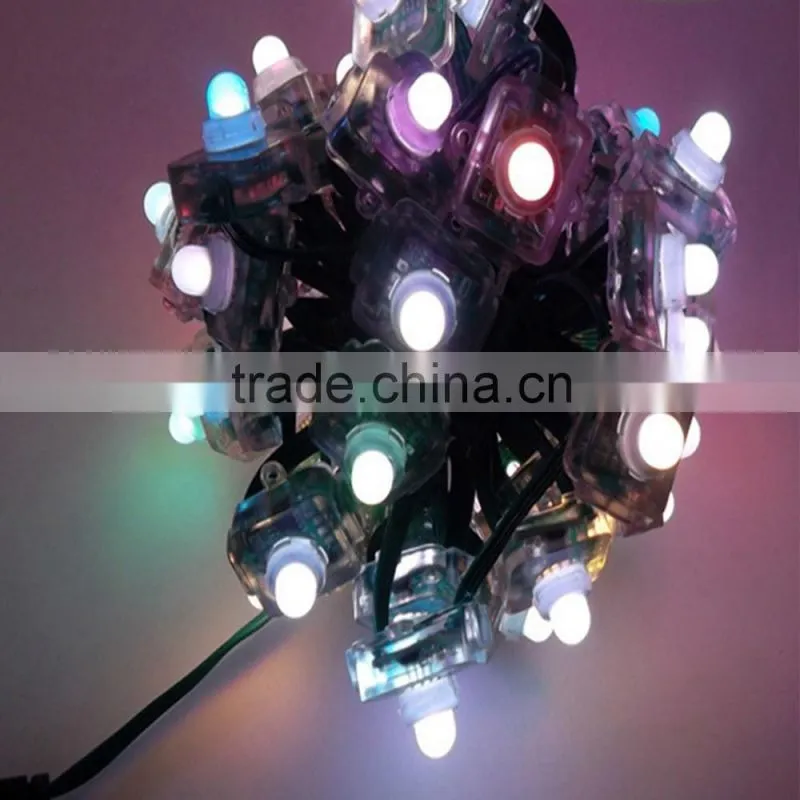

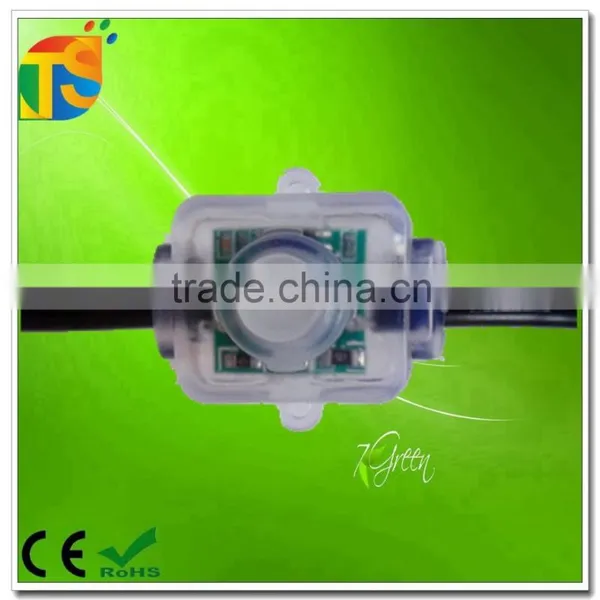

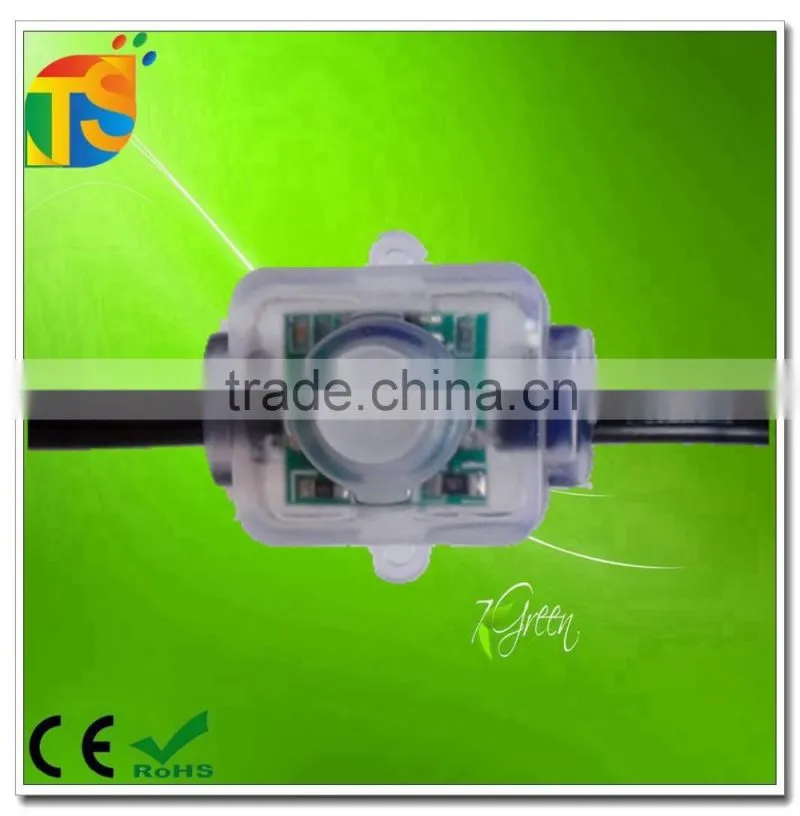

12mm ws2801ic led string light ip65 dc5v led pixel light

1. Individually control: 1PCS LED pixel & 1IC
2. IC chip: can be ws2801, ws2811, ucs1903, sm16716, lpd6803 IC .

3. Waterproof: Yes IP66, with full silicon glue waterproof protection.
4. Installation: Easy to install, you'd better drill the hole with 12mm.
5. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
6. Power supply: You must use a 5V DC power supply to power this pixel, do not use higher than 6V
or you can destroy the entire pixel.
7. Connetors: 3PIN or 4PIN JST female and male connectors.
each led pixel is seperate, you can connect them one by one via male and female connectors easliy.
3PIN: DAT, DC5V+, GND-
4PIN: DAT, CLK, DC5V+, GND
8. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.
9. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing
and scanning etc. depending on the different installation methods may compose different dynamic
effect of different color's character and design

TYPE
3 PIN connectors
4 PIN connectors
IC chip
UCS1903
SM16716, WS2801
Wries
DAT, GND-, DC5V+
DAT, GND-, DC5V+,GND-
Product Name
 12mm square  led piexl
LED chip
Epister  F8mm Dip LED
Waterproof
full  silicon glue
Voltage
DC5v
Watts(/pcs)
0.3w
Warranty
2 years
Certification
CE ,ROHS
Connection way
12mm ws2801ic led string light ip65 dc5v led pixel light
SPI signal: LED Pixels+LED power supply +LED controller
DMX control: LED Pixels+LED pwer supply+DMX Controller+DMX decoder
LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...
(offline control/ PC online control)
LED power suppply: Meanwell power supply, T- series, A- series power supply...
(waterproof / non-waterproof)
