Help CenterPure Skived PTFE Film
Related Products
Specifications
pure skived PTFE filmMOQ: 50Kg
1.Anti-voltage intensity
2.High breakdown voltage
3.A wide range of operation temperature

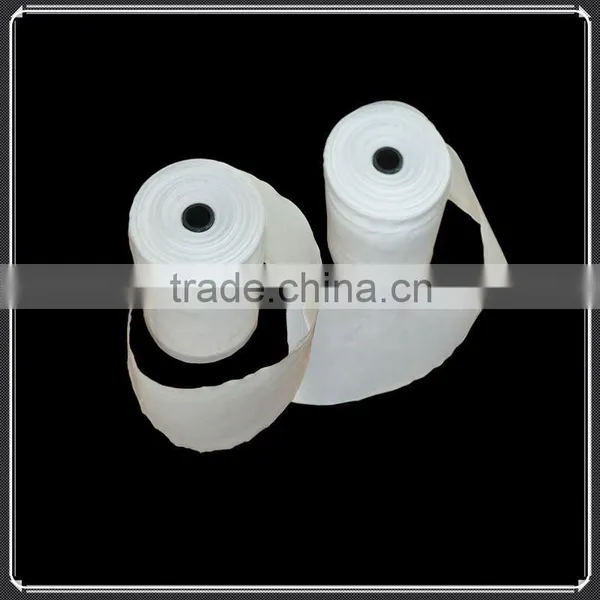

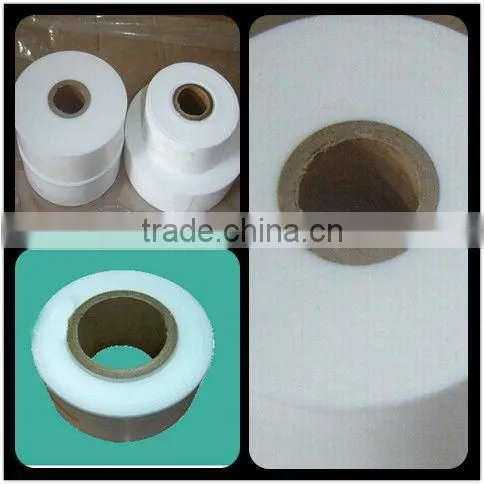

pure skived PTFE film products
Ptfe orientation film is make of PTFE resin through green compact,sinter and skiving ,then through calendar,so the molecular arrangement of PTFE oriented membrane is tighter than other PTFE films,and has more obvious anti-voltage intensity
Application
Lining,sealing and lubricating material and dielectric at any frequency.Wire insulation,electrical instrument insulation,especially in the fields of making capacitors
Property |
Unit |
oriented film |
omnidirectional film |
Tensile strength (min) |
MPa |
≥30.0 |
≥10.0 |
Elongation at rupture |
% |
≥30.0 |
≥100.0 |
|
1MHz dielectric loss tangent≤0.01mm >0.01mm |
|
3.0×104 2.5×104 |
— —
|
1MHz dielectric constant |
|
1.8~2.2 |
—— |
|
Dc breakdown voltage (Normal temperature) |
KV/MM |
200 |
40 |
Specification and permit error
|
Item |
Density |
Tensile strength |
Tear elongation |
Voltage |
|
Unit |
g/cm3 |
Mpa |
% |
KV/mm |
|
Target |
2.10~2.30 |
≥15.0 |
≥150 |
10 |
model |
classify |
Thickness(mm) |
Thickness error(mm) |
Thickness (mm) |
Thickness error(mm) |
Length (mm) |
9201-1 |
oriented |
0.03mm,0.035mm |
±0.002mm |
60,90,120 |
±3.0mm |
≥50mm |
0.04mm,0.045mm |
±0.003mm |
60,90,120 |
||||
0.05mm,0.06mm |
±0.004mm |
60,90,120 |
||||
9201-2 |
oriented |
0.03mm,0.04mm |
±0.003 |
60,90,120 |
±3.0mm |
≥50mm |
0.05mm,0.06mm |
±0.004mm |
60,90,120 |
||||
0.07mm,0.08mm |
±0.005mm |
60,90,120 |
||||
semi-directional |
0.03mm,0.04mm |
±0.003mm |
60,90,120 |
|||
0.05mm,0.06mm,0.07mm |
±0.005mm |
60,90,120 |
||||
0.08mm,0.09mm,0.10mm |
±0.005mm |
60,90,120 |
||||
|
9201-3 9201-4 |
omnidirectional |
0.05mm,0.06mm,0.07mm |
±0.010mm |
60,90,120 |
±2.0mm |
≥50mm |
0.20mm,0.25mm,0.30mm |
±0.02mm |
60,90,120 |
≥20mm |
|||
0.20mm,0.25mm,0.30mm |
±0.03mm |
120,200,250,300 |
±3.0mm |
|||
|
Skived sheet |
0.5mm,1.0mm,1.5mm |
±0.05mm |
120,200,250,300 |
±3.0mm |
≥15mm |
