Help CenterVirgin Ptfe Skived Film
Related Products
Specifications
virgin ptfe skived film1.anti-voltage intensity
2.high breakdown voltage
3.wide range of operation temperature
4.anysize

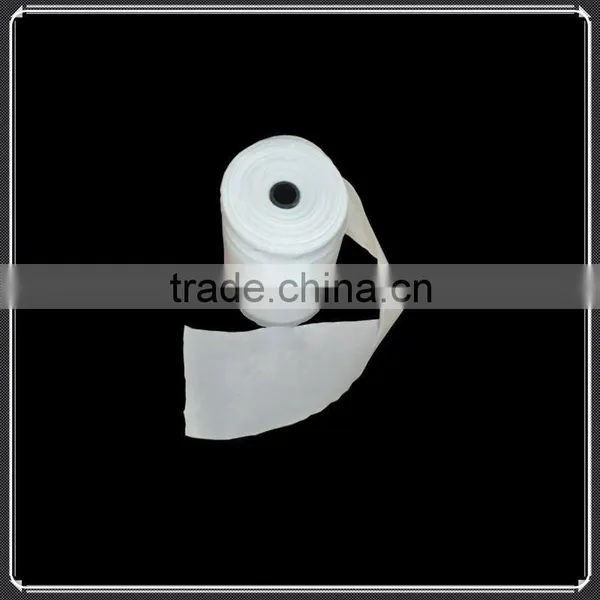

virgin ptfe skived film
Anti-caustic, abrasive resistance
thickness: 0.1-0.5mm
essential color, -180oC-260oC(no load), ptfe molded and ptfe skived flim.
surface: homogeneous, smooth without rift, crack, air bubble, and mechanical scratch.
A few exogenous impurity is permitted.
application: all sorts of corrosive medium.
Property |
Unit |
Skived sheet |
Mould sheet |
specific gravity |
-- |
2.1-2.3 |
2.1-2.3 |
Tensile strength (min) |
MPa |
≥15.0 |
≥15.0 |
Elongation at rupture |
% |
≥150 |
≥30 |
high pressure resistant |
KV/MM |
10 |
-- |
Property |
Unit |
oriented film |
Skived film |
Tensile strength (min) |
MPa |
≥30.0 |
≥10.0 |
Elongation at rupture |
% |
≥30.0 |
≥100.0 |
1MHz dielectric loss tangent≤0.01mm>0.01mm |
|
3.0×104 2.5×104 |
— —
|
1MHz dielectric constant |
|
1.8~2.2 |
—— |
|
Dc breakdown voltage (Normal temperature) |
KV/MM |
200 |
40 |
Now available standard of our PTFE skived film
Thickness(mm) |
Width(mm) |
Length(mm) |
0.1 |
10-500 |
unlimited |
0.15 |
10-1000 |
unlimited |
0.2-0.3 |
10-1200 |
unlimited |
Remark: the thinnest thickness is 0.1mm---0.5mm
