Help CenterExtruded Ptfe Plastic Rod
Related Products
Specifications
extruded ptfe plastic rodboth 100% virgin PTFE resin and recycled materials are available
MOQ:50pcs
payment terms:T/T,WU

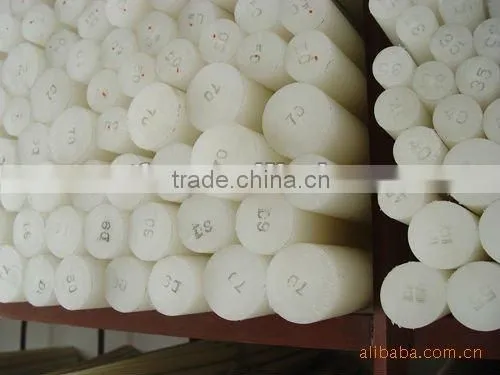

extruded ptfe Plastic rods
There are two types of PTFE rods. The rod with diameter of 4 - 9mm is made by paste extrusion of dispersion polymerized PTFE resin; the rod with diameter of 10 - 50mm is made by ram extruding method, and rods over the diameter 50mm are manufactured by molding.
PTFE has a wide range of practicable temperature from -180 ~ 260°C and a wax-like surface to which anything hardly sticks. PTFE has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.
PTFE extruded rod
Unit:mm
Diameter |
length |
Φ5~Φ90 |
100~6000 |
Φ100~Φ140 |
100~6000 |
Φ150~Φ200 |
100~6000 |
We also offer
PTFE moulde rod
diameter: 6~330mm
length: <=200mm
density:2.22g/cm3
virgin, recycled, filled ptfe teflon moulded rod are vailable
size according to customers' need
Property |
Unit |
Target value |
specific gravity |
-- |
2.1~2.3 |
Tensile strength (min) |
MPa |
≥14.0 |
Elongation at rupture |
% |
≥140 |
virgin, recycled, filled ptfe teflon moulded rod are vailable
size according to customers' need
PTFE
Virgin, or unfilled, PTFE is widely used due to it's unique combination of properties:
Characteristics:
Outstanding chemical resistance (unmatched by any other plastic)
lowest coefficient of friction of any plastic
superb electrical insulator
high resistance to weathering
wide working temperature range (-180C to +260C)
Typical applications:
Seats
Seals
Insulators
Sleeves and Liners
Bellows
bridge and pipe bearings
Properties (typical):
Colour: White
Density: 2.3 g/cm3
usage
1.In chemistry industry usa as sealing element,pipeline,pipe fitting and hight pure agentia household utensils ect
2.In machine industry use as piston ring,guide ring, machine tool guideways ect.
3.Electrical and Electronic Engineering use as electric wire,electric cable,electrical condenser film, insulation board ect.
4.In Construction Trades use as bridge,tunnel ahead ,large-scale chemical industry pipeline,storage tank supporting bearing slipper.
5.In light textile and other industry ,because ptfe product have nonstick properties ,it use in spinning,papermaking, foodstuff,rubber,ceramics and so on industry play a mucosa part of sticky or take off
we offer above products
PTFE moulded /skived sheet
PTFE skived film/tape
PTFE moulded/extruded rod
PTFE moulded/extruded tube
PTFE extruded capillary tube
PTFE gasket sealing material
Filled PTFE products
PTFE component
our Production equipment
Molding machine,
Sintering furnace,
Turning machine,
Directional machine
