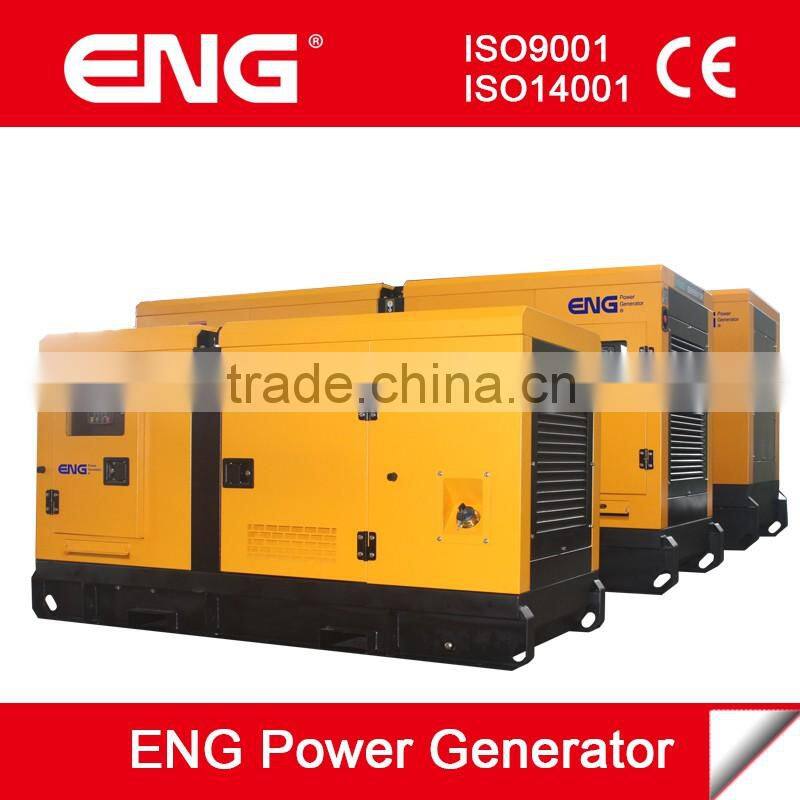

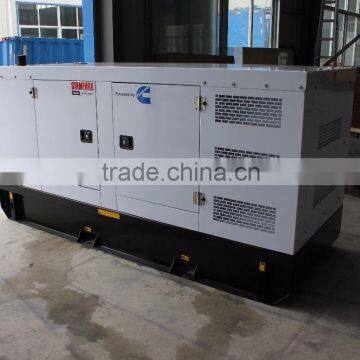

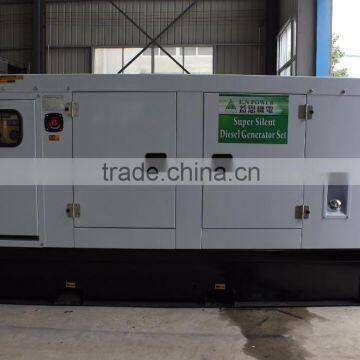

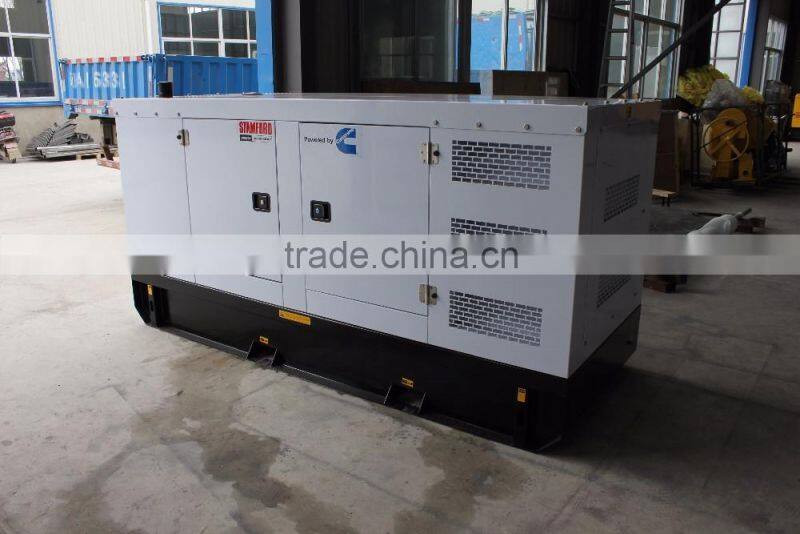

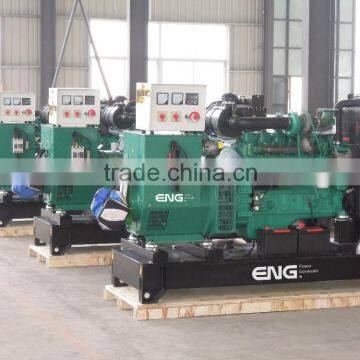

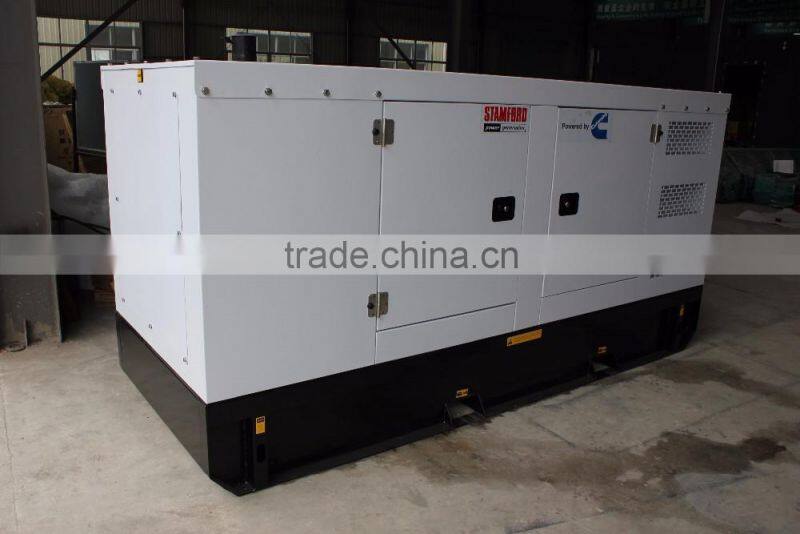

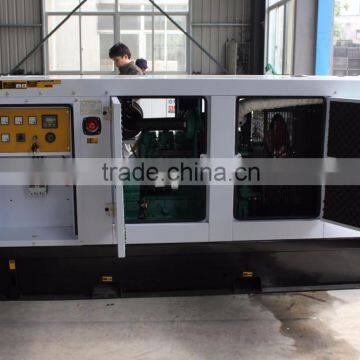

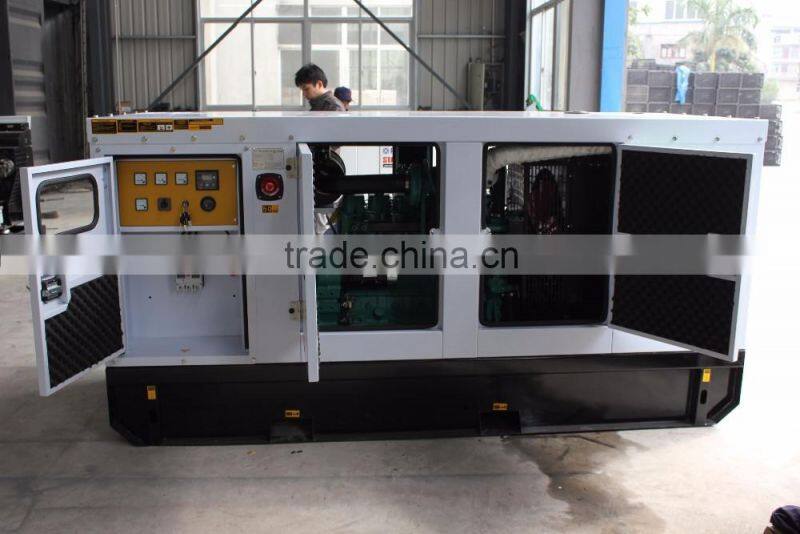

High performance 60HZ 75KW generator with Cummins engine 6BT5.9-G1

Genset  specification

Genset Model

ENSC93S-3

Prime Power(60HZ)

75KW /93KVA

Standby Power(60HZ)

82KW /102KVA

Frequency/Speed

60Hz/1800rpm

Standard Voltage

230V/400V

Voltage Available

220V/380V

Phases

Three phases, four wires

Engine Specification General Performance

Manufacturer:

Dongfeng Cummins Engine Co. Ltd.

Engine Model:

6BT5.9-G1

Engine Type:

4 stroke,  in-line, 6-cylinder

Engine Speed:

1800 r.p.m

Prime Power:

99kw /135HP

Standby Power:

106kw /144HP

Governor Type:

mechanical

Air Intake Way:

Turbocharged

Displacement:

5.9L

Cylinder Bore * Stroke:

102mm × 120mm

Compression Ratio:

17:3:1

Coolant Capacity Engine Only

9.9Liters

Alternator data

Engine Model:

Stamford  UCDI224F

Phase

3 Phase

Power Factor

0.8

Drip Proof

IP 23

Insulation class

H

Voltage regulation

± 0,5 %

Altitude

≤ 1000 m

Over speed

2250 min -1

Genset Standard Configuration

♦ Assembled by Cummins diesel engine and world famous brand alternator
♦ Radiator and fan with safety guard
♦ Automatic control panel and electricity output switch cabinet
♦ Float battery charger and solenoid switch as standard supply scope
♦ Built-in shock pad
♦ Heavy duty steel as base frame and 6-8hrs operation base fuel tank.(suit for 8kva-750kva)
♦ Optional voltage rank: 230V/400V, 220V/380V, 127V/220V, 240V/480V etc.

Our Commitment

♦ Products and services all comply with ISO8528 and GB/T2820 manufacturing standards.

♦ Management is implemented in strict accordance with ISO9001 Quality Management System and ISO14001Environmental Management System.
♦ All products are CE-certified.
♦ All products have passed rigorous factory test to ensure high quality.
♦ Product warranty terms are strictly enforced.
♦ High-efficiency assembly and production lines ensure on-time delivery.
♦ Professional, timely, thoughtful and dedicated services are offered.
♦ Favorable and complete original accessories are supplied.
♦ Regular and irregular technical training are provided all year round.
♦ 24/7/365 Customer Service Center provides fast and effective responses to customers’ service demands.

Engine Manual and Catalogue

More choose:

Powered by Cummins series power range from 20kva-1500kva.

Welcome inquiry to us, EN Power sales team will send our proposal to your immediately.

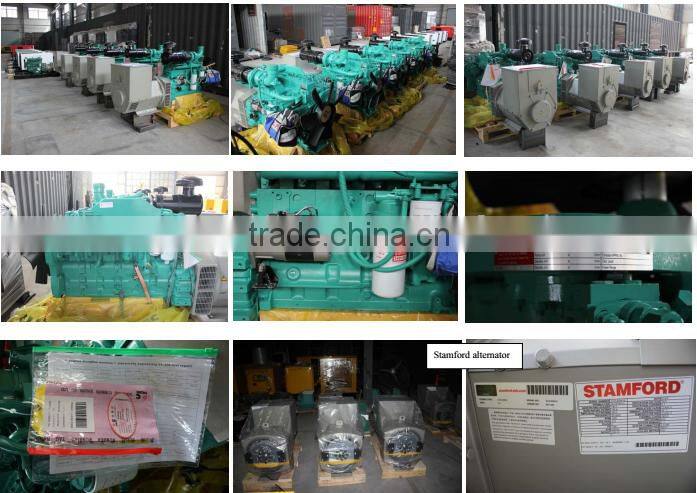

Our Project reference

FAQ(Frequently Asked Question):

1.What is your warranty period?

 Our warranty period is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.

2.Does your generator have global warranty?

 Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.

3.Can you accept OEM?

 Yes, we can accept OEM.

4.What is your payment terms?

We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.

5.What is your delivery time?

Our normal delivery time is 2 to 5 weeks. But if your order is some special engine and alternator, then the delivery time is longer.
