8-38KW 1500 Rpm 3PHASE Diesel Generator Power by Yangdong Engine

8-38KW 1500 Rpm 3PHASE Diesel Generator Power by Yangdong Engine thumbnail-1
8-38KW 1500 Rpm 3PHASE Diesel Generator Power by Yangdong Engine photo-1
US$ 999 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
1500 rpm
Model Number:
ENY
Contact Supplier Request Quote Chat Now
Fuzhou E.N Electrical Motor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FuZhou Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name 1500 rpm
Model Number ENY
Output Type AC Three Phase
Speed 1500rpm/1800rpm
Frequency 50HZ/60HZ
Rated Power from 10KVA to 30KVA
Rated Voltage 230V/480V,277V/480V
Rated Current opotional

   8kw-30KW  1500 rpm 3PHASE diesel generator power by Yangdong engine  power by Yangdong engine



E.N POWER Diesel Generator Set

Engine data

Genset Model

EN Super Smart and Low Noise Diesel Genertor

Rated Power (kw)

8--20

Generator

Frequency (Hz)

50/60

Rated voltage

440V/254V , 400 / 230V, 380 / 220, 240 / 120

Power Factor

0.8/1

Noise level

66db ( 7 meters away)

Engine

Model

China Laidong  (8kw—16kw)

China Yangdong

(20kw)

Cooling System

Closed Water Cooling

Starting method

Electric Start

Alternator

Brand

Brushless Alternator

Power factor

0.8/1

Phase)

3-phase, 4-wire

Connection:

Y or other type connection

Voltage regulation:

AVR

Rated speed:

1,500rpm / 1,800rpm

Protection class:

IP 22 or IP23

Excitation:

harmonic excitation or phase compound or brushless

1.0% voltage regulation (max.) in static conditions

Dimension

Overall dimensions (L×W×H)(mm)

1500*75* 75 (8kw—16kw)

1600*75* 75

(20kw)

Control panel:





The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer syste)

Standard Accessories  :



1) Vibration absorber between engine ,alternator and base frame

2) 12V battery with battery cables and rack , battery charger

3)  Standard radiator mounted on skid

4) Circuit breaker

5) Industry silencer with flanged flexible connection and piping

6) 12 hours fuel tank

7) Tool kit bag

8) English operation / maintenance manuals





Engine Features:

1. engine : Yangdong

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily



Alternator Features:

1. Genuine Stamford, Leroy Somer, Marathon, Engga alternator (option)

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof



Soundproof/Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 10 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA



Control Panel:

1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop



Optional:

1. Trailer type

2. Soundproof / water proof

3. ATS (automatic transfer switch)

4. Parallel system

5. Remote system



Our Advantages:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers’ request

3. Polyester varnish for appearance protecting for shining and raining

4. Two hours testing before out factory

5. ISO9001 and CE certification

8-38KW 1500 rpm 3PHASE diesel generator power by Yangdong engine8-38KW 1500 rpm 3PHASE diesel generator power by Yangdong engine

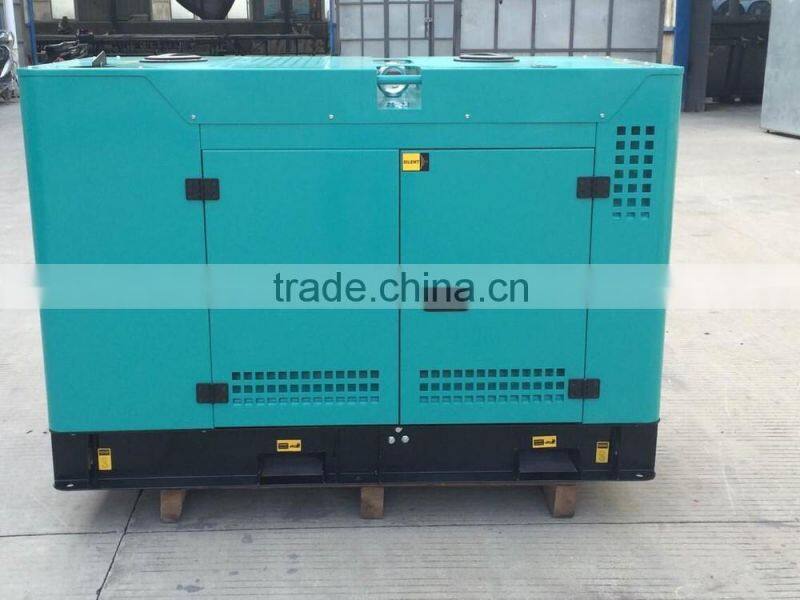

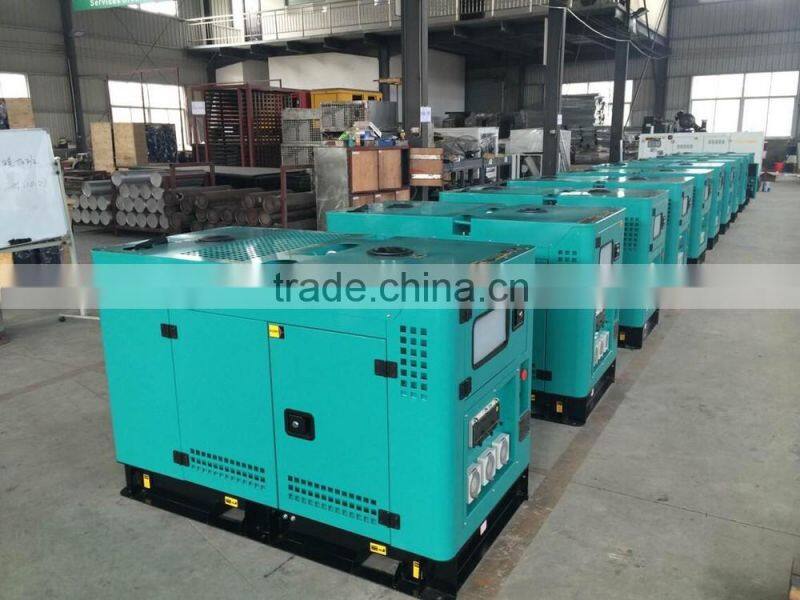

Diesel generator set picture

8-38KW 1500 rpm 3PHASE diesel generator power by Yangdong engine8-38KW 1500 rpm 3PHASE diesel generator power by Yangdong engine



 8-38KW 1500 rpm 3PHASE diesel generator power by Yangdong engine8-38KW 1500 rpm 3PHASE diesel generator power by Yangdong engine



Product Package





 8-38KW 1500 rpm 3PHASE diesel generator power by Yangdong engine





Professional proposal will be sumbit after get your requirments.



So, anything alin can do for you,pls contact me freely



Your satisfied is my biggest happiness



Pls call:0086-15359748200



Or send me mail directly



Alin Yang always here service for you
