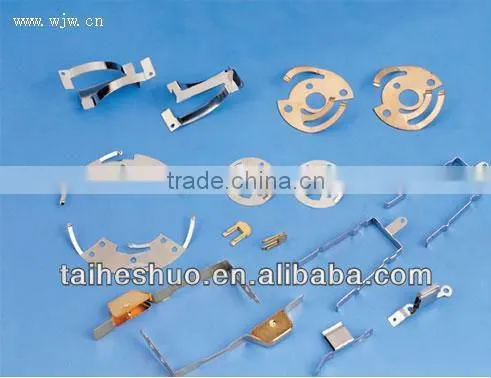

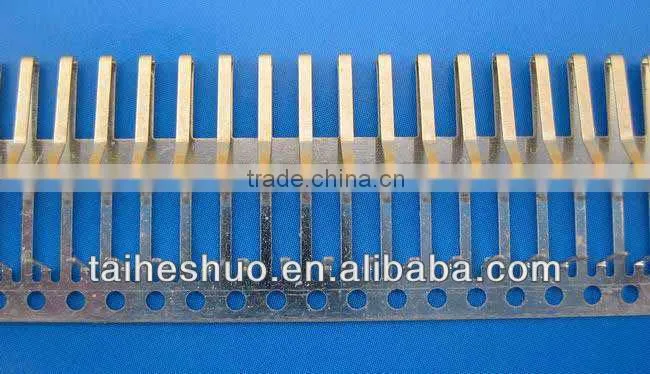

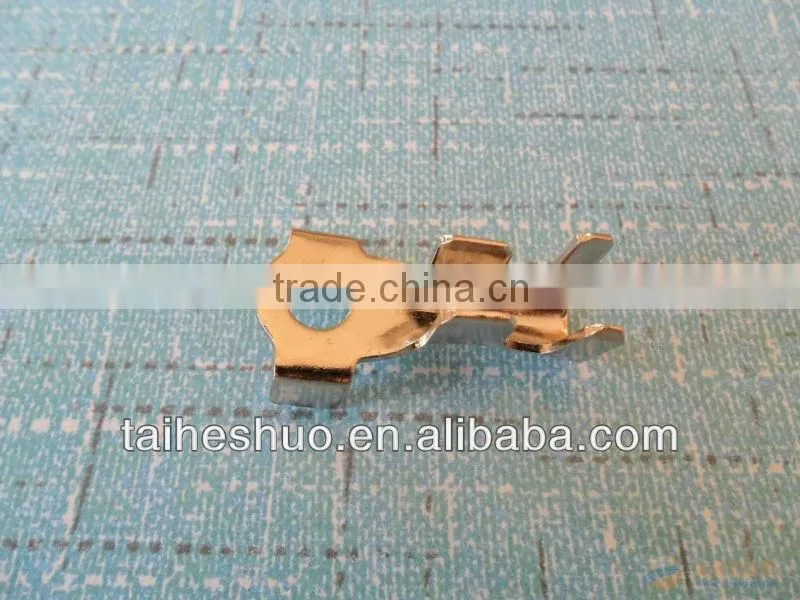

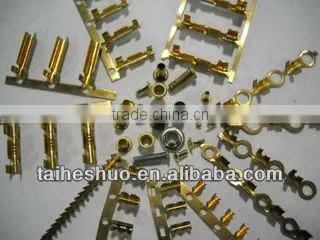

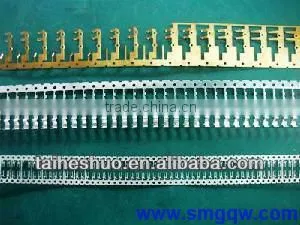

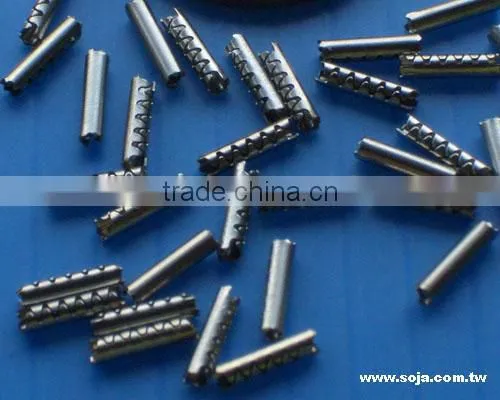

Stamping Part From Direct Factory

NO

workflow

person in   charge

1

Drawing   issued and inquiry

customer

2

Drawingand   quotation information recieved

sales department

3

Design   review and process assessment

engineering   department

4

the   offer

sales department

5

customer   assessment

customer

6

Tooling   orders issued and a formal product drawings provided

customer

7

Tooling nesting Figure proposed

engineering department

8

customer   assessment

customer

8

Tooling   design, processing and prototyping

engineering   department

9

Sample

engineering   department

10

Sample   recognition and the issue of recognition of book

customer

11

product   orders issued by

customer

12

raw   materials purchasing

materials department

13

stamping

production   department

14

process   inspection

QC department

15

Tapping,   cleaning, electroplating, electrophoresis

production   department

16

packaging

production   department

17

shipment   inspection

QC department

18

Transport

Transporting   department
