Help CenterThreaded Brass Insert
Related Products
Specifications
threaded brass insert , brass knurled insert , blind thread insertmaterial : brass
finish : plain
color: yellow
threaded brass insert , brass knurled insert , blind thread insert
1.material : brass
2.finish : plain
lor: yellow
4. certificate : ISO9001:2000
ply with ROHS
threaded brass insert
This insert nut has knurling in the same direction and is mainly used for thermoset plastics.
With the heat insertion, the unidirectional knurling reduces stress on plastics.
This is particularly advantageous, for example, when there is not enough clearance from the edge of the boss.
Major insertion methods
Heat Insertion, Cold Insertion
Material
Brass Aluminum alloy(made to order) Stainless steel(made to order)
Plastic
Thermoplasticsand thermoset plastics
Features
1. Inserts suitable for thermoset plastics
2.Mounting only by press-insertion
3.Less pressure on plastics and usable for heat insertion
4.Full compliance with RoHS Directive

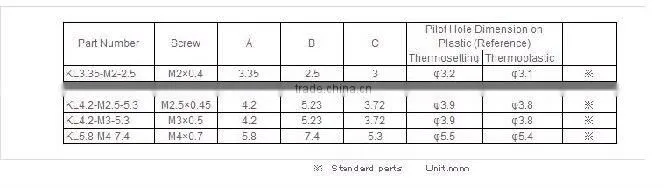

Dimensions
Note
Number of ridges: Two on the KL3.35-M2-5 and KL3.3-M2-4.1
Please contact us if you need Pb-free material for environmental reasons.
Pilot hole diameters are for reference only. The diameter should be determined by testing before use.
Please contact us about the knurling design when Knife Locks are used for polycarbonate (PC) and other materials which are sensitive to residual stress.
The diameter of the pilot hole for the mounting object should be smaller than the outer diameter of the insert (Dimension A).
When inserts are tightened by screws, choose the screw length so that screws do not reach the bottom of insert pilot holes.
Be careful when using a Knife Lock with a thermo-setting resin. threading the part will be tight, depending on the diameter of the pilot hole that is selected.
The specifications are subject to change without notice.
Please contact us if you have any other questions.
