1. High-strength
2. API Standard
Designed and manufactured in accordance with API7-1 standard.
3. Excellent Cost Performance
As an original manufacturer, we are sure that we can supply the tool you need in most reasonable price.
Major technical parameters and dimensions:
Model |
OD of washover pipe |
ID of washover pipe |
Wall thickness |
Min well bore |
Max. size of washover pipe |
Max tensile load kN |
Joint yield torque N·m |
Sealing pressure MPa |
mm | ||||||||
TXG 193.68-9.53 |
193.68 |
174.63 |
9.53 |
212.73 |
168.28 |
700 |
31183 |
15 |
TXG 193.68-12.7 |
193.68 |
168.28 |
12.7 |
212.73 |
161.93 |
1060 |
43386 |
15 |
TXG 206.38-9.4 |
206.38 |
187.58 |
9.4 |
215.9 |
177.8 |
830 |
32539 |
15 |
TXG 244.48-11.99 |
244.48 |
220.5 |
11.99 |
266.7 |
212.73 |
1460 |
67791 |
15 |
TXG 146.05-9 |
146.05 |
128.05 |
9 |
161.93 |
120.65 |
560 |
16269 |
20 |
TXG 177.80-9.19 |
177.8 |
159.42 |
9.19 |
200.03 |
152.4 |
640 |
24404 |
15 |
TXG 203.20-9.53 |
203.2 |
184.15 |
9.53 |
215.9 |
177 |
820 |
32539 |
15 |
TXG 219.07-12.7 |
219.07 |
193.67 |
12.7 |
244.48 |
184.15 |
1220 |
54232 |
15 |

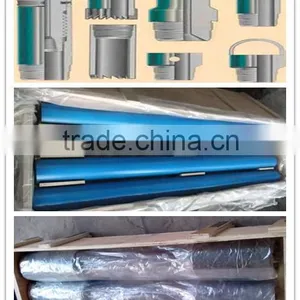

Washover pipe accessories:
Drive Sub
Drive Subs provide the crossover connection between fishing string and the washover pipe. Each is machined from high-grade alloy steel and heat treated to provide maximum strength and durability.
Lift Plug
Lift Plug is designed to provide an economical method of handling washover strings. It is available in all thread types and size, has sufficient shoulder diameter to support handling the washover string.
Washover Safety Joint
Washover safety joint is manufactured to provide safe and easy release and make-up whenever disengagement from the washover string becomes necessary. This dependable, field-tough tool is designed to transmit torque in either direction when placed in the washover string.
Rotary Shoes
Rotary Shoe are manufactured from specially heat treated alloy to provide the ultimate in toughness and durability. They are used to cut a clearance between the fish and the wall of the well bore.
