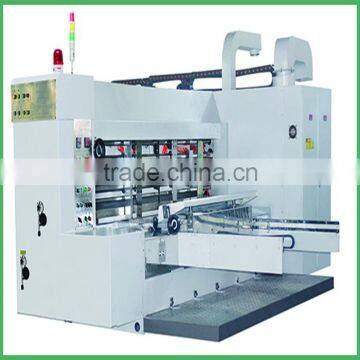

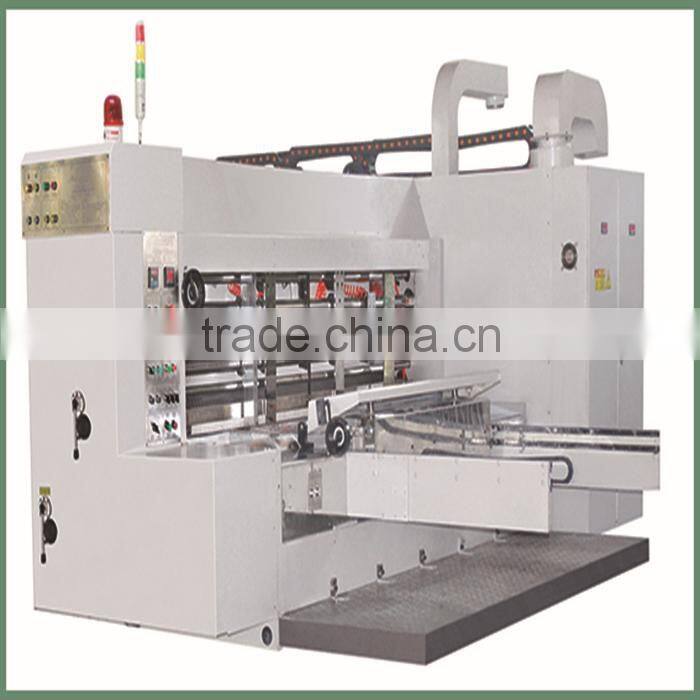

print machinery/grooving machien/die cutting machine for hot sale
Product Features:
1.Lead edge feed syatem
2.YVF main motor
3.Motorized setting & adjusting
4.Scram button ensure safely
5.Electronic counter easy to set production quantity
6.Spray-cycle gear lubrication
7.Automatic cycle transmit water-based ink
8.Carburzing & hard surfacing alloy steel main drive gear
9.Quality steel rollers,surface with hard chromium plating,high tenacity of shaft with dynamic balance correction
10.Selectable touch screen operation
11.Selectable vibrating machine & auto stacker
Product Features:
1.Lead edge feeder system,with suction blower & dust blower,feed sheets perfectly
2.Row by row double feeder roimprove the accuracy of feeding sheets
3.Baffles motorized drive left & right,separately or together
4.Adjust the blowing rate of suction blower by frequency control of motor speed
5.Skip feeding function to feed bigger size sheets
6.Air suction dust removal devices,can improve the quality of printing,reduce the number of washing printing plate

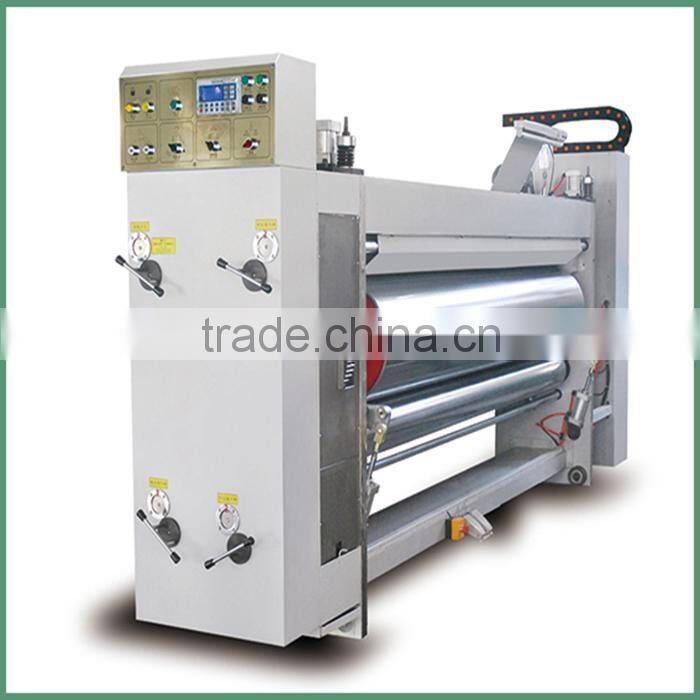

Printing Unit:
1.Printing plate can be either hitched or stuck on the printing roll,footswitch can offer help
2.Rubber roll is made up of seamless steel tube surface covered with abrasive rubber,is good to transfer ink
3.Anilox roll is metallic roll (can choose ceramic roll),delayed function,working together with feeder unit system,up/down automatically in order
4.Phase adjustment by motor,digital display & memory function
5.Printing roll drive left & right motorized,range ±10mm
6.Electromagnetic lock for phase position,air lock for each two units
7.Pneumatic diaphragm pump automatic cycle for ink,alarm ring if abnormal inking & feeding automatically if lack of ink

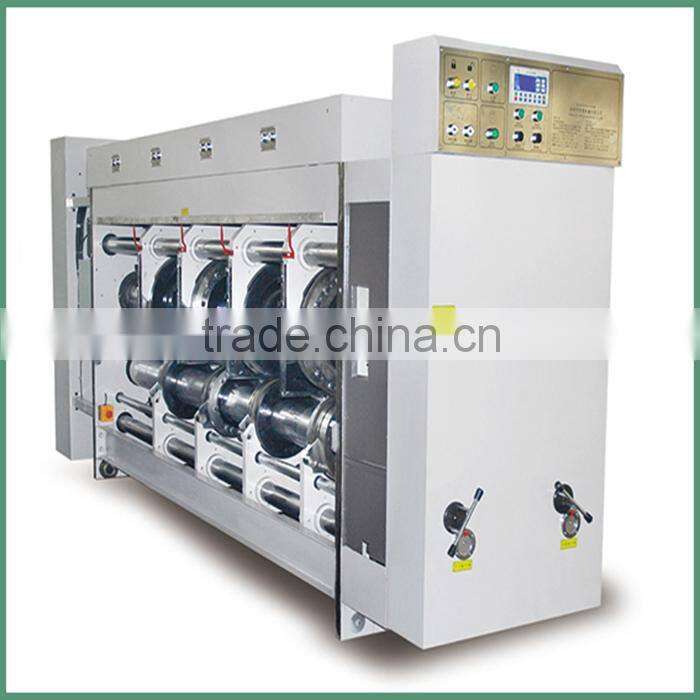

Slotting unit
1.Pre-creaser roll,creaser roll and slotter roll through second grinding,more smoothly when axial movement
2.Slotting knife & pre-creaser/creaser wheel move left/right synchronously by motor,sustained by lead screw
3.Carton height adjustment by motor(or computer),4 slotting knives be adjusted synchronously
4.Phase adjustment by motor,digital display & memory function
5.Electromagnetic lock for phase position ,air lock for each two units

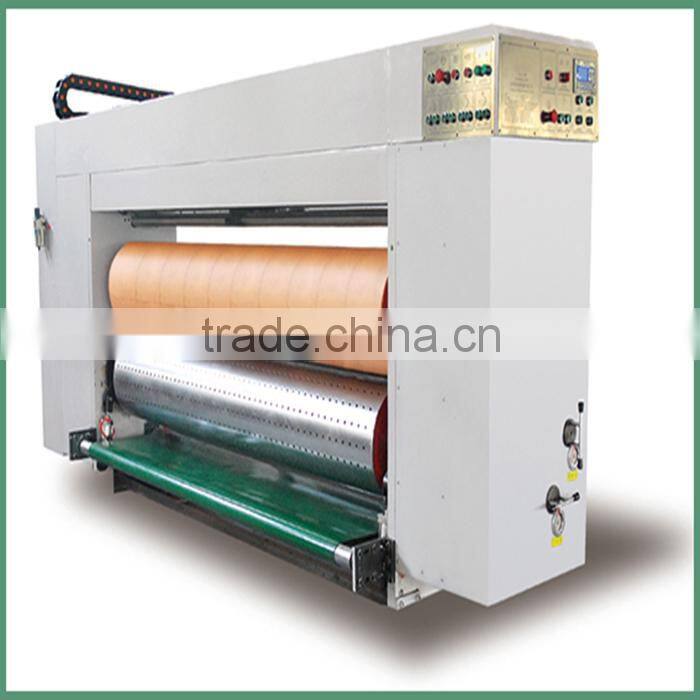

Cutter unit
1.Upper roll covered with high grade rubber & rubber is detachable and replaceable
2.Upper roll move left/right,by mechanical control,range-40~+40mm
3.Under cutting roll phase,motorized digital display,range 360 degree;move left/right,motorized,digital display,range-10~+10mm
4.Upper roll up/down automatically & by motor,can set the range in advance
5.Speed difference compensation device,make sure the speed is same
6.Motorized grinding(repairer)anvil cover
7.Electromagnetic lock for phase position,air lock for each two units

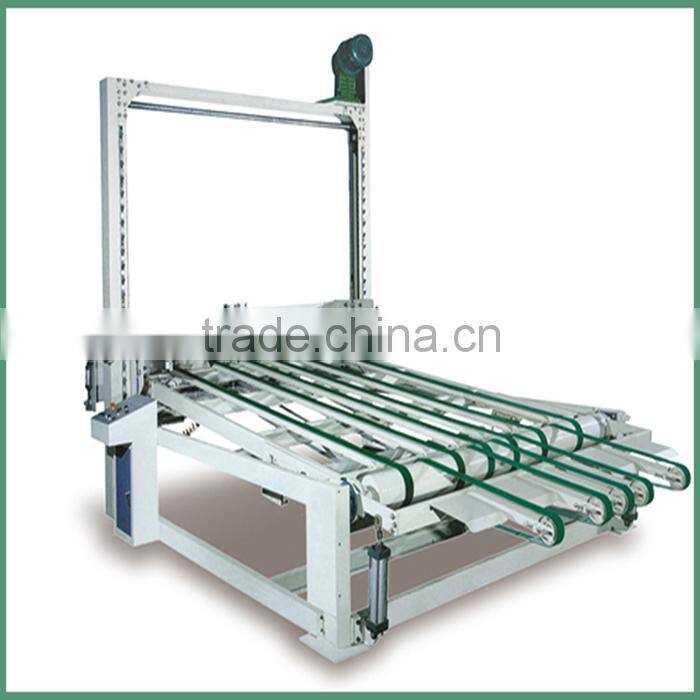

Piling Unit :
1.Control box on the connection arms
2.Connection arms can be operated manually or automatically
3.Stacked height is up to 1700mm
4.Convey or bed's height auto or manual adjusted according to stacked height
5.Selectable vibrating machine & auto stacker(get rid of waste before stacking)

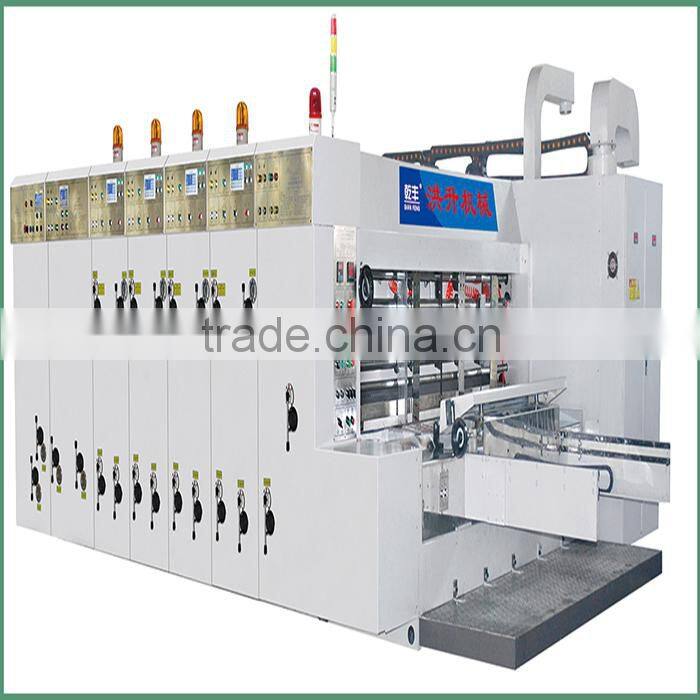

ZSYK seeies of flexo printing slotting die cutter machinery (lead edge feeding)
Technology Parameter:
| Model | ZSYK400-2400 | ZSYK400-2600 |
| Max.speed (sheet/min) | 200 | 180 |
| Max.feeding size (mm) (BXA) | 1200*2500 | 1200*2500 |
| Min.feeding size (mm) (BXA) | 320*600 | 320*600 |
| Max.printing size (mm) (BXA) | 1200*2400 | 1200*2300 |
| skip feeding (mm) | 1500*2400 | 1500*2500 |
| Standard printing plate thickness (mm) | 7.2 | 7.2 |
| Min.slotting distnce (frontal knife)(mm) | 130*130*130*130 | 130*130*130*130 |
| Min.slotting distnce (back knife)(mm) | 230*60*230*60 | 230*60*230*60 |
| Max.depth(F) (mm) | 400 | 400 |
ZSYK seeies of flexo printing slotting die cutter machinery (lead edge feeding)
Our Workshop
ZSYK seeies of flexo printing slotting die cutter machinery (lead edge feeding)
1.One year overall warranty with free supply of spare parts.
2. Supply of spare parts at low (cost) price out of warranty.
3. Free training in our company
4. 12 hours on-line service, free support technically
5. Well-adjusted machine before delivery, with operation manuals and disc.
6. Quick response for on site overseas service requests
Dongguang County Hongsheng Carton Machinery Factory is a well-known enterprise engaged in the professional production of various kinds of carton machines. Over the past two decades, we have introduced advanced technology at home and abroad and have developed a series of products. Our products are popular with customers.
Our products are complete in specification and model, and can meet the needs of different users. Our main products are corrugated board production lines, ordinary printing presses, high-speed printing presses, single facers, thin blade machines, and rotary die-cutting machines. In the spirit of "excellence and continuous pursuit of perfection", on the basis of "ensuring quality and service", we pay more attention to corporate reputation and always adhere to the "reputation first" principle. Our factory implements a comprehensive quality management system. Our elegant appearance, meticulous process, reasonable price and perfect after-sales service have won praises among many business clients worldwide.
We have the development and design ability and a perfect quality assurance system, perfect technology, complete mechanical equipment, highly specialized talents, strong technical strength, advanced inspection methods, and a complete management system. We are responsible for the revitalization of Chinese carton machinery to cooperate wholeheartedly with the vast numbers of users. We will constantly improve product quality and after-sales service to meet the needs of users.
1.What’s the product range?
Corrugated carton making production line ,such as Perfect glue binder, paper cutter, Roll laminator, coator machine and some small office equipment.
2.Are you a manufacture?
Yes, we are specilized in producing corrugated carton production line machine.
3.What is the minimum quantity for order?
5 pcs or 10000 USD for order.
4.Do you have stock product to sell?
Maybe , It’s depend on which machine ,you like?
5.How do you ship the finished products?
By Sea
By Plane
By courier, TNT , DHL, Fedex, UPS Etc
6.What’s the Payment term?
Payment term: T/T before shipment, L/C or Moneygram.
We accept payment via the Paypal /Western union/TT, you can choose as you like.
7.What’s the delivery time?
Within 30 days after get the payment
If you are interested in our products, please feel free to contact us.
Welcome to vist our factory at any time!
