3W RGB Led Driver 220V Input Directly

3W RGB Led Driver 220V Input Directly thumbnail-1
3W RGB Led Driver 220V Input Directly photo-1
US$ 1 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
soluxled
Model Number:
HG-2203
Contact Supplier Request Quote Chat Now
Jianghai Soluxled Lighting Electron Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name soluxled
Model Number HG-2203
Output Power 1 - 50W
Output Type Single
Size 126*35*16
Weight 60
Input Voltage 220VAC
Output Voltage RGB
Type DC/AC Inverters
Output Frequency 50HZ
Output Current 320MA/620MA

Specifications

1*RGB*1W RGB led driver ,protections:short circuit,over load,over voltage,over temperature.OEM is welcome!!!



Detail pictures:

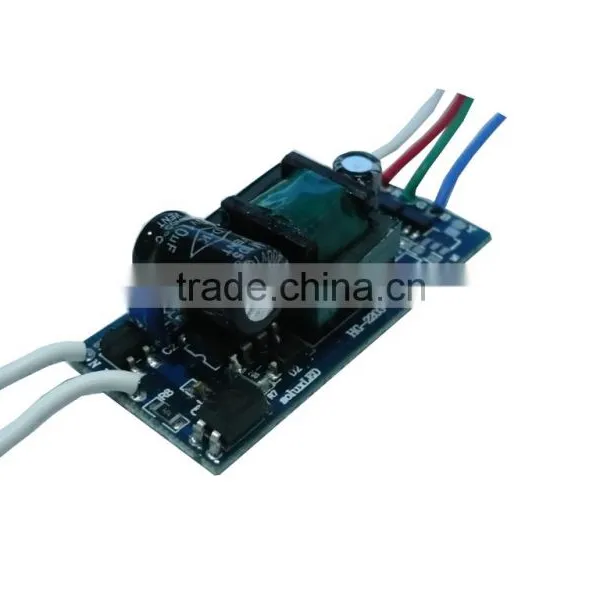

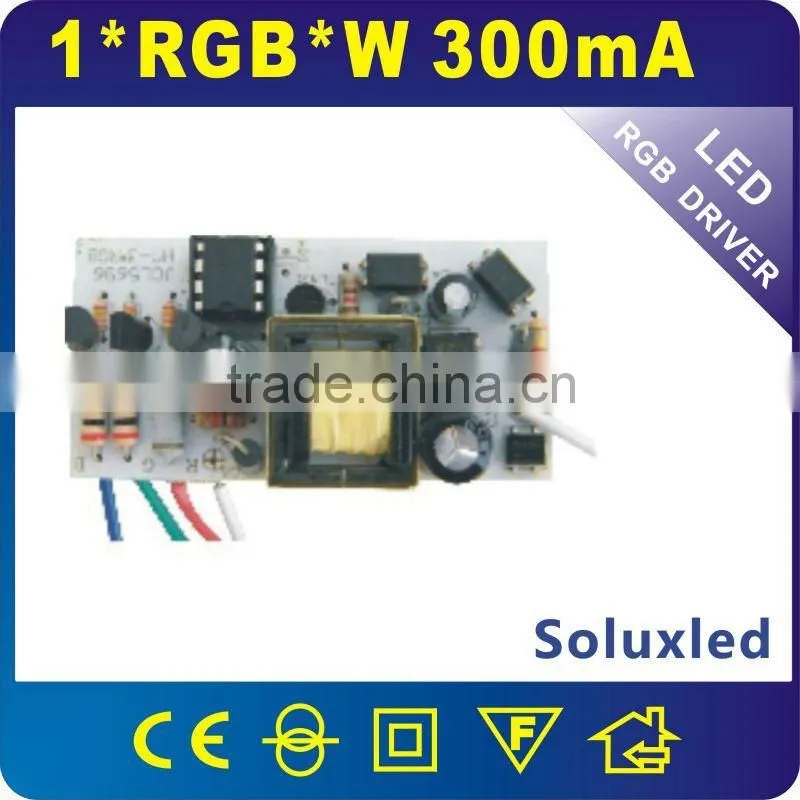

 3W RGB led driver 220V input directly

Product code: HG-2203

Brand

SOLUXLED

type

RGB driver

Watt

1*RGB*1W=3w

efficiency

88%

input voltage

AC90-260

output voltage

9-12(V)

output current

280mA±5%

prower Factor

PF>0.65

load regulation

2(%)

voltage regulation

2(%)

Output

current

accuracy

5(%)

Modulation mode

Jumping+gradient

size

200*30*20mm

protection

Short circuit

broken circuit

Automatic overload protection





  Typical Application:

A.   Constant current LED control module connected Schematic diagram



 3W RGB led driver 220V input directly

note:1,Using common anode connection




Packing:



 3W RGB led driver 220V input directly



Product characteristics:

² Constant current;

² without flicker;

² Low heat,high efficiency;

² Large selection of the parameter, long working-time;

² Using the high frequency low resistance electrolysis with 8000 hours , excellent quality and stable performance.

² passing 100% aging test, high reliability;

² With the production of Short circuit,broken circuit,Automatic overload protection,more safety  more  stable.



Output characteristics:

Ø type:RGB

Ø watt:1*RGB*1W

Ø voltage:

Ø current:300mA

Ø ripple:2Vp-p

Ø Output groups:3



Working temperature:-30°C ~ +65°C



Certification:CQC , CE



Quality guarantee:

ü All the driver have automatic protection of overload, short circuit, temperature,etc.

ü Guarantee:1.The warranty period is 1-2 years.,

                 2.During the time ,if the product have any question ,we can change the same

                   to you.

ü We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.

Notes:

u If you want a waterproof driver,the size and price could be negotiated. The glue is the safe silica  gel(hight heat dissipation. The thermal conductivity is 0.78/M.K)

u Payment::L/C,T/T,Western union,Money grame,Ali-pay, etc.,





 3W RGB led driver 220V input directly
