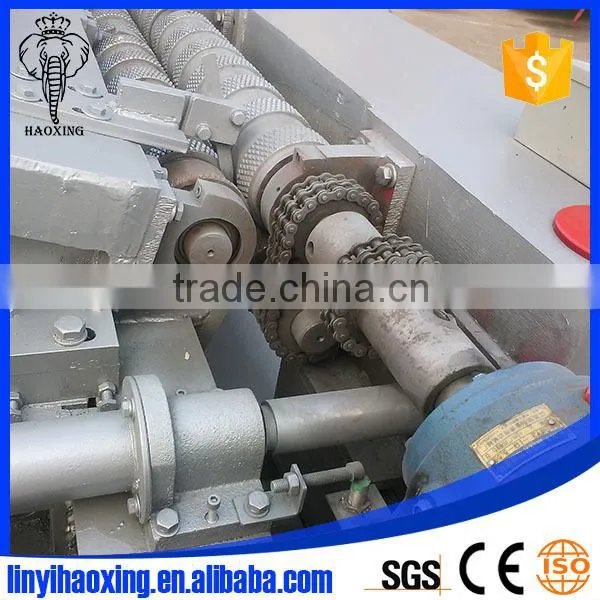

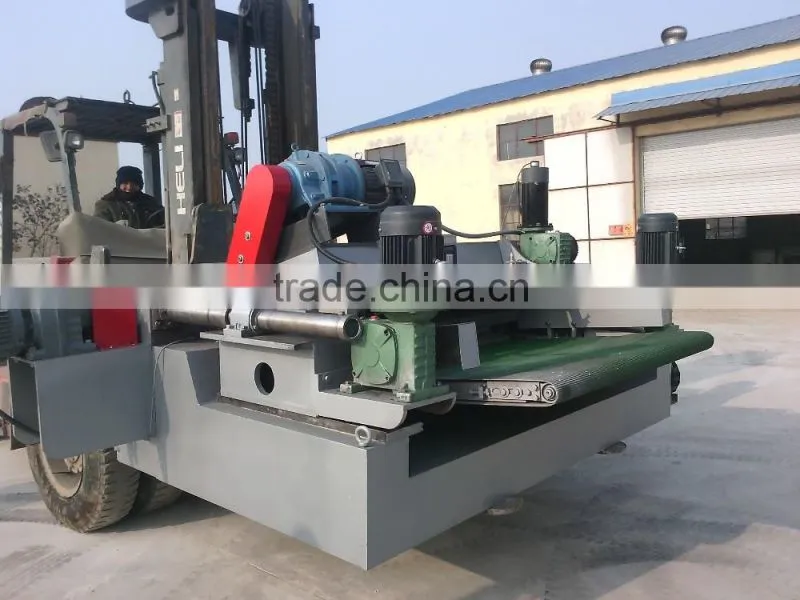

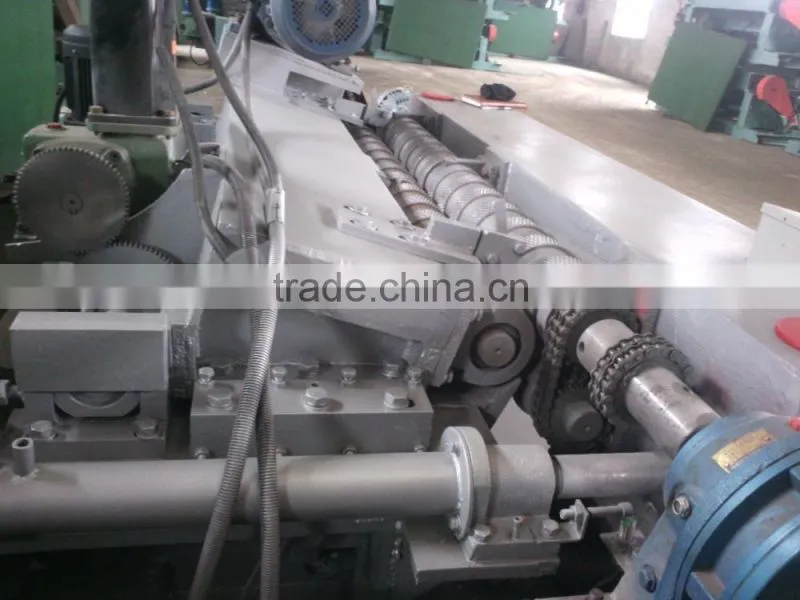

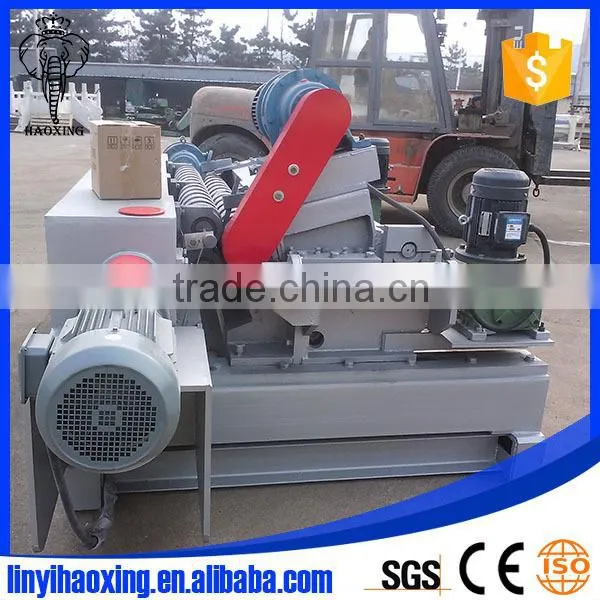

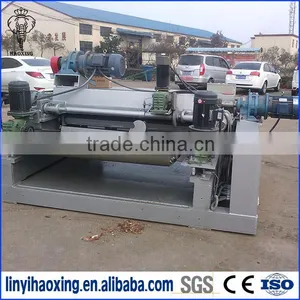

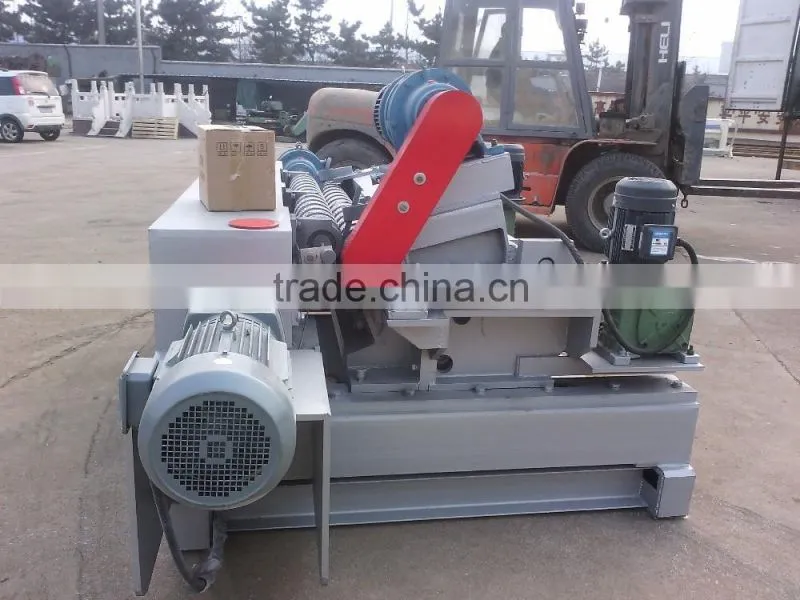

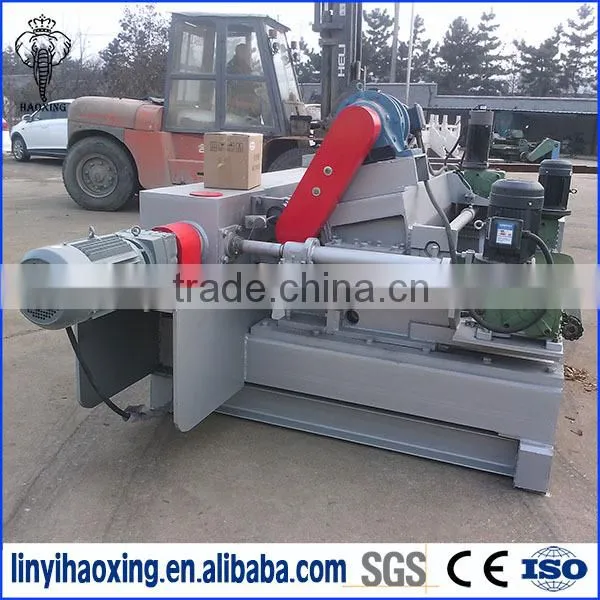

8ft mechanical Spindle veneer peeling machine face veneer peeling lathe
Model |
WKZ-500 |
Log dimension processing (D*L) |
500*1400 mm |
Veneer thickness range |
0.3-4.0mm |
Rotary knife specification (L*W*T) |
1400*130*12.7 mm |
The smallest diameter core |
26 mm |
Wire speed of friction roller |
38m/minute |
Diameter of friction roller |
150mm |
Reference output |
20-30m3/day |
Power detail |
380V-50Hz 3phase |
Roller engine |
2pcs * 5.5kw |
Feeding engine |
1pc * 5.5kw |
Rotary clipper engine |
2pcs * 2.2kw |
Cutting working width |
500-2000mm |
The thickness of clipping veneer |
0.3-4.0mm |
Feeding speed |
0-100m/minute |
Product dimension (L*W*H) |
3800*2100*1400mm |
Weight |
4.5 tons |

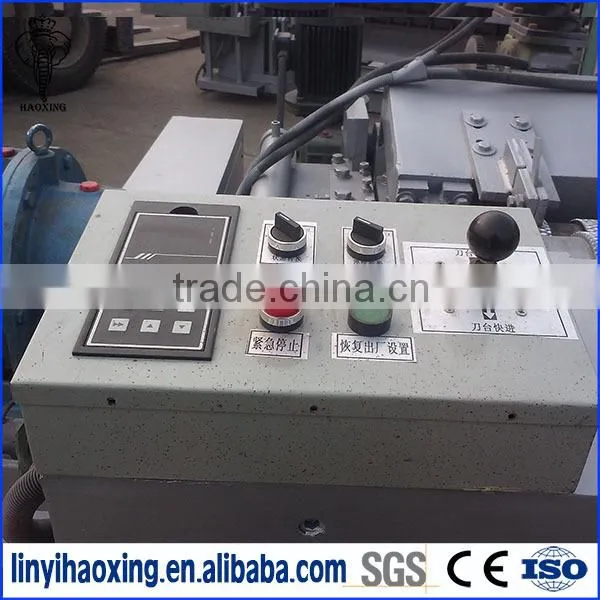

1. This product has digital control system; high strength wear-resistant; stable rear axle rotation system; rotating single box automatically adjust the cutter joint system.
2.Its stable structure can be suitable for wood, eucalyptus, maple, pine wood.
3.The integrated structure improves the space utilization rate, reduces the workers quantity.
4.Automatic adjustment of cutting system, make the skin more smooth, uniform. The large diameter wood veneer.
5.This machine with auxiliary device for round, can keep the whole standard tail plate.
We will stay in line for above 14 hours, so any questions about the products we can reply in detail, when off line, please send us emails, we will reply ASAP.
